Poppet Valve - CF

Pneumatic Angle Valve - CF Flange

Pneumatic Angle Valve - CF Flange

HV Series - Viton seal at bonnet

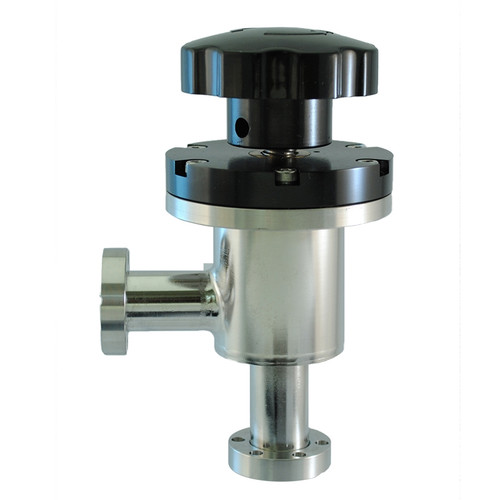

Manual Angle Valve - CF Flange

Manual Angle Valve - CF Flange
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  std cc/sec He
  • Bake temperature:  120 oC
  • Seal material: Viton

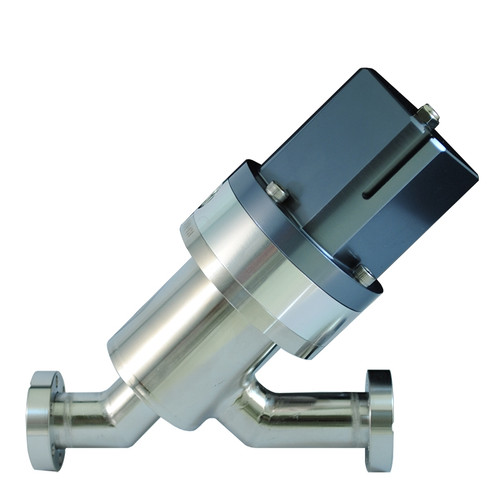

Pneumatic In-Line Valve - CF Flange

Pneumatic In-Line Valve - CF Flange
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  std cc/sec He
  • Bake temperature:  120 oC
  • Seal material: Viton
  • Position indicator:  24 VDC or 120 VAC

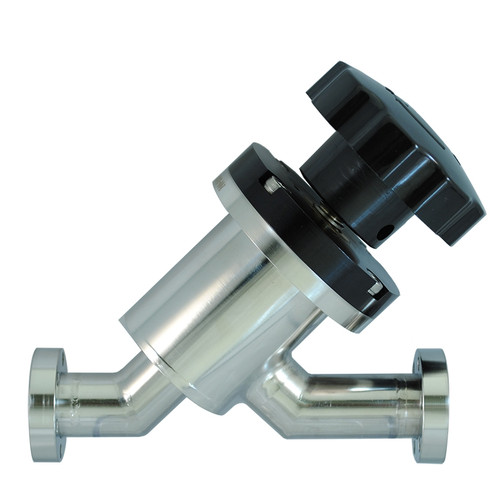

Manual In-Line Valve - CF Flange

Manual In-Line Valve - CF Flange
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  std cc/sec He
  • Bake temperature:  120 oC
  • Seal material: Viton

Z-Style Manual Valve - CF Flange

Z-Style Manual Valve - CF Flange
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  std cc/sec He
  • Bake temperature:  120 oC
  • Seal material: Viton
  • Position indicator:  24 VDC or 120 VAC

Pneumatic Angle Valve - CF Flange, UHV

Pneumatic Angle Valve - CF Flange, UHV
avp-cf-d.jpg UHV Series - Copper seal at bonnet

Manual Angle Valve - CF Flange UHV

Manual Angle Valve - CF Flange UHV
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  std cc/sec He
  • Bake temperature:  120 oC
  • Seal material: Copper Gasket

Pneumatic In-Line Valve - CF Flange UHV

Pneumatic In-Line Valve - CF Flange UHV
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  std cc/sec He
  • Bake temperature:  120 oC
  • Seal material: Copper Gasket
  • Position indicator:  24 VDC or 120 VAC

Manual In-Line Valve - CF Flange UHV

Manual In-Line Valve - CF Flange UHV
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9  std cc/sec He
  • Bake temperature:  120 oC
  • Seal material: Copper Gasket
