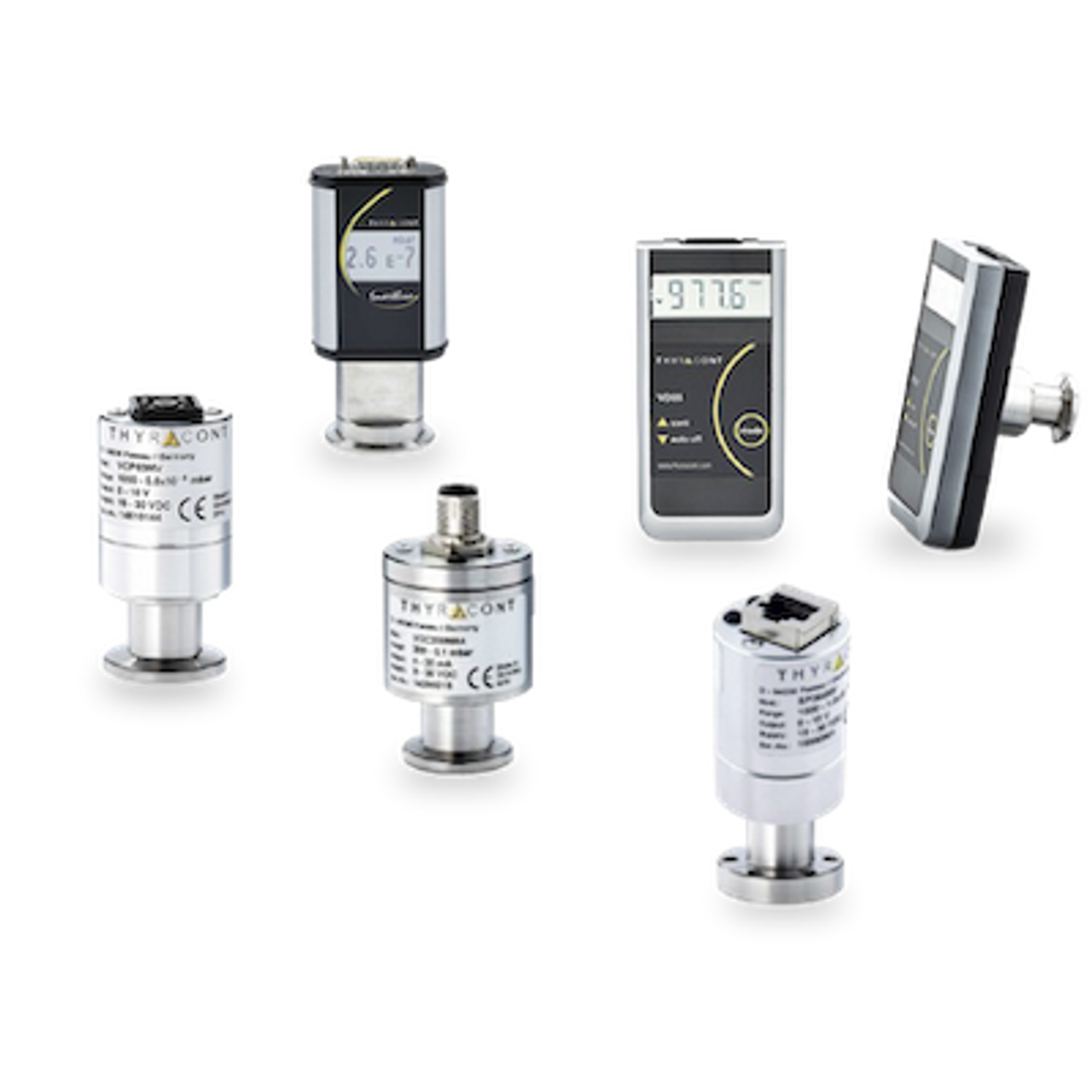

Vacuum Gauge



Digital Compact Vacuum Meters / Data Loggers



Over 40 years in development and manufacturing of innovative vacuum instrumentation

**All Thyracont products are CE marked and carry a 2 year warranty

  • Digital Compact Vacuum Meters/ Data Loggers
  • User friendly handy vacuum measurement instrument
  • Operation with 9V battery or external power supply
  • Internal memory and USB interface for data export
  • VacuGraph software available for data analysis
  • Measurement range varies by instrument
  • Some measure as high as 1600 mBar while others as low as 5 E-4 mbar

Application: Maintenance and service of vacuum pump and system, Laboratory and research, plant engineering

Photo Model Description Price Pre-order Online
vd81.jpg VD81 1600-1 mbar, with data logger Send RFQ more-details-button.jpg
 vd83.jpg VD83 100- 5e-4 mbar, with data logger Send RFQ more-details-button.jpg
 vd84.jpg VD84 100- 1e-3 mbar, with data logger Send RFQ more-details-button.jpg
 vd85.jpg VD85 1200- 5e-4 mbar, with data logger Send RFQ more-details-button.jpg



Accessary:  cable,  battery,  protective case,  VacuGraph software



Smartline Vacuum Transducers



Wide range transducers of smartline family measure from atomospheric pressure to ultrahigh vacuum. Large LCD screen avaialbe for data display.

VSP63 Pulsed Pirani transducer

  • Measures from atmospheric pressure to 1 X 10-4 Torr
  • 0-10V analog output
  • Simple push button to adjust zero pressure and atmospheric pressure

Applications: Freeze Drier Chambers, Vacuum Loadlocks, Vacuum Distillation, Vacuum Pump Monitoring, Leak Detectors, Vacuum Forelines

** All smartline transducers can operate independently or with VD9 or VD10 Digital Controller.

VSM72 Pulsed Pirani & Inverted Magnetron cold cathode sensors

  • Measures from atmospheric pressure to 5 X 10-9 Torr
  • Two independent, dry replay switch points, RS485 and 0-10V analog output
  • Capable to change gas correction factor
  • Digital output can be transmitted up to 1640 feet

Applications: Vacuum Furnaces & Ovens, Thin Film Deposition Systems, Gas Laser Manufacture, Low-e Glass Coating System

VSH82 Pulsed Pirani & dual filament Bayard-Alpert ionization sensors

  • Measures from atmospheric pressure to 1 x 10-10 Torr
  • Two independent, dry replay switch points, RS485 and 0-10V analog output
  • Capable to change gas correction factor
  • Digital output can be transmitted up to 1640 feet

Applications: Ion Beam Etch & Deposition, Optical Coating, Particle Accelerators,  Vacuum Glove Boxes, Freeze Drying, House Vacuum Systems

Photo Model Description Price Pre-order Online
vsp63d.jpg  VSP63D Piezo/pirani,  1200- 1e-4 mbar send RFQ more-details-button.jpg
 vsh88d.jpg VSH88D Pirani/hot cathode,  1000- 5e-10mbar send RFQ more-details-button.jpg



Available:  Any flange style,  display



Analogline Transducer



VCC 200  capacitance vacuum sensor

  • Measures from 150 Torr to 0.1 Torr, 200mbar to 0.1 mbar (=hPa)
  • Signal output 4-20 mA (two wire)
  • Independent of gas type
  • Resistant to dirt and insensitive to contamination

Applications: Vacuum Insulations, Packing Machines, Medical Technology,  Chemical Process Engineering, Evacuation and Filling

VSC43 Piezo resistive sensor with Viton sealing

  • Measures from 1050 Torr to 1 Torr, 1400mbar to 1mbar (=hPa)
  • Single output, 4-20mA (two wire) or 1-8 V (three wire)
  • Independent of gas type
  • Resistant to dirt and insensitive to contamination

Applications: Appliance Engineering, Medical Technology, Packing Machines, Operation control and documentation of Vacuum plants and pumps

Photo Model Description Price Pre-order Online
 vcc200.jpg VCC200 Capacitance, 200-0.1mbar, 4-20mA, linear send RFQ more-details-button.jpg
 vsc43.jpg VSC43MV Ceramic. 1400-1mbar, 0-10V, linear send RFQ more-details-button.jpg
 vsp63mv.jpg VSP63MV Pirani, 10001e-4mbar, 0-10V, DN16KF Send RFQ more-details-button.jpg



Accessary:  cable, VacuGraph, protection cap, mating plug



Display and Control Unit



VD9

  • Single channel unit for any Thyracont Smartline transducer
  • 2 configurable independent set points.
  • Pressure display in Torr, mbar or hPa
  • USB port and VacuGraph software available for data analysis
  • Shielded metal cases for preventing electromagnetic interface

VD10

  • 4 channel unit for any Thyracont Smartline transducer
  • 2 configurable set points per measurement channel
  • Pressure display in Torr, mbar or hPa
  • RS232 port and VacuGraph software available for data analysis
  • Shielded metal cases for preventing electromagnetic interface

Application: Measuring and controlling in the fine and ultra high vacuum range, Analysis Technology, Vacuum Furnaces, Process Engineering

Photo Model Description Price
 vd10.jpg VD10 4 channel  Send RFQ



Available :  0-10v (analog) or RS486 (digital)

Accessary:  cable, VacuGraph,  protection cap, mating plug



** Products listed above are the most common items, but not the complete Thyracont product line.

Please feel free to contact us if you need anything else.
