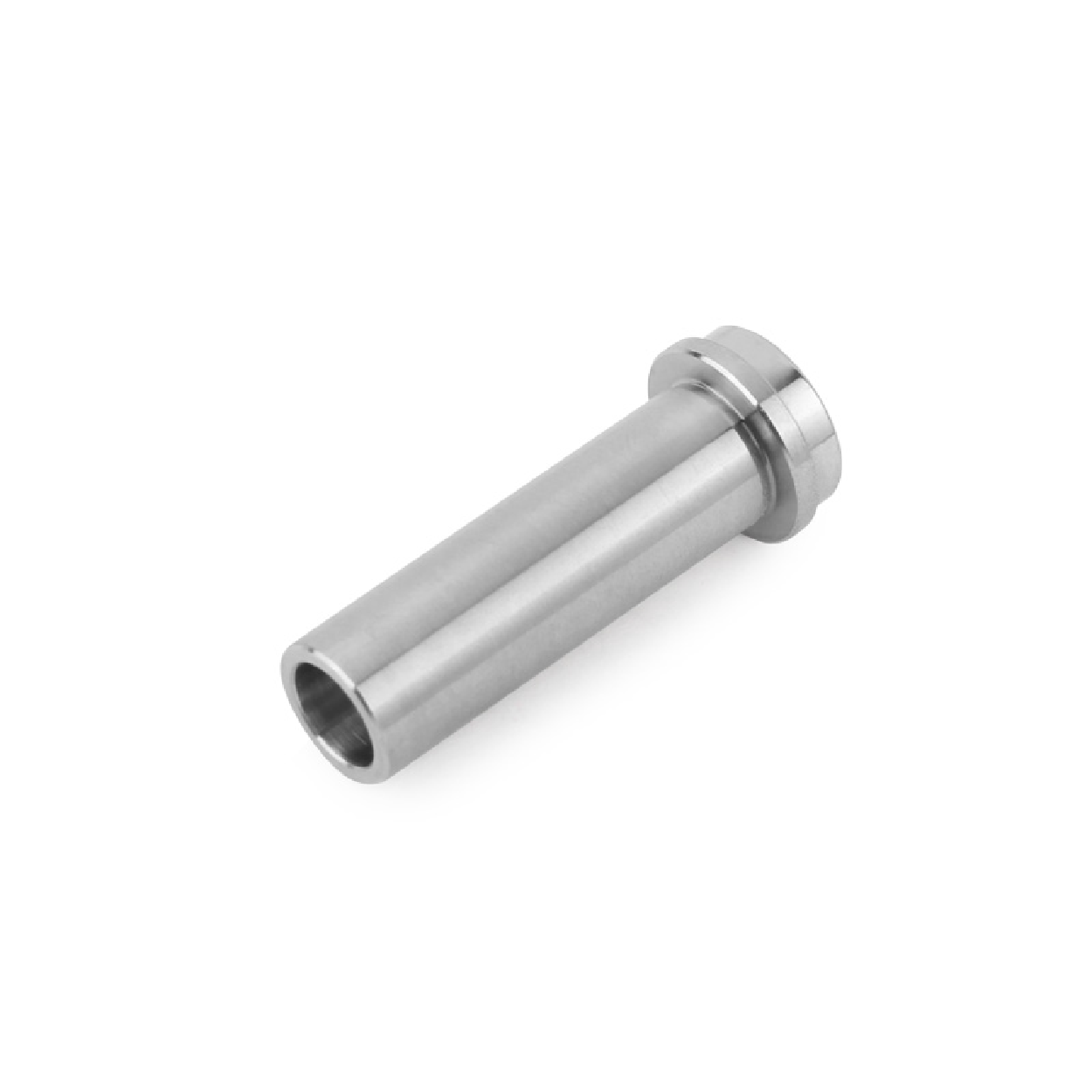

High Flow Glands to Tube Butt Weld
High Flow Glands to Tube Butt Weld
| HFR Gland to Tube Butt Weld | Dimensions, in. (mm) | Working Pressure, psig (bar) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FR Size (in.) | T-Tube O.D. (in.) | Nominal Wall Thickness (in.) | Basic Ordering Number | L | B | E | E₁ | 6L | CU | NI |
| 1/4 | 3/8 | 0.035 | SS-G-HFR4-TB6-0.60 | 0.60 (15.2) | 0.41 (10.4) | 0.25 (6.4) | 0.31 (7.9) | 3300 (227) | 3300 (227) | 3300 (227) |
| 1/4 | 3/8 | 0.035 | SS-G-HFR4-TB6-1.19 | 1.19 (30.2) | 1.00 (25.4) | 0.25 (6.4) | 0.31 (7.9) | 3300 (227) | 3300 (227) | 3300 (227) |
| 1/4 | 3/8 | 0.035 | SS-G-HFR4-TB6-1.31 | 1.31 (33.3) | 1.12 (28.4) | 0.25 (6.4) | 0.31 (7.9) | 3300 (227) | 3300 (227) | 3300 (227) |
Units: inch
Send us any part number for better price. Fast RFQ response guaranteed.
Call us: (510) 498-8518
Email: sales@vacproducts.com
