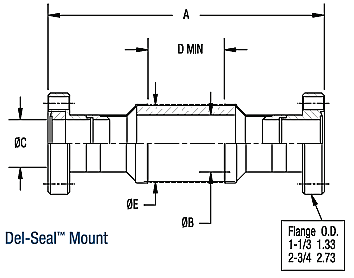

Ceramic Break
An electrical insulator. Metal ends provide a means of attaching to a vacuum chamber.
Voltage rating: between 3kV to 40kV.
Tube size: from 3/4" to 1 1/2" ID. However up to 8" diameter can be accomodated.
Available in:
- Manual and Pneumatic configuration
- Flanges in KF, ISO, and CF configuration
- Manual valve size up to 160 mm; Pneumatic size up to 630 mm.
| Liquid Break |
It is used to transmit coolent fluid to provide electrical break in the transmission line. When external part of chamber is isolated from ground, yet needs a cryogenic or water supply, small diameter ceramic-metal Break is used (mounted externaally to the chamber)
Temperature range: -200 °C to 450 °C
Thermal gradients of 25 °C per minute must be observed with these products.
Glass in place of ceramic is available upon request.
