Multi-Pin Feedthrough
Multipin FT are commonly used for transmission of electrical signals and/or low power applications. They are sometimes refer to as Instrumentation FT as in surface analysis, electron microscopy and process.
Multi-pin FT, not coaxially shielded, are used for low impedance source where induced noise is less significant.

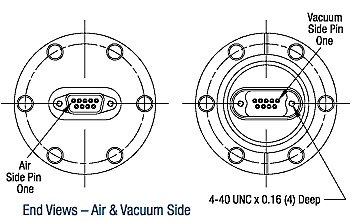

Type D

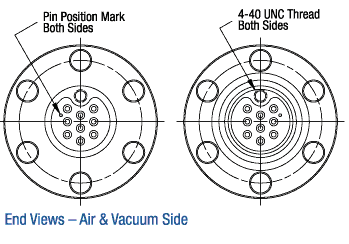

Type C
Multipin, Single-end
Multipin, Double-end
Product Series:
Type C
Type D
Gold plated 9 pin, is used where space is at a premiun.
Multipin
Gold plated 9,15,25,50 pin; meet MIL-C-24308 specification
Gold plated 4 to 35 pins. Thread connector meets MIL-C-5015
Available in CF or KF flanges
Atmosphere connector is supplied (require customer wiring).
Vacuum connector is purchased separately.
| Volt-Amp / Pin | Pin mat'l | # of Pin | |
| Type C | up to 300 V, < 10 amp | Be-Cu | 9 |
| Type D | up to 500 V, < 10 amp | Be-Cu | 9,15,25,50 |
| Multipin | up to 700 V, < 10 amp | Alumel | 4 to 35 |
| Bake temperature: | CF: 450 C. | KF: 150 C. | Connector: 65 C |
Drawings and specification available upon request.
