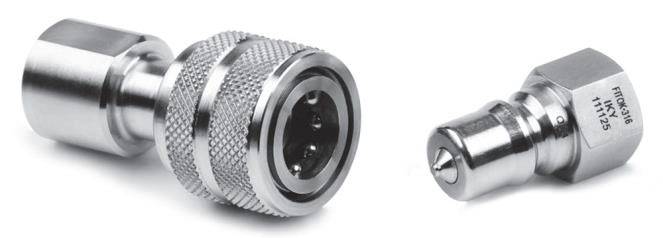

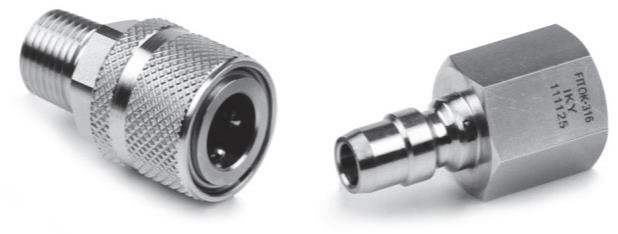

Quick Connect
- Specification
- Material: Stainless steel
- Maximum working pressure: Up to 6000 psig
- Working temperature: -10°F ~ 400°F (-23°C ~ 204°C)
- Orifice size: 1/8" ~ 1" and 6mm ~ 12mm
- Thread: NPT, hose connector, tube fitting
- Type Available: Single-end shutoff, double-end shutoff, full-flow quick-connects

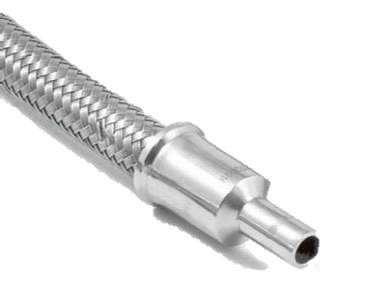

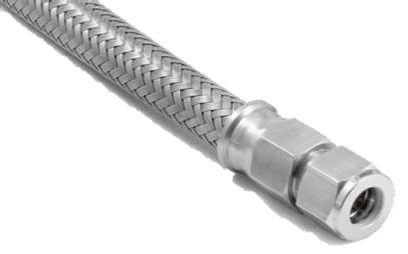

Metal Flexible Hose Assemblies
- Specification
- Material: Stainless steel
- Maximum working pressure: Up to 3100 psig
- Working temperature: -325°F ~ 800°F (-200°C ~ 426°C)
- Orifice size: 1/4" ~ 2"
- Thread: NPT, tube fitting
