Valve and Filter

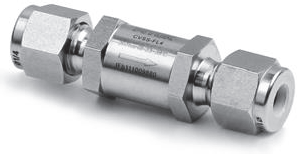

| Check Valve |
- Fixed and adjustable cracking pressure
- Can be installed in any direction
- Variety of springs available
Specification
Material: Stainless steel Maximum working pressure: Up to 6000 psig Cracking pressure: 1/3 ~ 600psig Working temperature: -65°F ~ 900°F (-54°C ~ 482°C) Orifice size: 1/8" ~ 1" and 6mm ~ 12mm Thread: NPT, BSPT, socket weld, butt weld, tube fitting
| Metering Valve |
- Specification
- Material: Stainless steel
- Maximum working pressure: Up to 5000 psig
- Working temperature: -65°F ~ 850°F (-54°C ~ 454°C)
- Orifice size: 0.032" ~ 1.128"
- Thread: NPT, FR fitting, tube fitting
| Ball Valve |
- Smooth and low operating torques
- Variety of handle colors
- Pneumatic and electric actuators available
- Panel mountable
- Leak-tight performance testing for every valve at the maximum working pressure with nitrogen
Specification
Material: SS316, 316L, 904L, 304, 304L, 321 Maximum working pressure: Up to 10000 psig Working temperature: -65°F ~ 450°F (-54°C ~ 232°C) Orifice size: 1.3mm ~ 18mm Thread: NPT, socket weld, tube fitting

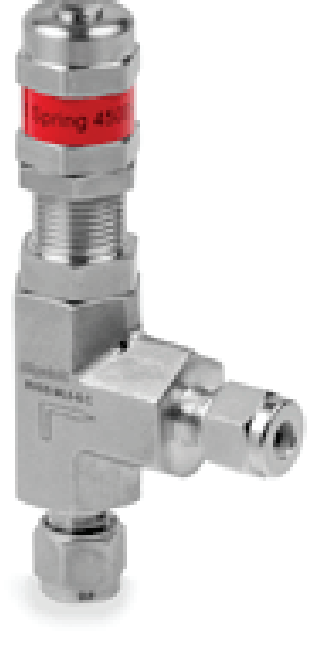

| Relief Valve |
- Liquid or gas service
- Adjustable connet cap and adjustable set pressure
- Lock wired secure cap to maintain the set pressure
- Variety of seal materials
- Label identifies the set pressure range

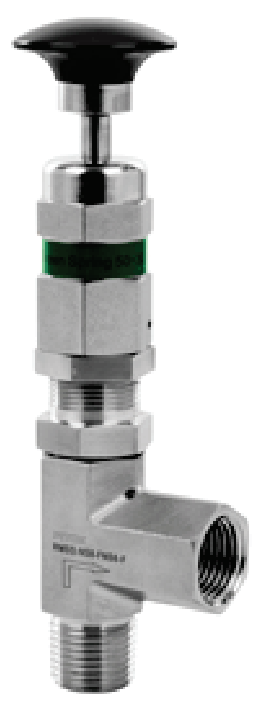

- Manual override available to open the valve without changing the set pressure
Specification
Material: Stainless steel Set Pressure: 10 ~ 6000 psig @ 70°F (20°C) Maximum outlet pressure: Up to 1500 psig Working temperature: -10°F ~ 300°F (-23°C ~ 148°C) Orifice size: 0.14" ~ 0.25" Thread: NPT, tube fitting

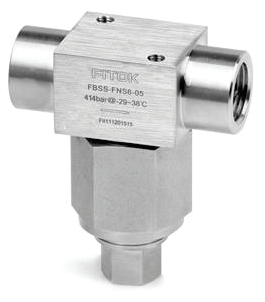

| Filter |
- Specification
- Material: SS316, 316L, 304, 304L, 904L, 321L
- Maximum working pressure: Up to 6000 psig
- Working temperature: -20°F ~ 900°F (-29°C ~ 482°C)
- Orifice size: 1/8" ~ 1/2"
- Nominal pore sizes for sintered element: 0.5, 2, 7, 15, 40, 60, 80 μm
- Nominal pore sizes for strainer element: 100, 150, 250, 450 μm
- Thread: NPT, socket weld, tube fitting
