Motion Feedthrough

Rotary Feedthrough

VFR series

  • Standard: VFR-S
  • Economy: VFR-E
  • Hi. Temp: VFR-HT
  • Precision: VFR-P
  • Heavy Duty: VFR-HD

Rotary FT has 5 design variations; each for a specific requirement. See below table. Housing are made of aluminum, except Hi Temp series which is all SST All rotary FT comes standard with a scale.

"Economy Series", which does not have a scale, is a lowest cost version. Torque of Heavy Duty series can be as high as 240 in-lb.
"Precision Series" is equipped with a precision micrometer

Specification:

  Economy Standard Hi Temp Hy Duty Precision
Bake temp (0C ) 200 200 315 200 200
Op. temp (0C ) -20 to 150 -20 to 150 -20 to 315 -20 to 150 -20 to 150
Scale resolution 5 deg 5 deg 5 deg 5 deg 5 deg
Max Torque 125 in-oz 125 in-oz 125 in-oz 5 ft-lb 320 iin-oz
Flange CF133/275 CF133/275 CF133/275 CF275 CF275
Flange KF16/40 KF16/40 --- KF40 KF40
Leak rate 1x10-9 cc/s

Actuator:

  • Manual, bellow-sealed
  • Pneumatic, bellow-sealed
  • Electric, bellow-sealed
  • Magnetic Coupled



"Economy" : VFR-E

Scale resolution: 5°

P/N FLANGE DESCRIPTION WT (LBS)
VFR-E-CF133 1 1/3" Rotary Feedthrough, Aluminum w/o dial 0.6
VFR-E-CF275 2 3/4" Rotary Feedthrough, Aluminum w/o dial 1.1
VFR-E-KF16 KF 16 Rotary Feedthrough, Aluminum w/o dial 0.6
VFR-E-KF40 KF 40 Rotary Feedthrough, Aluminum w/o dial 1.0

Standard : VFR-S

P/N FLANGE DESCRIPTION WT (LBS)
VFR-S-CF133 1 1/3" Rotary Feedthrough, anodised with dial 0.6
VFR-S-CF275 2 3/4" Rotary Feedthrough, anodised with dial 1.1
VFR-S-KF16 KF 16 Rotary Feedthrough, anodised with dial 0.6
VFR-S-KF40 KF 40 Rotary Feedthrough, anodised with dial 1.0

Same dimension as "Mini Economy"

High Temp. : VFR-HT

P/N FLANGE DESCRIPTION WT (LBS)
VFR-HT-CF133 1 1/3" High -Temparture Rotary, 304 SS with dial 0.6
VFR-HT-CF275 2 3/4" High -Temparture Rotary, 304 SS with dial 1.1

Identical dimension as Standard (VFR-S) except equipped with all stainless steel body and housing.

Precision: VFR-P

  • Low backlash
  • Rotary position lock
  • Manual or motorized
P/N FLANGE DESCRIPTION WT (LBS)
VFR-P-CF275 2 3/4" Compact Design, w/ 1/4" shaft 3.0
VFR-SP-KF40 KF 40 Compact Design, w/ 1/4" shaft 2.5

Resolution: 2°

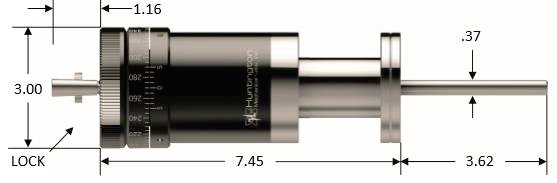

Heavy Duty: VFR-HD

  • 0.375 diameter shaft
  • Manual or motorized
P/N FLANGE DESCRIPTION WT (LBS)
VFR-HD-CF275 2 3/4" Vernier Scale, w/ CF FLANGE 5.0
VFR-HD-KF40 KF 40 Vernier Scale, w/ CF FLANGE 4.3

Resolution: 2°

Magnetic Feedthrough

Miniature magnetic ally coupled rotary feedthrough is UHV compatible. It is the most economical FT of all . The trade off is not suitable for fast recipricating application.

Available in CF1.33 flange only
  • Actuator: maunal or pneumatic
  • Max. Torque: 3.5 in-lb
  • Bake Temperture: 150° C
  • Etched scale: 5° increment
  • Resolution: 1°
  • Vacuum Range: 1x10-11 Torr
  • Shaft diameter: 6 mm with tap hole


Linear Feedthrough (FT), VFL series

Linear Series has 5 variations of design; each for a specific requirement. Housing are made of Aluminum, except "Hi Temp" series which are all SST rotary FT comes with a scale. "Precision Series" comes with a micrometer

Higher load of up to 110 lbs of axial force is available.

Linear Series: VFL

  Standard Hi Temp Push/Pull Precision Hv Duty
Bake temp (C) 200 315 200 200 200
Op. temp (C) -20 to 150 -20 to 250 -20 to 150 -20 to 80 -20 to 150
dial resolution .002" (0.5mm) .002" --- .0001" .002"
linear resolution .05" .05" .05" .0001" .05"
M. Axial 10 lb 10 lb 25 lb 5 lb 50
M. Lateral 15 lb 5 lb 20 lb 5 lb 20

* Pneumatic style requires a male 1/8 NPT fitting

Linear Series:

  • Standard = VFL-S
  • Hi. Temp = VFL-HT
  • Push/Pull = VFL-PP
  • Precision = VFL-P
  • Heavy duty = VFL-HD

Actuator:

Manual, bellow-sealed Pneumatic, bellow sealed Electric motor, bellow-sealed Magnetic Coupled

Standard : VFL-S

Available in manual or motorized. Area exposed to vacuum are stainless steel. Motor resolution = 51,200 microsteps/rev

P/N Flange Stroke Length Wt (lbs)
VFL-S-CF133 x 1.0 CF 1.33 1.0 4.47" 1.0
VFL-S-CF133 x 2.0 2.0 5.85" 1.5
VFL-S-CF133 x 4.0 4.0 8.61" 2.5
VFL-S-CF275 x 1.0 CF 2.75 1.0 4.47" 1.5
VFL-S-CF275 x 2.0 2.0 5.85" 2.0
VFL-S-CF275 x 4.0 4.0 8.61" 3.0
VFL-S-KF16 x 1.0 KF 16 1.0 4.47" 1.0
VFL-S-KF16 x 2.0 2.0 5.85" 1.5
VFL-S-KF16 x 4.0 4.0 8.61" 2.5
