| Compact, Closed Oil Mist Filters |
EE/SV Series
- Features and Benefits:
- Captures oil fog, mist or smoke from exhaust of oil flooded vacuum pumps
- Seamless drawn housings – no welds to rust or vibrate apart
- Rugged all steel construction
- Compact low profile design
- Easy field maintenance
- Technical Specifications:
- 03 micron media; 99.97% efficiency
- Continuous operating temp: 68°F (20°C) to 180°F (80°C)
- Options:
- Additional ISO flange connections
- Additional coating options available
- Side outlet configuration
- Drain for SV Series

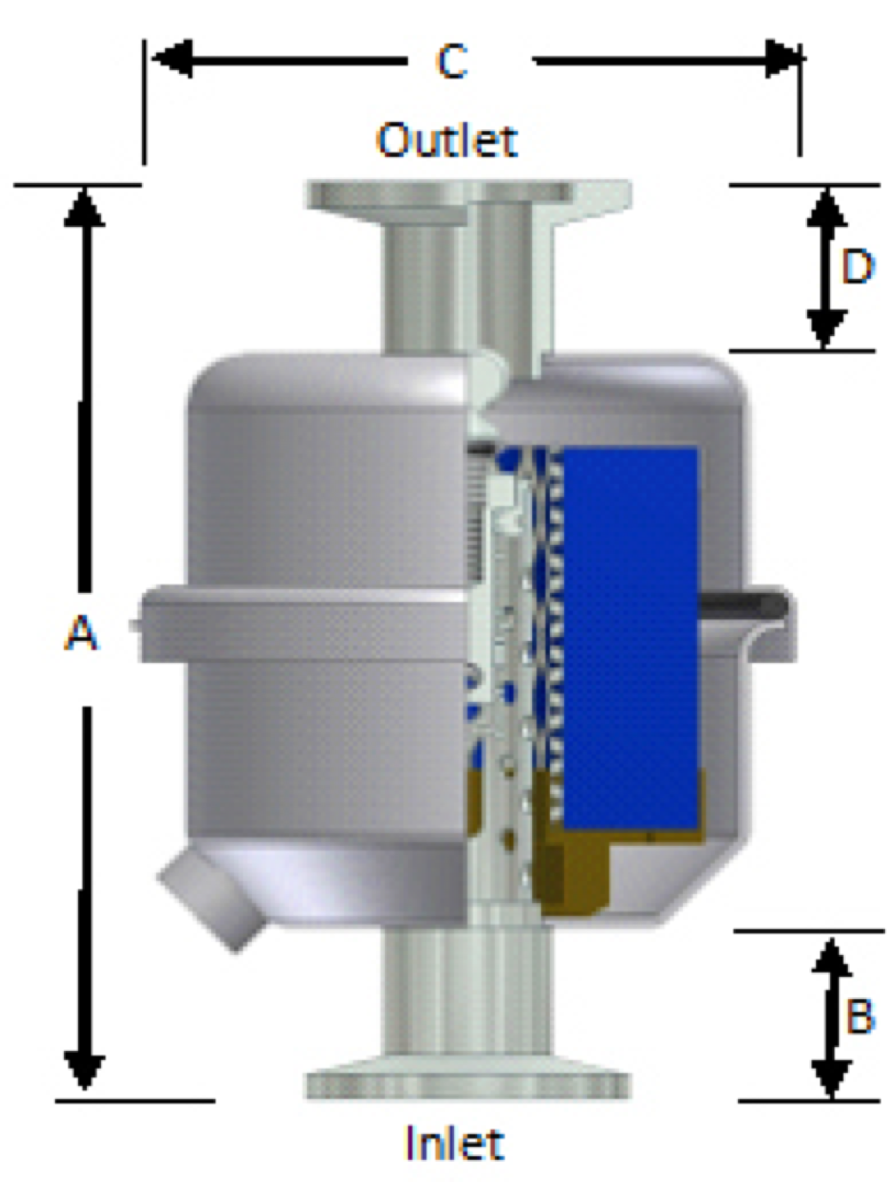

EE Series Specification
| Inlet | Outlet | CFM | P/N | A | B | C | D | Wt (lb) |
| KF16 | KF16 | 8 | EE-GL915-KF16 | 4.69 | 0.88 | 3.25 | 0.88 | 1.2 |
| KF25 | KF25 | 8 | EE-GL915-KF25 | 4.69 | 0.88 | 3.25 | 0.88 | 1.2 |
| KF25 | KF25 | 20 | EE-PSG925-KF26 | 7.75 | 0.88 | 5.25 | 0.88 | 5 |
* Back pressure valve to release element at 7.35 psi differential for pump safety
* 1/8" port for oil drain
SV Series Specification
| Inlet | Outlet | CFM | P/N | A | B | C | D | Wt (lb) |
| KF16 | KF16 | 8 | SV-GL915-KF16 | 4.69 | 0.88 | 3.25 | 0.88 | 1.20 |
| KF25 | KF25 | 8 | SV-GL915-KF25 | 4.69 | 0.88 | 3.25 | 0.88 | 1.20 |
| KF25 | KF25 | 20 | SV-PSG925-KF26 | 7.75 | 0.88 | 5.25 | 0.88 | 5.00 |
* Same dimension as EE Series. Without valve or external drain

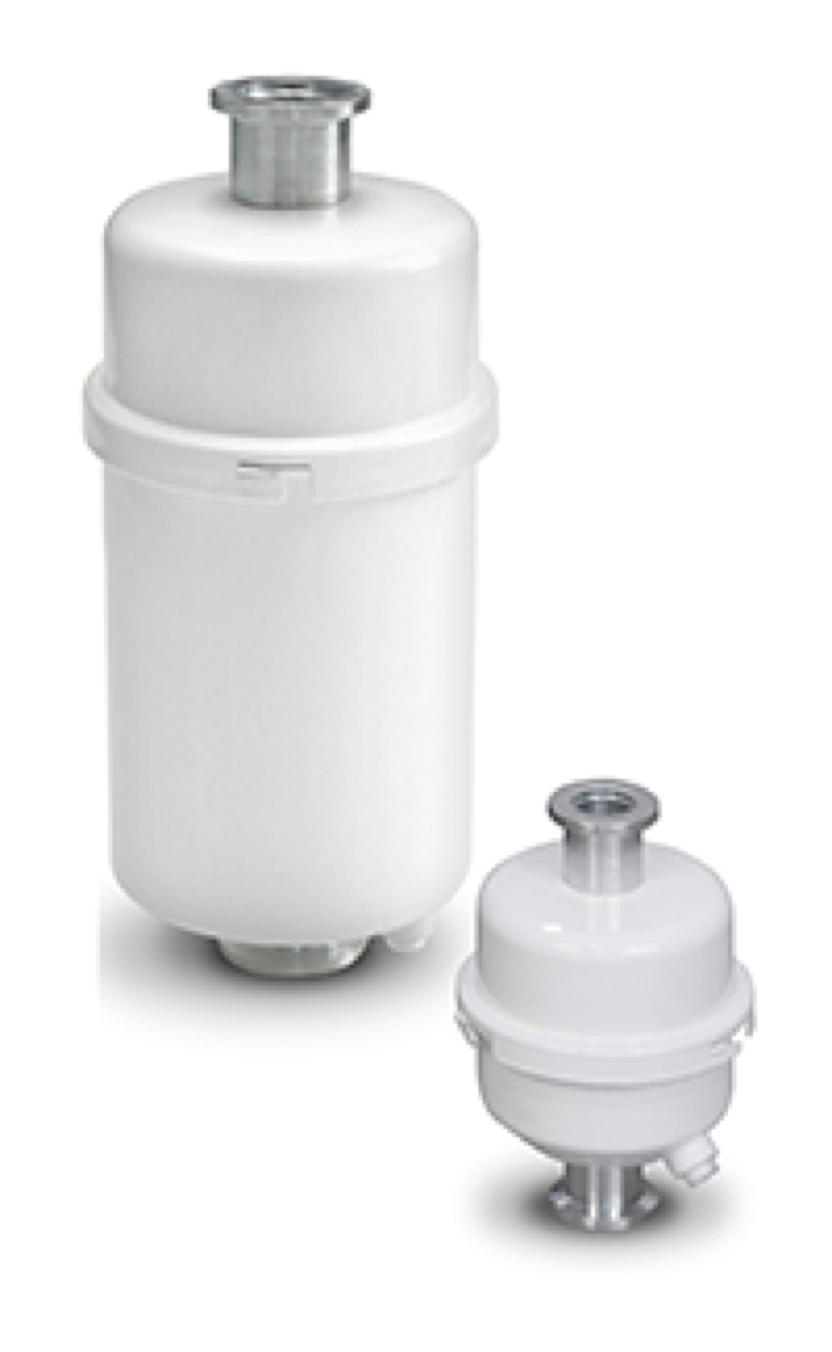

| Compact Oil Mist Exhaust Filters |
EF Series (1/2"- 1 3/4", NW16-MW25, KF16-KF40 ISO Flg)
Features and Benefits:
- Captures oil fog, mist or smoke from exhaust of oil flooded vacuum pumps
- Easy thumbscrew access for maintenance
- Steel construction with Nickel plated finish
- Seamless drawn housings – no welds to rust or vibrate apart
- Minimum 99.97% D.O.P. on 0.3 micron particles Vacuum Coating
- Temp (continuous): min 40°F (4.4°C) max 220°F (104°C)
- Filter change out differential: Please refer to Vacuum Pump Manufacturer’s specifications
- Applications and Equipment:
- Vacuum Furnaces & Ovens
- Vacuum Freeze Drying & Outgassing
- Custom Vacuum Pumping Systems
- Vacuum Drying
- Vacuum Metallizing
- Vacuum Coating
- Refrigeration and Air Conditioning evacuation service
- Semiconductor Industry
- Laboratory Industry
- Autoclaving, Sterilization
- Electronic tube and light bulb evacuation
- Leak detectors
- Options:
- ISO flange connections
- Special connections
- Drain Back Design Available on Selected Models
Specification

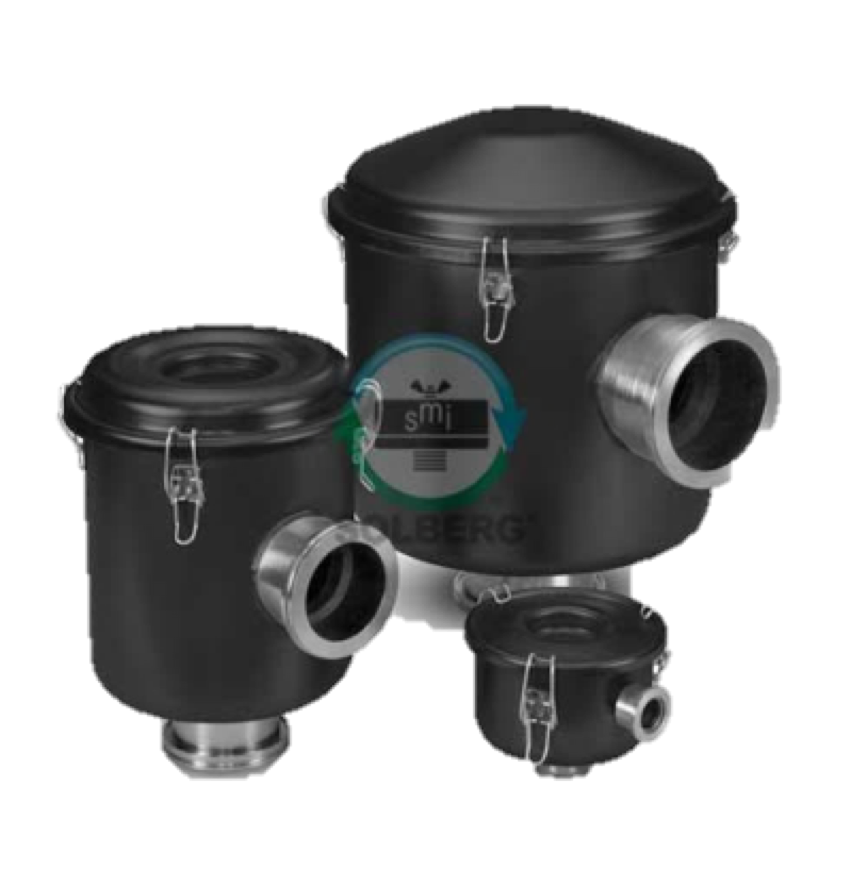

| Inlet | Outlet | CFM | P/N | A | B | C | Wt (lb) |
| KF16 | KF16 | 4.5 | EF-FG5-KF16 | 4.50 | 0.88 | 2.50 | 0.60 |
| KF25 | KF25 | 4.5 | EF-FG5-KF25 | 4.50 | 0.88 | 2.50 | 1.40 |
| KF25 | KF25 | 24 | EF-FG10-KF25 | 9.25 | 2.13 | 5.13 | 3.50 |
| ISO FLG Vacuum Filters |
CSL Series (Electorless Nickel Finish, SS Fittings) (Compact Inlet "L" Style Vacuum Filters with ISO-NW Flanges)
Features and Benefits:
- Temp (continuous): min -15°F (-26°C ) max 220°F (104°C )
- Positive sealing O-ring seal system
- Carbon steel construction
- Seamless drawn housings
- Large dirt holding capacity and easy field cleaning, especially when mounted horizontally or inverted
- Vacuum leak rate: Typecally 1x10-5mmHg (1x10-5mbar-L/sec)
- Stainless steel ISO flanges
- Electroless nickel finish
- Applications:
- Leak Detection
- Medical
- Vacuum Pump-Rotary Piston
- Vacuum Pump-Rotary Vane
- Scroll Dry Pump
- Backstreaming-Protect the system from pump fluid or particulate migration
- Prevent dry scroll tip seal migration
- Laser technology
- Vacuum coating and lamination
Specification
| Inlet | Outlet | CFM | P/N | A | B | C | D | Wt (lb) |
| KF16 | KF16 | 8 | CLS-824-KF16 | 3.88 | 2.63 | 3.75 | 2.25 | 1.20 |
| KF25 | KF25 | 8 | CLS-824-KF25 | 3.88 | 2.63 | 3.75 | 2.25 | 1.20 |
| KF25 | KF25 | 20 | CLS-842-KF25 | 4.38 | 3.38 | 5.75 | 2.75 | 3.00 |
| KF40 | KF40 | CLS-842-KF40 | 4.38 | 3.38 | 5.75 | 2.75 | 3.00 | |
| KF40 | KF40 | CLS-848-KF40 | 7.19 | 4.63 | 7.38 | 5.00 | 5.00 |
