Gate Valve

INDUSTRIAL | SEMICONDUCTOR | HARSH ENVIRONMENT | ALUMINUM | MINI
Industrial

Plug-in compatible with standard valves; easily replace valves in the field. Ultra clean for use in a clean vacuum environment.

Available in:

  • Manual and Pneumatic configuration
  • Flanges in KF, ISO, and CF configuration
  • Manual valve size up to 6 in; Pneumatic size up to 24 in

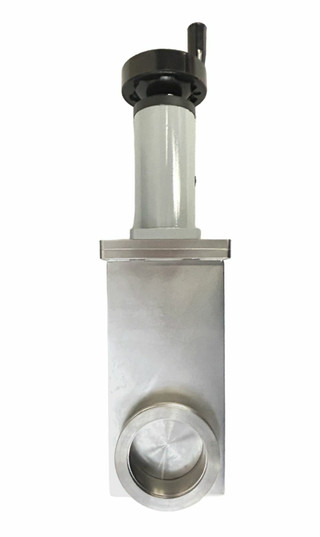

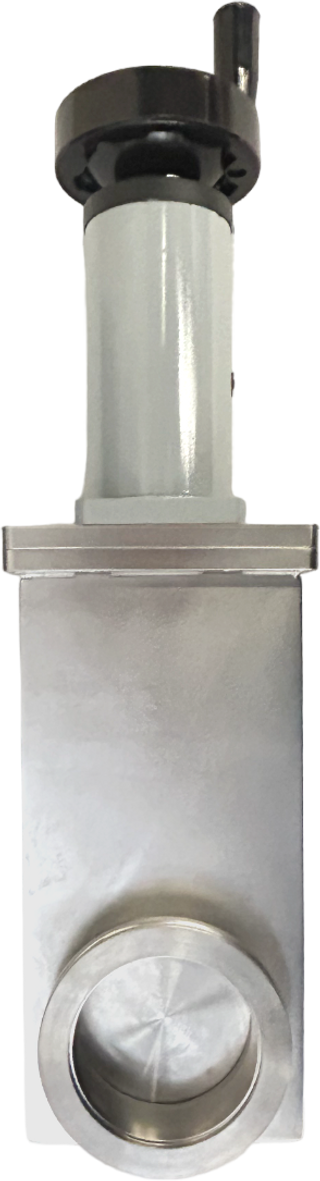

GVM GVP
  • Vacuum range: 1 x 10-9  Torr
  • Leak test: 1 x 10-9 atm cc/sec of He
  • Bake temperature:  80-120 oC Fluctuating
  • Life: 100,000 Cycle
  • Seal: Viton (FKM)
  • Time from open-close: < 1.5 sec
  • Position Indicator: 28 VDC or 115 VAC
  • Material: Stainless Steel

Pneumatic Industrial Gate Valve

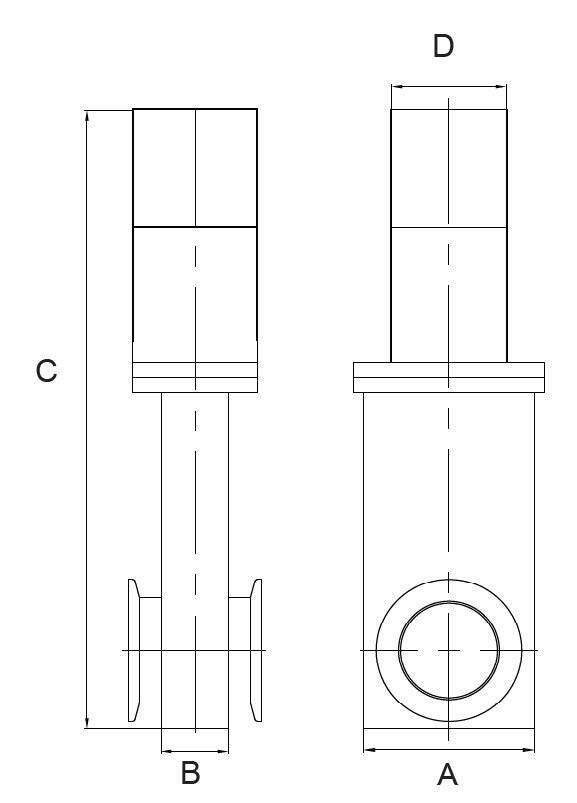

PORT A (inch) B (inch) C (inch) D (inch)
1.0" 2.44 1.34 11.18 2.52
1.5" 2.99 1.34 12.40 2.52
2.0" 3.47 1.34 12.81 2.52
2.5" 4.33 1.34 14.39 2.83
3.0" 5.12 1.42 17.60 3.31
4.0" 5.67 1.57 24.21 2.95
6.0" 7.91 1.77 30.37 2.95
8.0" 10.16 1.85 35.33 3.74
10.0" 12.20 2.15 37.28 4.61
12.0" 16.73 3.07 52.32 4.53

* Flanges are also available in ISO-K, CF HV

* Solenoid, Position Indicator included with pneumatic gate valve

* Subject to change without notice

Manual Industrial Gate Valve

PORT A (inch) B (inch) C (inch) D (inch)
1.0" 2.44 1.34 10.94 2.48
1.5" 2.99 1.34 12.30 2.48
2.0" 3.47 1.34 12.85 2.48
2.5" 4.33 1.34 14.88 3.94
3.0" 5.12 1.42 18.17 3.94
4.0" 5.67 1.57 19.69 3.94
6.0" 7.91 1.77 25.69 3.94
8.0" 10.16 1.85 30.06 3.94
10.0" 12.20 2.15 37.70 4.92
12.0" 16.73 3.07 46.91 4.92

* Flanges are also available in ISO-K, CF HV

* Subject to change without notice

Semiconductor

Plug-in compatible with standard valves; easily replace valves in the field. Ultra clean for use in a clean vacuum environment.

For more information on the semiconductor gate valves we offer, please click here.

Available in:

  • Manual and Pneumatic configuration
  • Flanges in KF, ISO, and CF configuration
  • Manual valve size up to 6 in; Pneumatic size up to 24 in
sst-gv-sprobe.png sst-gv-sprobe.png

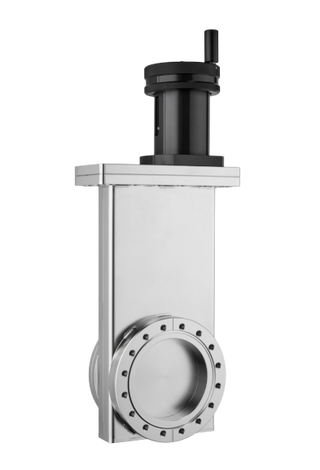

GVM-S GVP-S
  • Vacuum range: 1 x 10-10  Torr
  • Leak test: 1 x 10-10 atm cc/sec of He
  • Bake temperature:  200 oC
  • Life: 1M Cycle
  • Time from open-close: < 1.5 sec
  • Position Indicator: 28 VDC or 115 VAC
  • Material: Stainless Steel

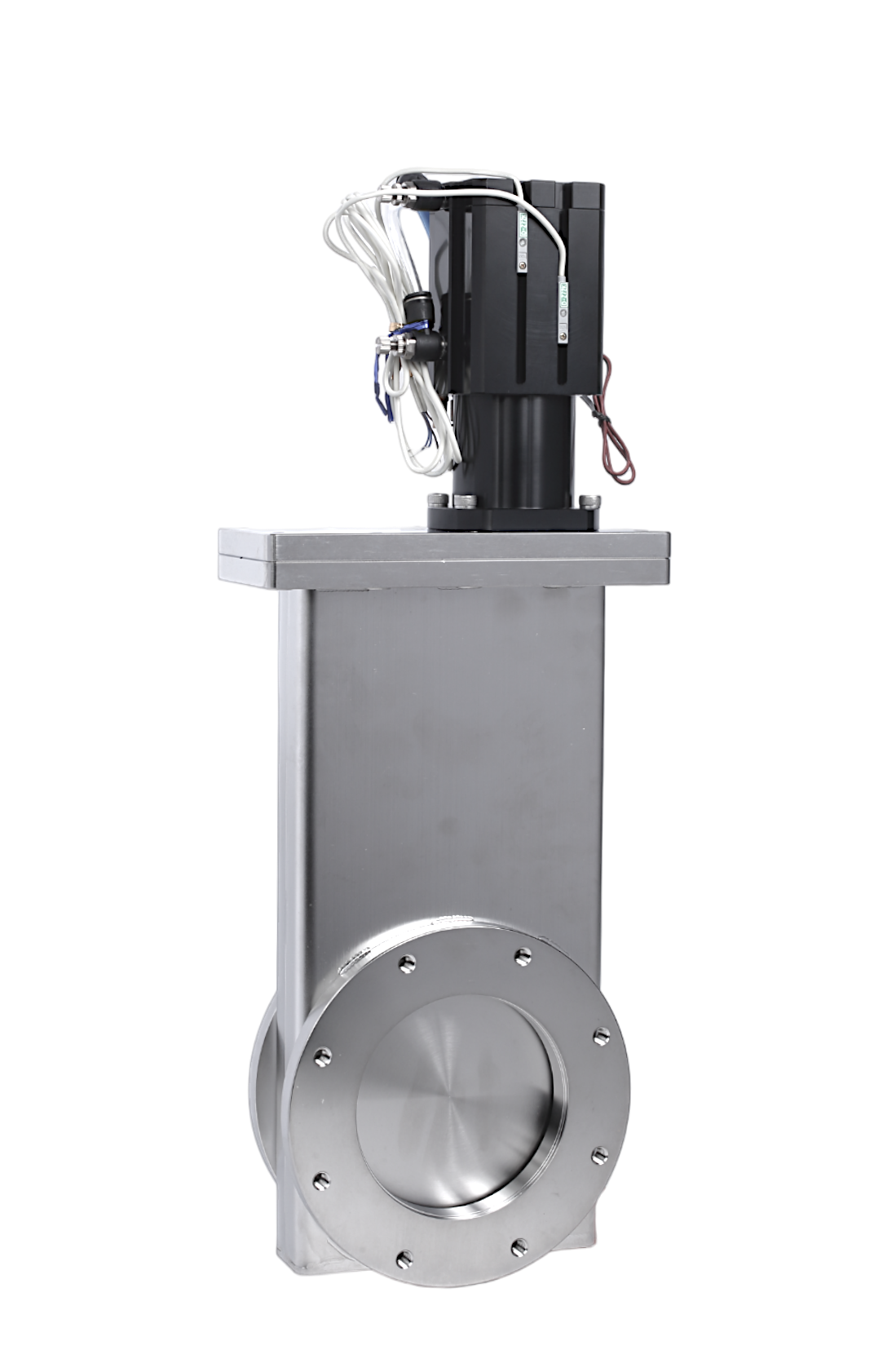

Pneumatic Semi Gate Valve

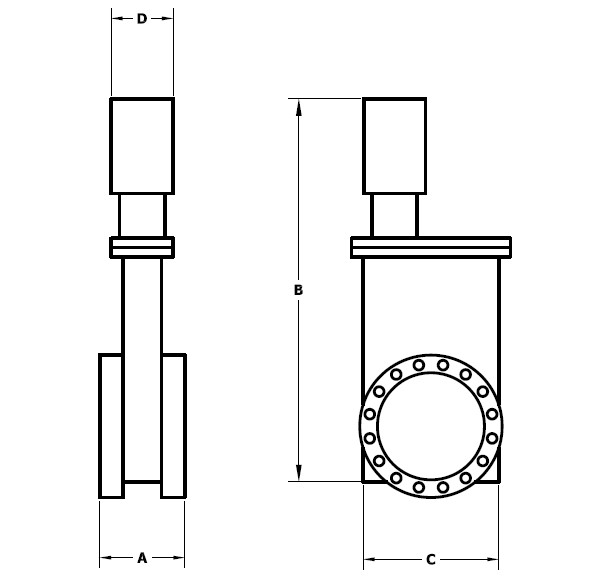

PORT A (inch)  B (inch) C (inch) D (inch)
1.5" 2.06 10.12 2.74 2.28
2.0" 2.85 13.17 3.92 2.68
2.5" 2.66 13.17 3.92 2.68
3.0" 2.52 19.27 5.51 2.68
4.0" 3.15 19.27 5.83 2.52
6.0" 3.39 23.48 7.48 3.03
8.0" 3.39 29.25 9.41 3.70
10.0" 4.09 35.55 11.57 4.88
12.0" 4.16 41.97 14.49 5.51
14.0" 4.55 47.56 16.77 6.26
16.0" 4.65 56.18 19.09 6.85
20.0" 4.81 79.06 24.02 4.57
22.0" 5.05 86.69 25.67 5.71
24.0" 5.68 92.60 27.64 5.71
30.0" 6.78 120.55 34.25 6.69

* Flanges are also available in ASA or JIS

* Subject to change without notice

Manual Semi Gate Valve

PORT A (inch) B (inch) C (inch) D (inch)
1.5" 2.06 10.58 2.74 2.56
2.0" 2.85 13.06 3.92 2.52
2.5" 2.66 13.06 3.92 2.52
3.0" 2.52 19.65 5.51 3.74
4.0" 3.15 19.71 5.83 3.74
6.0" 3.39 23.00 7.48 3.74
8.0" 3.39 28.41 9.41 3.90
10.0" 4.09 34.28 11.57 4.33

* Flanges are also available in ASA or JIS

* Subject to change without notice

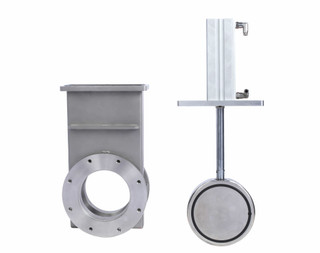

Harsh Environment

Designed for harsh and dirty environment such as MOCVD, ALD, or PECVD in presence of corrosive chemical and high temperature. Corrosive condensate can cause failure in bearing and linkages. Easy cleaning or replacement.

Available in:

  • Pneumatic configuration
  • Flanges in KF, ISO, and CF configuration
  • Valve size available from 3" to 6"

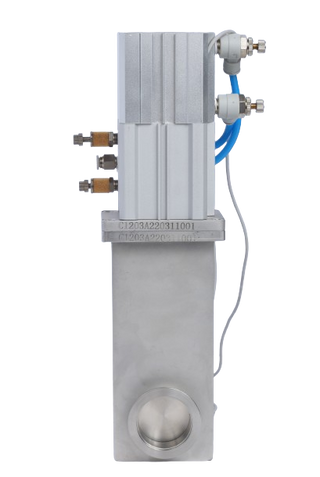

GV
  • Vacuum range: 8 x 10-9  Torr
  • Leak test: 1 x 10-9  atm cc/sec of He
  • Bake temperature:  150 oC
  • Life: 250,000 Cycle
  • Seal: Viton (FKM)
  • Operating temperature: 100 to 150oC
  • Position Indicator: 28 VDC or 115 VAC

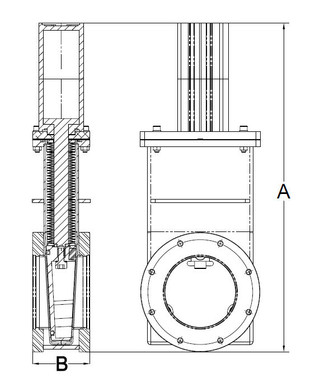

Pneumatic Harsh Environment Gate Valve

PORT A (inch) B (inch)
ISO80 17.38 2.76
ISO100 17.42 2.76
ISO160 27.18 3.54

* Subject to change without notice

Aluminum

High quality aluminum Gate Valve that the body is machined from a solid block, resulting in better rigidity and strength. Light weight design. Position indicator optional.

Available in:

  • Manual and Pneumatic configuration
  • Flanges in KF, ISO, and CF configuration
  • Manual valve size up to 6 in; Pneumatic size up to 24 in

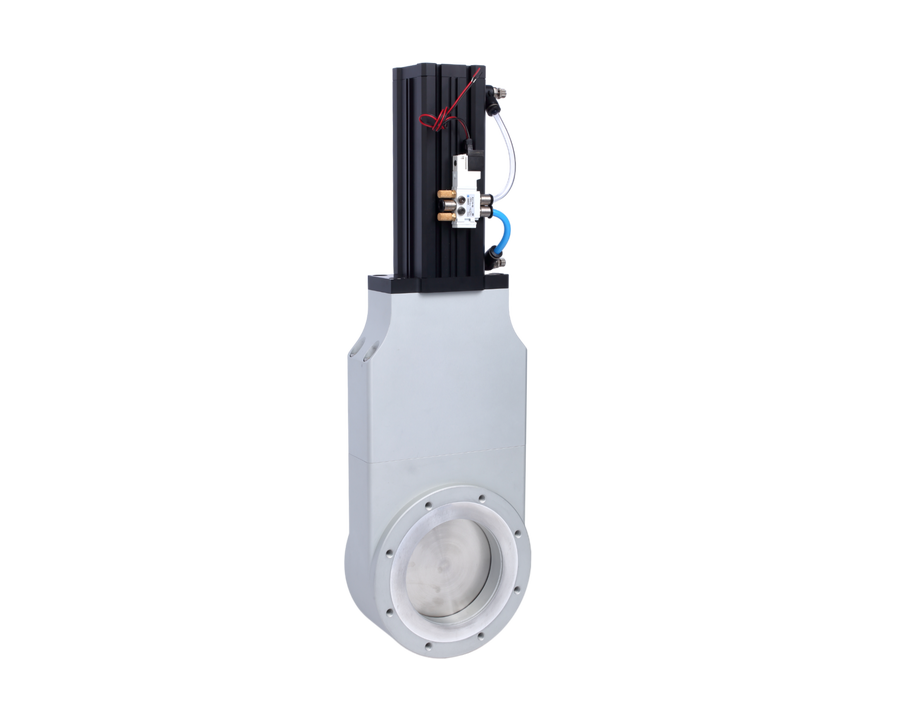

GVAP
  • Vacuum range: 8 x 10-9  Torr
  • Leak test: 1 x 10-9  atm cc/sec of He
  • Bake temperature:  100 oC
  • Life: 250,000 Cycle
  • Time from open-close: < 1.5 sec
  • Operating temperature: up to 100oC
  • Position Indicator: 28 VDC or 115 VAC
  • Material: Aluminum

Pneumatic Aluminum Gate Valve

PORT A (inch) B (inch) C (inch) D (inch)
1.5" 2.36 11.54 2.52 2.52
2.0" 2.24 11.50 3.27 2.24
2.5" 2.36 17.54 4.61 2.52
3.0" 2.36 22.07 6.50 2.52
4.0" 2.76 29.63 8.46 3.03
6.0" 2.76 34.84 10.43 3.03
8.0" 3.23 41.42 12.40 3.70

* Subject to change without notice

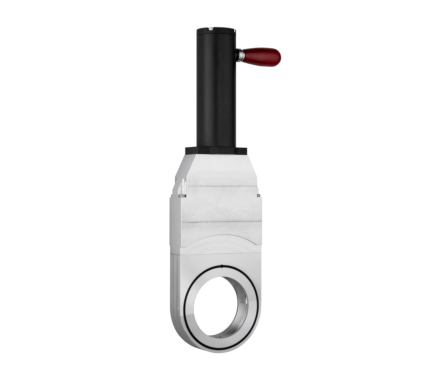

GVAM
  • Vacuum range: 8 x 10-9  Torr
  • Leak test: 1 x 10-9  atm cc/sec of He
  • Bake temperature:  100 oC
  • Life: 250,000 Cycle
  • Time from open-close: < 1.5 sec
  • Operating temperature: up to 100oC
  • Position Indicator: 28 VDC or 115 VAC
  • Material: Aluminum

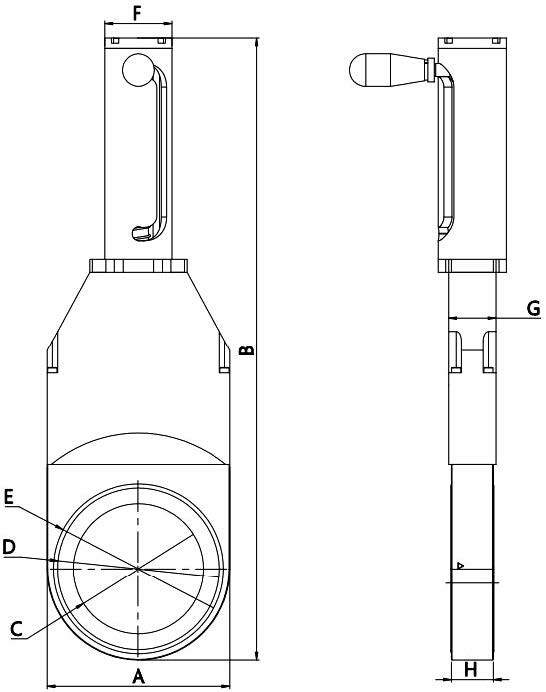

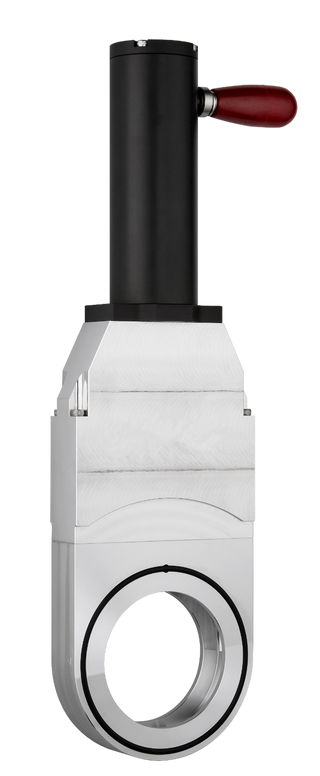

Manual Aluminum Gate Valve

PORT A (inch) B (inch) C (inch) D (inch)
1.5" 2.36 9.96 2.52 2.20
2.0" -- -- -- --
3.0" 1.26 16.52 4.65 52
4.0" 1.26 18.8 5.51 52

* Subject to change without notice

Gate Valve Mini

A substitude for gate valve at a fraction of the cost. This valve has very few parts with only one axis motion, thus extremely robust. Available in manual and electrical version. The electrical version is a throttling valve with unlimited positions to control the flow. Ideal application for loadlock chamber to avoid turbulance.

Features and Benefits:

  • Reliable, robust
  • secure locking in closed position on both gate sides
  • Actuator solenoid available in AC or DC
  • Reliable performance
  • Extended maintenance free cycle

Available in:

  • Manual and Electrical configuration
  • Flanges in KF

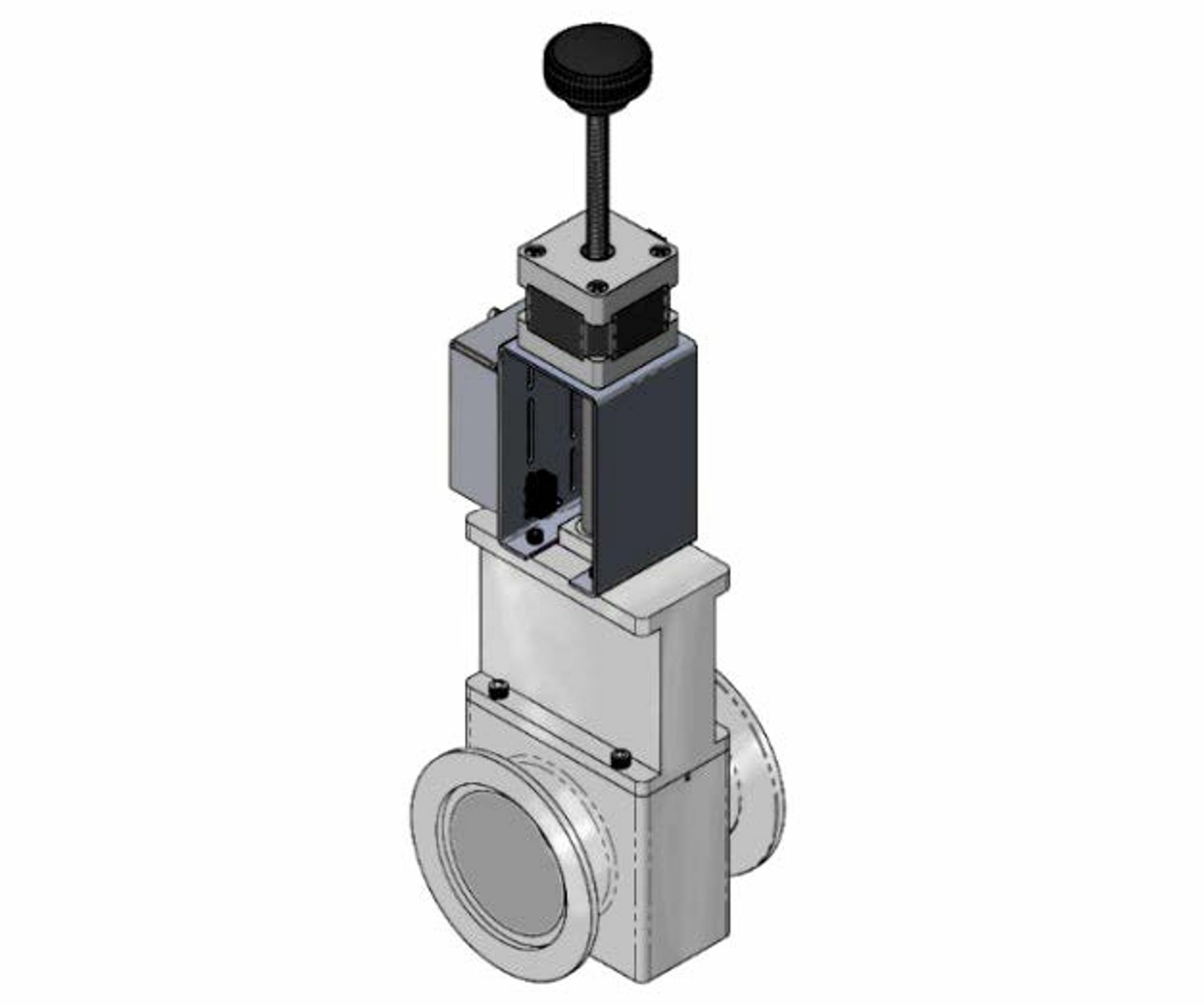

GVE-M
  • Vacuum range: 1 x 10-7  Torr
  • Leak test: 1 x 10-9 mbar ls-1
  • Bake temperature: 100 oC
  • Seal: Viton O-ring
  • Life: 50,000 Cycle
  • Mounting Position: Any
  • Voltage | Current:  50 VAC/DC | 0.1 A
  • Solenoid: 24 VDC, 5.4W

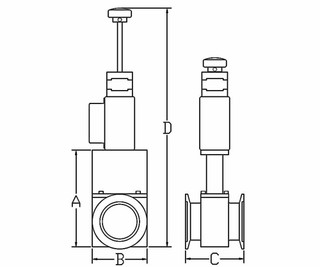

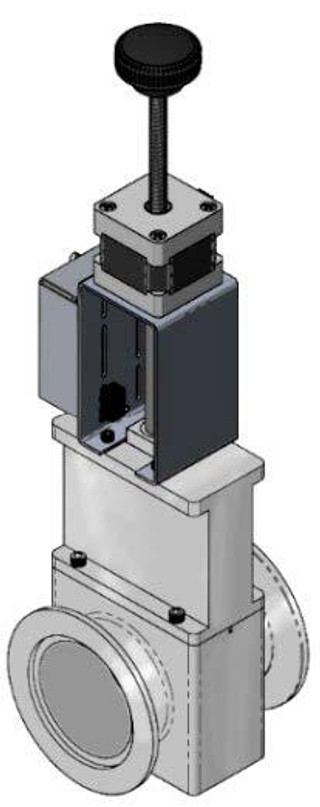

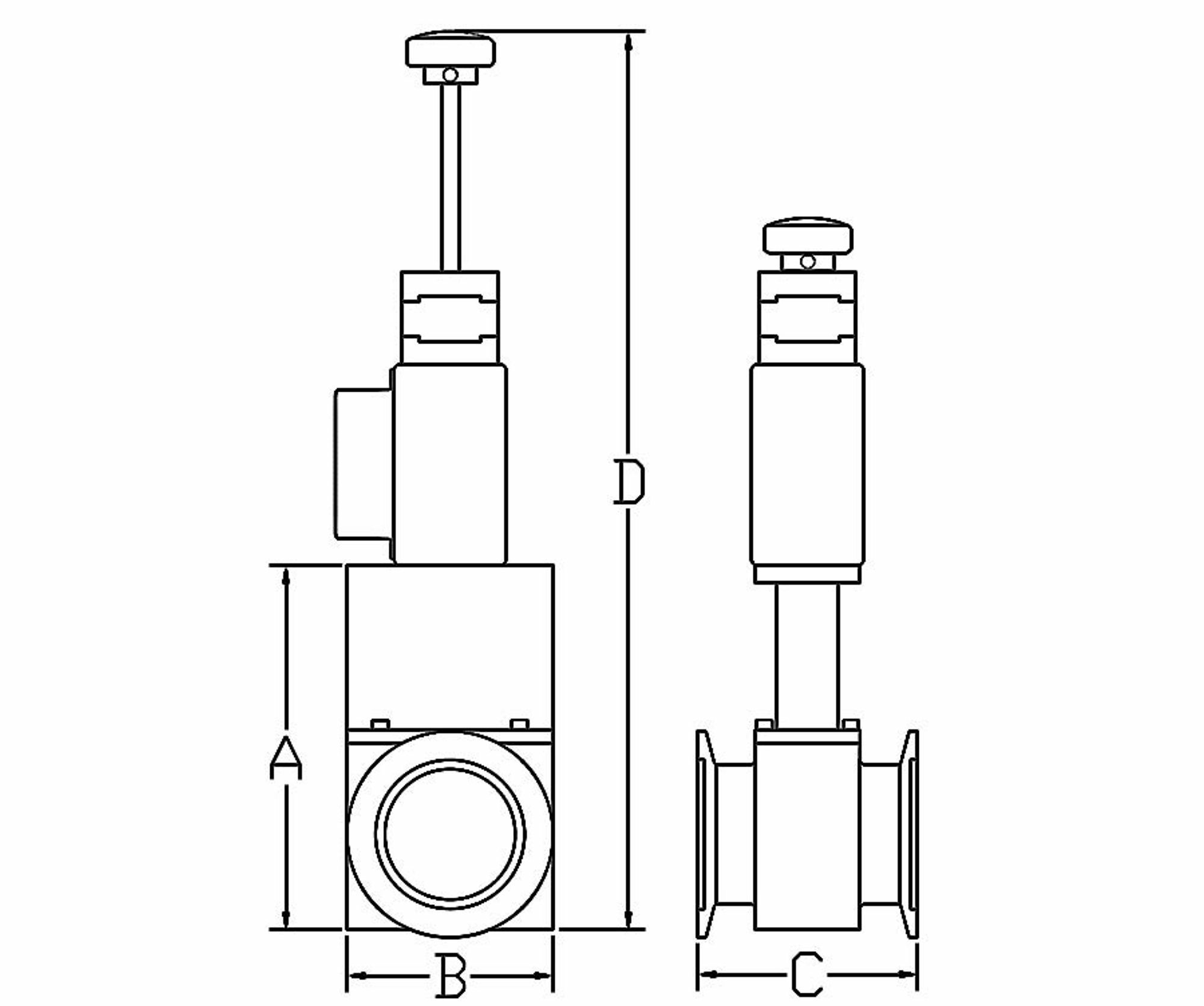

Mini Gate Valve Electrical

Size A (inch) B (inch) C (inch) D (inch)
KF16 3.32 1.87 2.76 10.49
KF25 3.32 1.87 2.76 10.49
KF40 5.22 2.95 3.15 12.39
KF50 5.22 2.95 3.15 12.39

* Subject to change without notice

The Manual Mini Gate Valve works with handle locking mechanism which was to provide reliable gate sealing without any friction. The locking mechanism locks the gate in the closed position.

Compact and small footprint, the Gate Valve has proven its outstanding reliability.

GVM-M
  • Vacuum range: 1 x 10-7  Torr
  • Leak test: 1 x 10-9 mbar ls-1
  • Bake temperature: 100 oC
  • Seal: Viton O-ring
  • Life: 50,000 Cycle
  • Mounting Position: Any

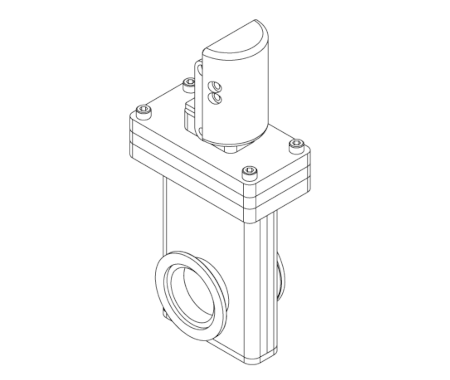

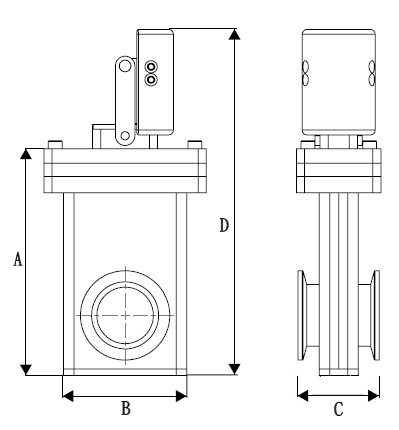

Mini Gate Valve Manual

Size A (inch) B (inch) C (inch) D (inch) Unit Price
KF16 3.32 1.87 2.76 6.50 $708
KF25 3.32 1.87 2.76 6.50 $750
KF40 5.51 2.99 1.97 9.17 $830
KF50 5.22 2.95 3.15 8.40 $910

* Subject to change without notice
