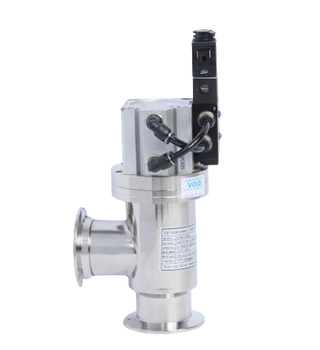

Gemini
An ideal solution for a chamber that both vacuum and pressure. When vacuum chamber pressure is exposed to above atmosphere, this valve seals tight without a leak. Available in size KF16-KF50.
Available in:
- Pneumatic configuration
- Flanges in KF, ISO, and CF configuration
- Vacuum range: 1 x 10-7 Torr
- Pressure range: 2 ATM
- Leak test: 1 x 10-9 mbar l/s
- Bake temperature: 150 oC
- Life: 500,000 Cycle
- Double acting
- Seal: Viton O-Ring

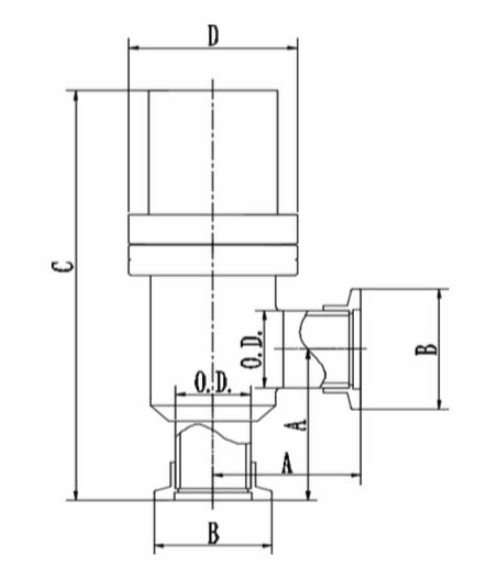

Pneumatic Gemini Valve
| Size | OD | A (inch) | B (inch) | C (inch) | D (inch) |
| KF16 | 0.75 | 2.00 | 1.18 | 6.28 | 2.48 |
| KF25 | 1.00 | 1.88 | 1.57 | 5.67 | 2.48 |
| KF40 | 1.50 | 2.25 | 2.17 | 6.91 | 3.07 |
| KF50 | 2.00 | 3.52 | 2.95 | 8.43 | 3.46 |
* 24VDC and 110VAC available
* Subject to change without notice
