Standard

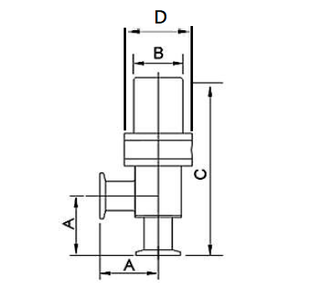

Pneumatic Angle - KF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC

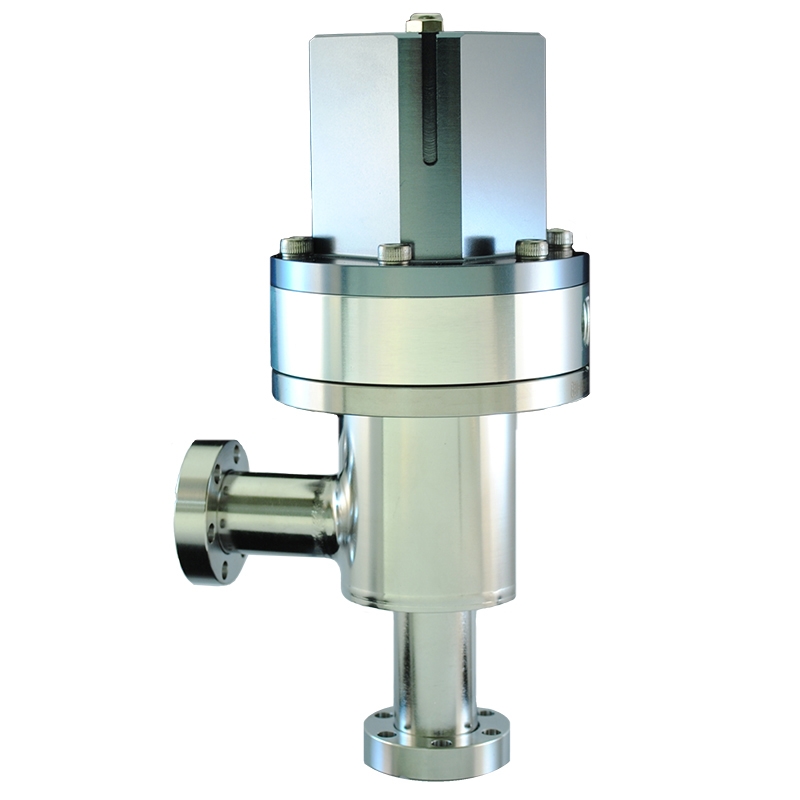

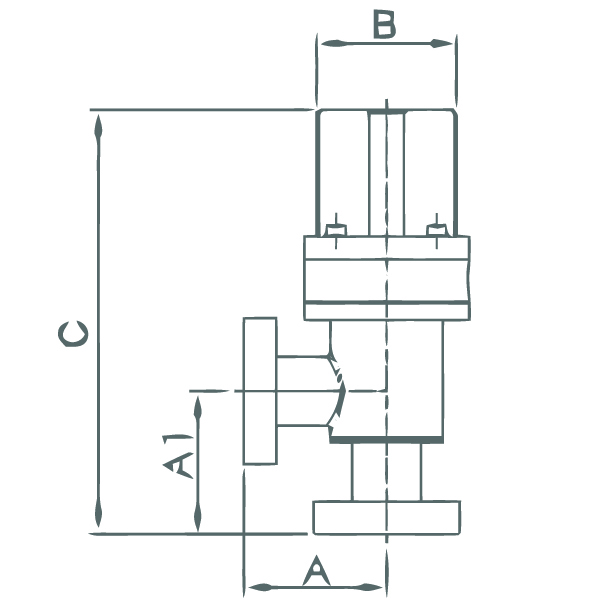

Pneumatic Angle - CF
- HV Series - Viton seal at bonnet
Pneumatic Angle - CF, UHV
- UHV Series - Copper seal at bonnet

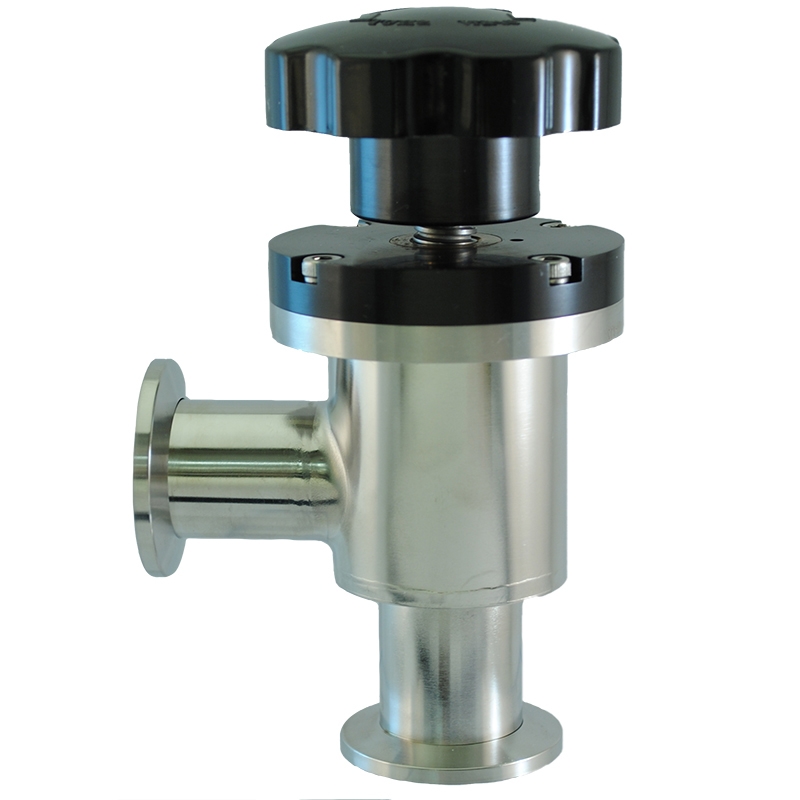

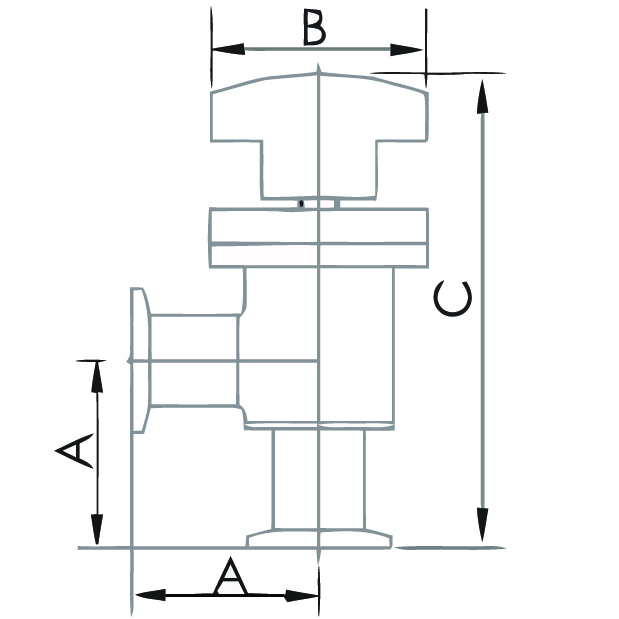

Manual Angle - KF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC

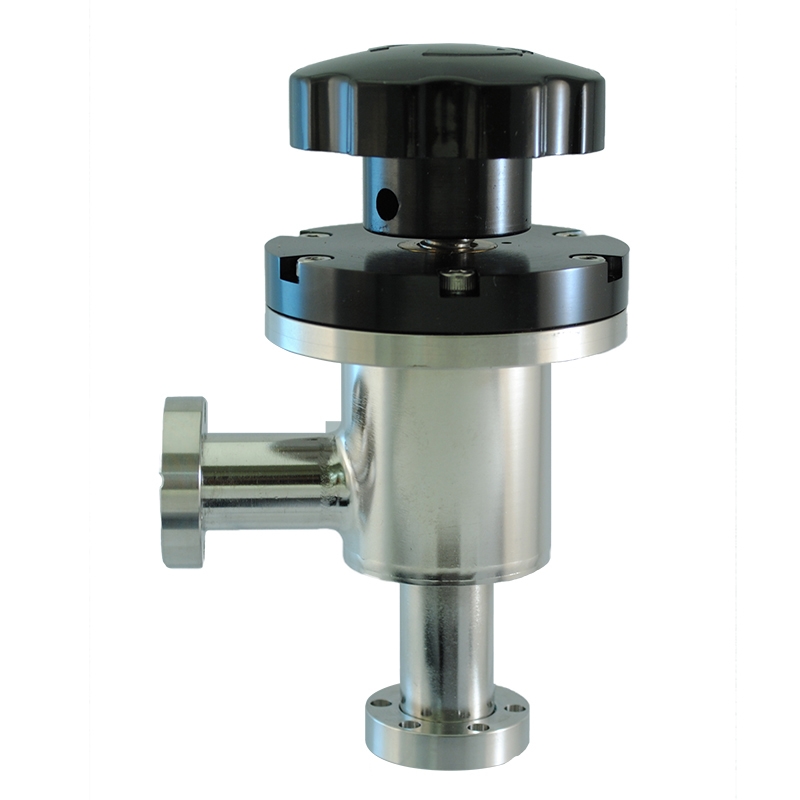

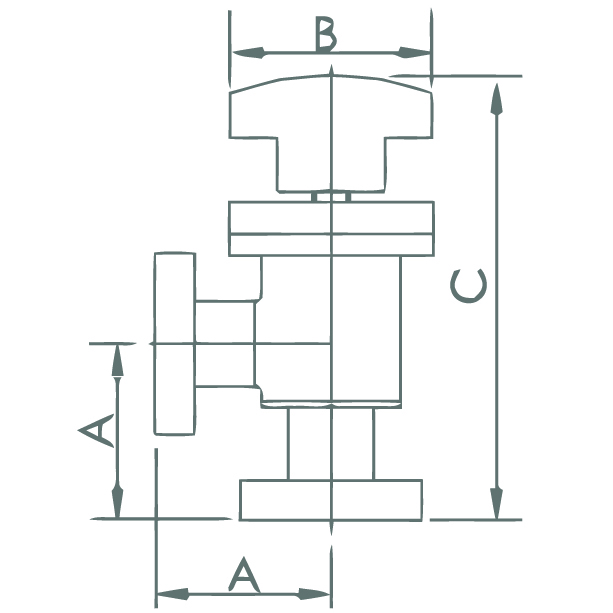

Manual Angle - CF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
Manual Angle - CF, UHV
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Copper Gasket

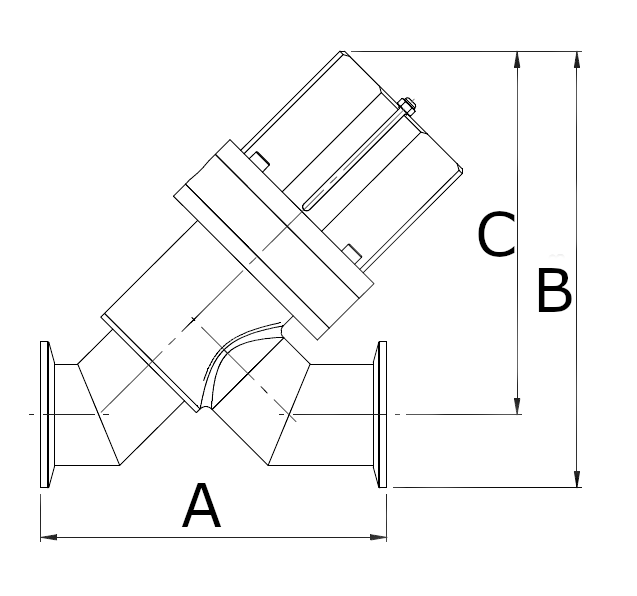

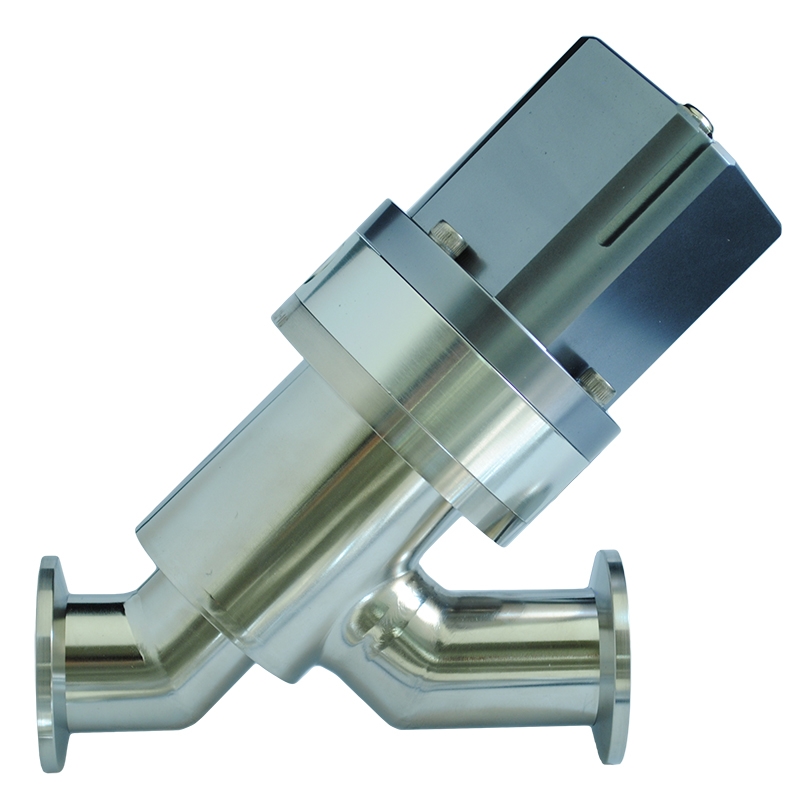

Pneumatic In-Line - KF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC

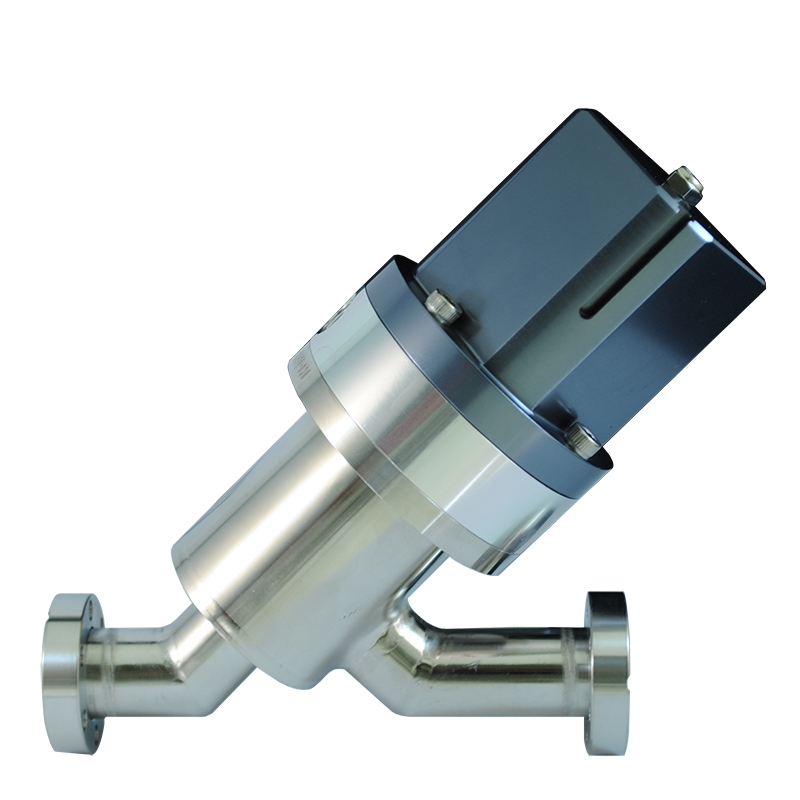

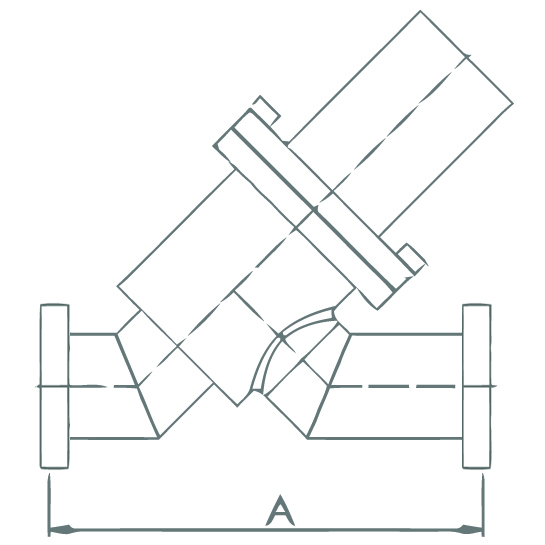

Pneumatic In-Line - CF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC
Pneumatic In-Line - CF, UHV
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Copper Gasket
- Position indicator: 24 VDC or 120 VAC

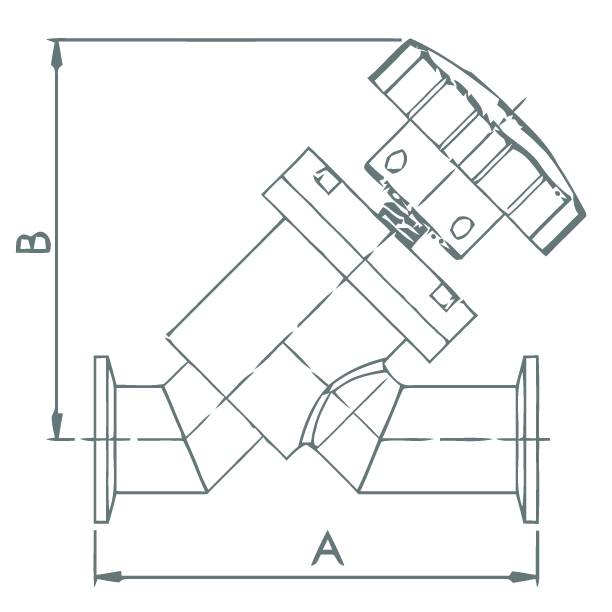

Manual In-Line - KF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC

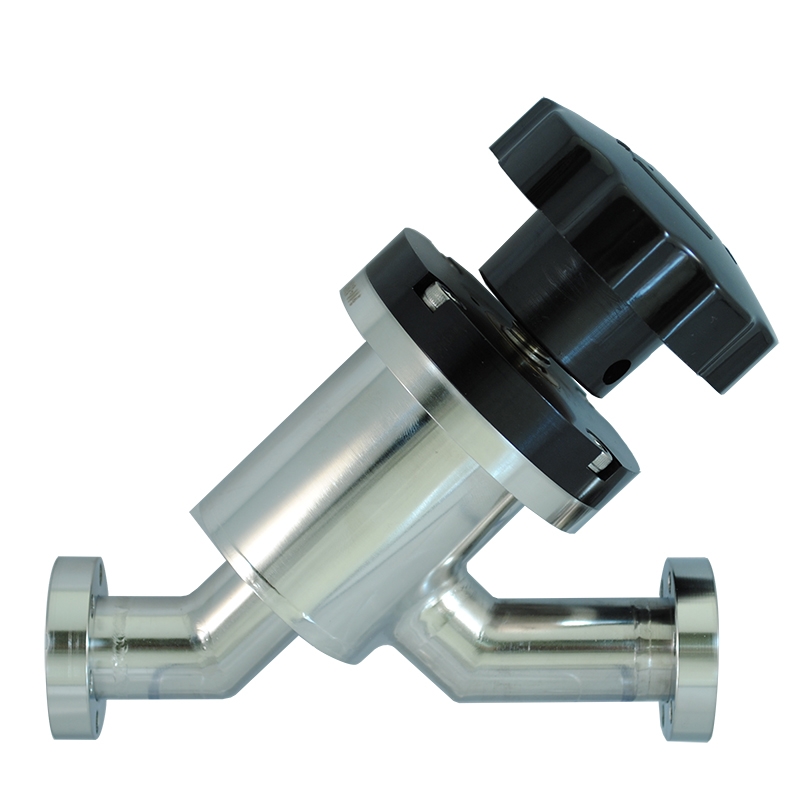

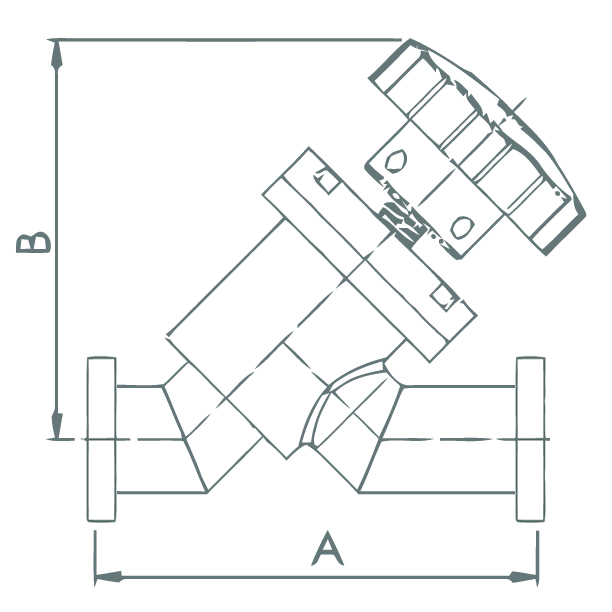

Manual In-Line - CF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
Manual In-Line - CF, UHV
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Copper Gasket
Pneumatic Z-Style - KF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC

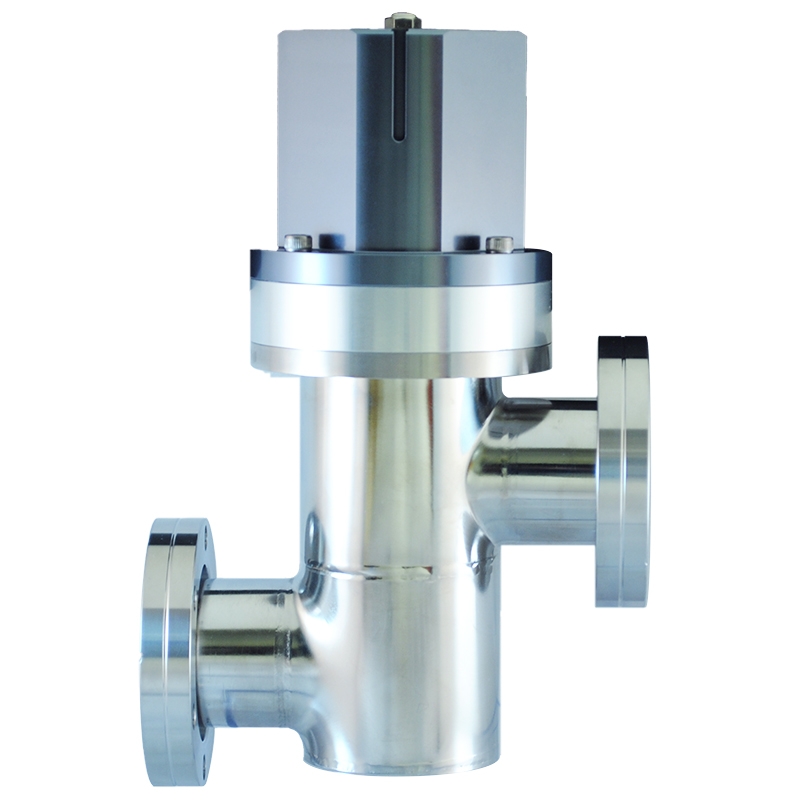

Pneumatic Z-Style - CF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC
Manual Z-Style - KF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC

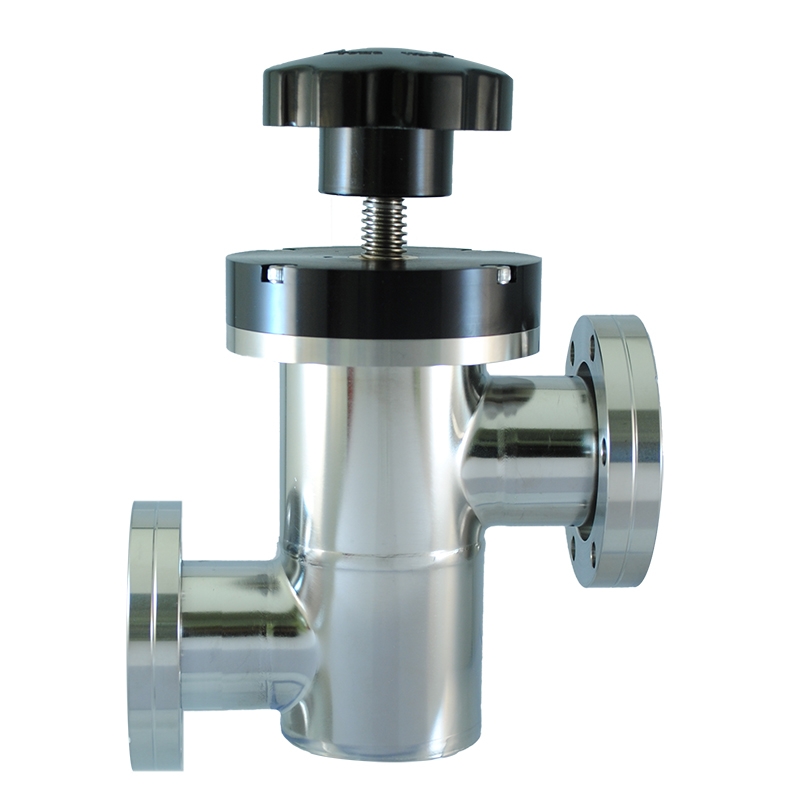

Manual Z-Style - CF
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC

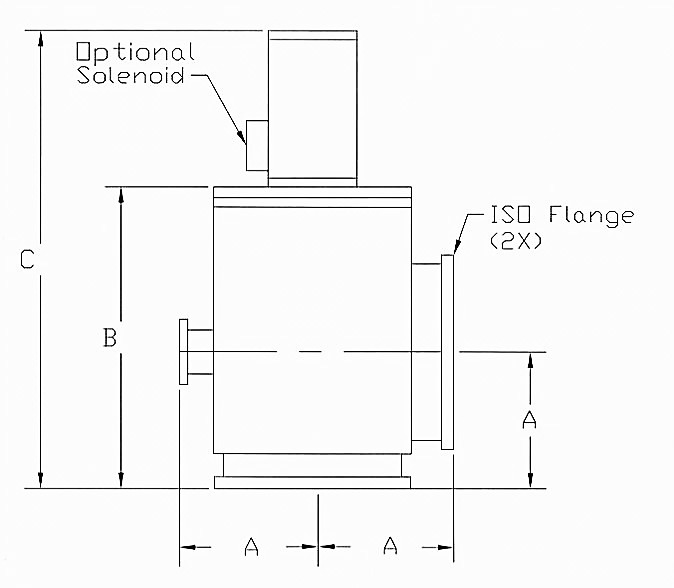

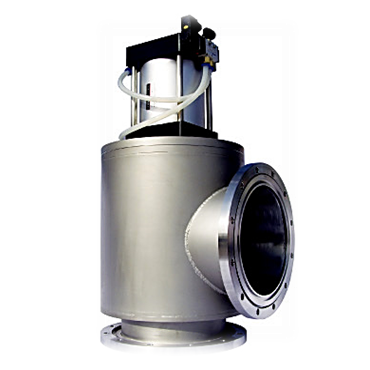

Pneumatic Large Angle - ISO
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 std cc/sec He
- Bake temperature: 120 oC
- Seal material: Viton
- Position indicator: 24 VDC or 120 VAC
