Toggle
Quick action, open or close the valve with a flick of a finger. The handle position also gives a clear indication whether the valve is open or close. Used where frequent on/off is required, such as in leak checking. Detent in both direction. Mechanical lock is available.
Available in:
- Manual configuration
- Flanges in KF, ISO, and CF configuration
- Vacuum range: 1 x 10-7 Torr
- Pressure range: 2 ATM
- Leak test: 1 x 10-9 mbar l/s
- Bake temperature: 120 oC
- Life: 1 Million Cycle
- Seal: Viton O-Ring

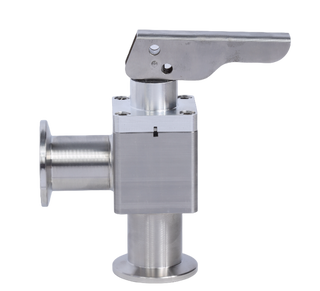

Manual Angle Toggle Valve
| Size | A (inch) | B (inch) | Unit Price |
| KF16 | 2.05 | 6.21 | $220 |
| KF25 | 2.05 | 6.21 | $250 |
| KF40 | 2.55 | 8.74 | $300 |
| KF50 | 3.05 | 9.40 | $450 |
* Subject to change without notice
- Vacuum range: 1 x 10-7 Torr
- Pressure range: 2 ATM
- Leak test: 1 x 10-9 mbar l/s
- Bake temperature: 120 oC
- Life: 1 Million Cycle
- Seal: Viton O-Ring

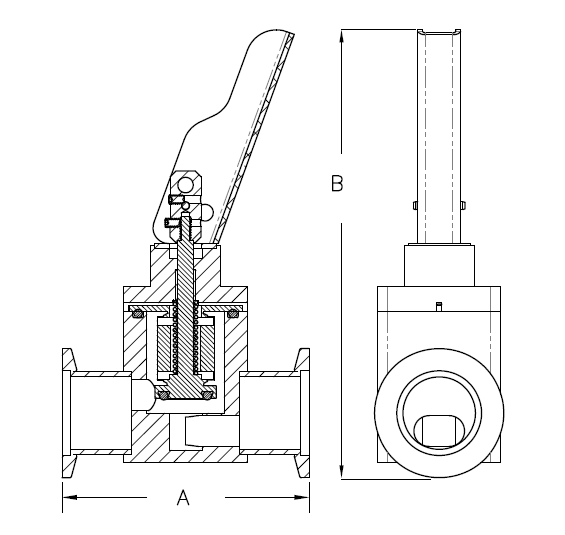

Manual Inline Toggle Valve
| Size | A (inch) | B (inch) | Unit Price |
| KF16 | 3.00 | 5.43 | $231 |
| KF25 | 3.00 | 5.43 | $263 |
| KF40 | 5.55 | 8.18 | $315 |
| KF50 | 5.11 | 8.18 | $473 |
* Subject to change without notice
