Shutter

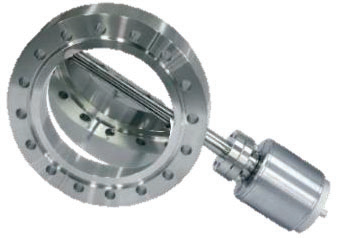

Shutter, bellow sealed
Viewport can become contaiminated from the coating material. Shutter is used to prevent deposition onto the viewport, thus preserve the quality of viewport. Shutter can be locked in either open or close position.
Available in manual or pneumatic configuration.
- Material: 304
- Max. bake temperature: 250 0C
- Operating temperature : 120° C to 150° C
- Pressure range: 1x10-11 Torr

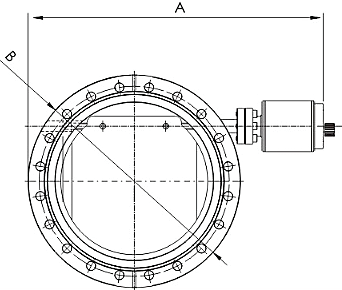

| A | B | ||||
| P/N | Flange | inch | mm | inch | mm |
| STR-CF2.75 | CF2.75 | 5.98 | 152 | 2.72 | 69 |
| STR-CF4.5 | CF4.5 | 7.76 | 197 | 4.49 | 114 |
| STR-CF6.0 | CF6.0 | 9.25 | 235 | 5.98 | 152 |
| STR-CF8.0 | CF8.0 | 11.22 | 285 | 7.95 | 202 |
Pneumatic Shutter
- Adjustable stop
- Flow regulator: Standard
- Solenoid operated: 100 psi, max
- Bake temperature: 150° C
