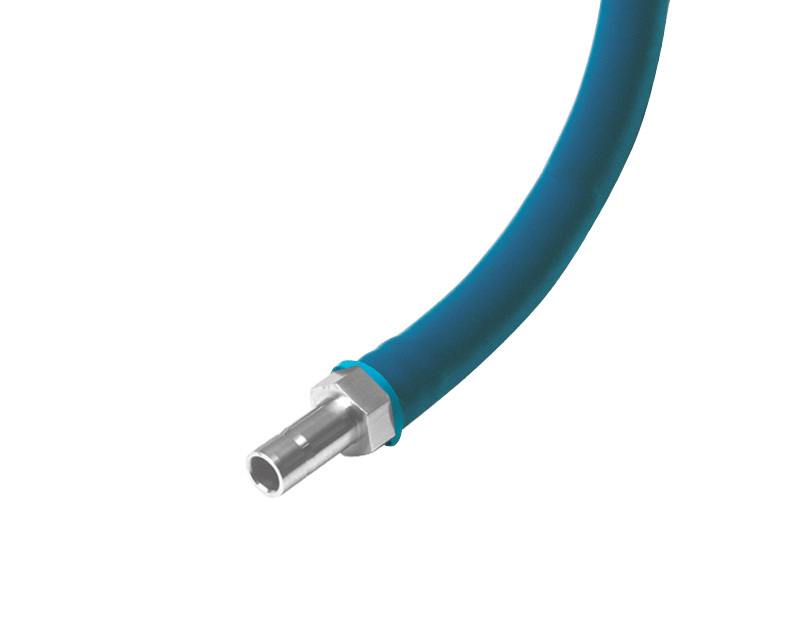

Multipurpose Push-on Hoses
Features
- Cover: weatherproof, abrasion-resistant, oil-resistant synthetic rubber
- Reinforcement: single-braid high-strength synthetic fiber for maximum strength and end-connection retention
- Core tube: highly oil-resistant rubber

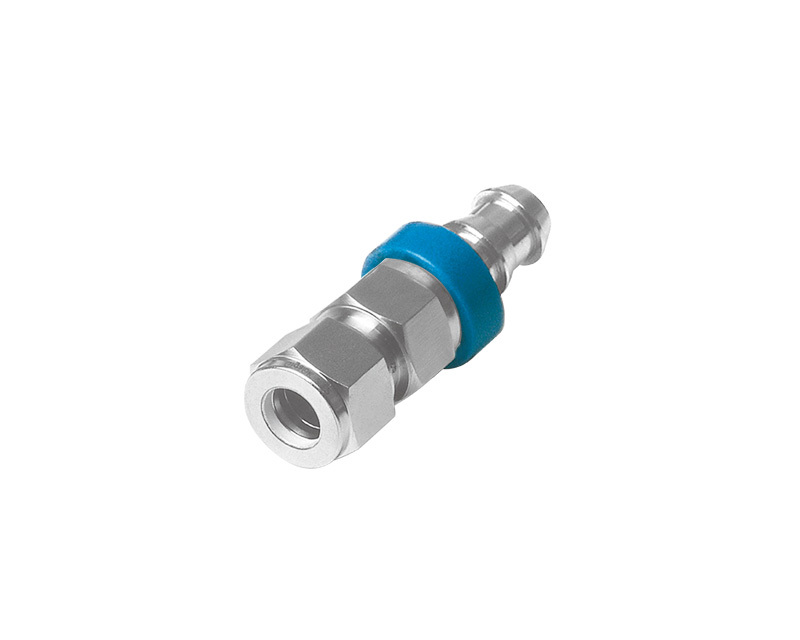

- End connection materials: stainless steel and brass
- Hose colors: blue, black, green, gray, red, yellow
- Nominal hose size: 1/4" to 3/4"
- Working pressure up to: 300 psig (20.7 bar)
- Working temperature: −40 °F to 200 °F (−40 °C to 93 °C)
- End connections reusable
- Custom length available
| Nominal Hose Size in. (mm) |
Inside Diameter in. (mm) |
Min. Inside Bend Radius in. (mm) |
Temperature Range °F (°C) |

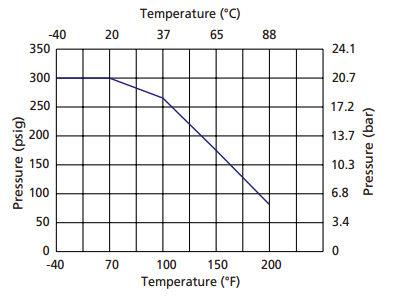

Working Pressure at −40 to 70 °F psig (bar) |
Min. Burst Pressure at 70 °F psig (bar) |
|---|---|---|---|---|---|
| 1/4 (6.4) | 0.26 (6.6) | 2.50 (63.5) | −40 to 200 (−40 to 93) | 300 (20.7) | 1200 (82.7) |
| 3/8 (9.5) | 0.39 (9.9) | 3.00 (76.2) | |||
| 1/2 (12.7) | 0.50 (12.7) | 5.00 (127) | |||
| 3/4 (19.0) | 0.76 (19.3) | 7.00 (178) |
