This valve is designed to pressureize lines with air to clean out products or cleaning fluid.
It is normally closed to prevent backflow. Can be used as a check
Features:
Max. Temperature: 212 F
Max. pressure: 145 psi
|
|
|
- Valve Type: CVAB
- P/N: CVAB-150-EPDM-CL-QC-316
- (Quick-Connect)
|
|
|

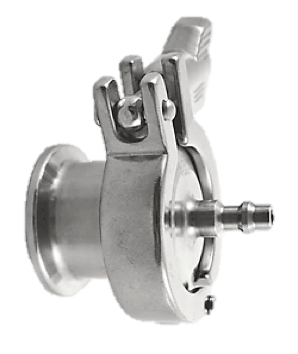

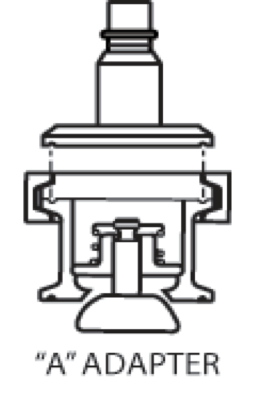

Air Blow , Check Valve, EPDM Ball & Seals
|
| Size | Flange | Body Ht | Cap Ht | Price |
|---|
|
|---|
| 1.0"-1.5" |
1.98 |
1.30 |
1.26 |
$342.30 |
| 2.0" |
2.52 |
1.30 |
1.26 |
$348.75 |
| 2.5" |
3.05 |
1.30 |
1.26 |
$448.85 |
| 3.0" |
3.58 |
1.30 |
1.26 |
$553.55 |
| 4.0" |
4.68 |
1.30 |
1.26 |
$629.20 |
|
|
|

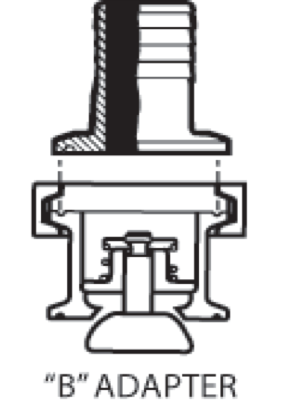

- Valve Type: CVAB
- P/N: CVAB-150-EPDM-CL-BARB-316
- (Hose Barb)
|
|
|

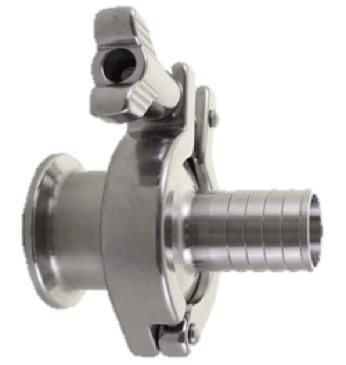

Air Blow Check Valve, Hose Barb, EPDM Ball & Seal
|
| Size | Flange | Body Ht | Cap Ht | Price |
|---|
|
|---|
| 1.0"-1.5" |
1.98 |
1.30 |
1.70 |
$363.75 |
| 2.0" |
2.52 |
1.30 |
1.70 |
$370.65 |
| 2.5" |
3.05 |
1.30 |
1.70 |
$477.00 |
| 3.0" |
3.58 |
1.30 |
1.70 |
$553.55 |
| 4.0" |
4.68 |
1.30 |
1.70 |
$629.20 |
|
|
|
- Valve Type: CVAB
- P/N: CVAB-150-EPDM-WE-FPT-316
- (Female NPT)
|
|
|

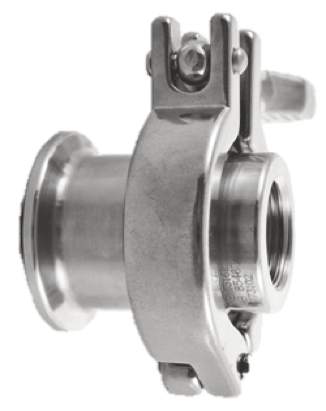

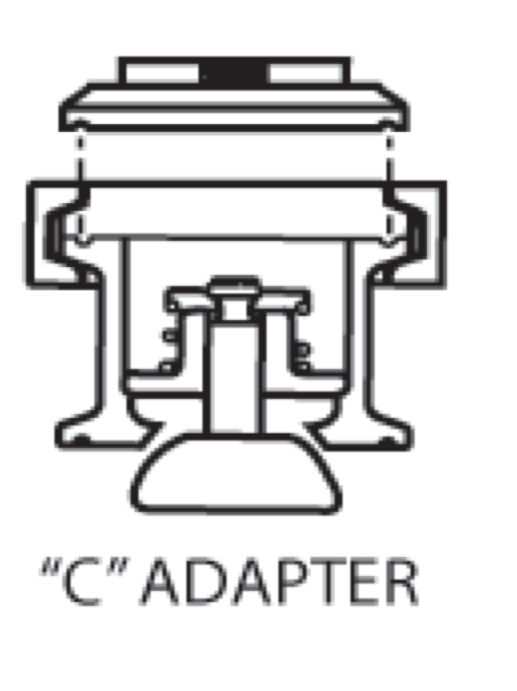

Air Blow, Check Valve, Female NPT, EPDM Ball & Seals
|
| Size | Flange | Body Ht | Cap Ht | Price |
|---|
|
|---|
| 1.0"-1.5" |
1.98 |
1.30 |
0.60 |
$363.75 |
| 2.0" |
2.52 |
1.30 |
0.60 |
$370.65 |
| 2.5" |
3.05 |
1.30 |
0.60 |
$477.00 |
| 3.0" |
3.58 |
1.30 |
0.60 |
$553.55 |
| 4.0" |
4.68 |
1.30 |
0.60 |
$629.20 |
|
|
|
- Valve Type: CVS
- P/N: CVS-100-V-CL-316
- Clamp end = CL
- Weld End = WT
|
|
|

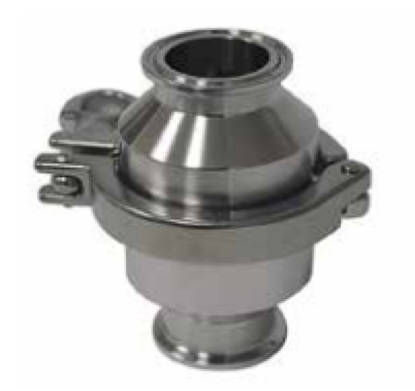

Spring Check Valve, Clamp End
|

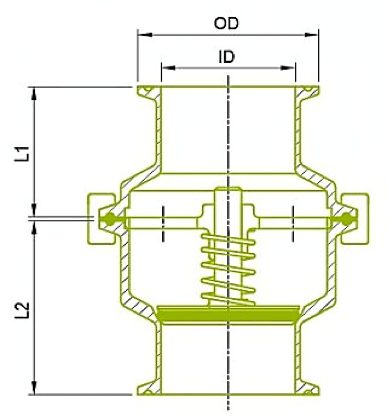

| Size | ID in | OD in | L1 in | L2 in | Price |
|---|
|
|---|
| 1/2" |
0.37 |
0.99 |
1.10 |
1.60 |
$392 |
| 3/4" |
0.62 |
0.99 |
1.10 |
1.60 |
$441 |
| 1.0" |
0.87 |
1.99 |
1.37 |
1.92 |
$431 |
| 1.5" |
1.37 |
1.99 |
1.44 |
1.92 |
$430 |
| 2.0" |
1.87 |
2.52 |
1.44 |
1.92 |
$544 |
| 2.5" |
2.37 |
3.05 |
1.44 |
1.92 |
$781 |
| 3.0" |
2.87 |
3.58 |
1.44 |
1.92 |
$1,003 |
| 4.0" |
3.84 |
4.69 |
1.88 |
2.15 |
$1,285 |
|
|
|
- Max. pressure: 150 psi
- Temperature range: 15 F to 200 F
- Wetted surface: 316L
- Ball: PTFE
- Connection type: Any
- Valve Type: CVYB
- P/N: CVYB-150-TFE-CL-316
|
|
|

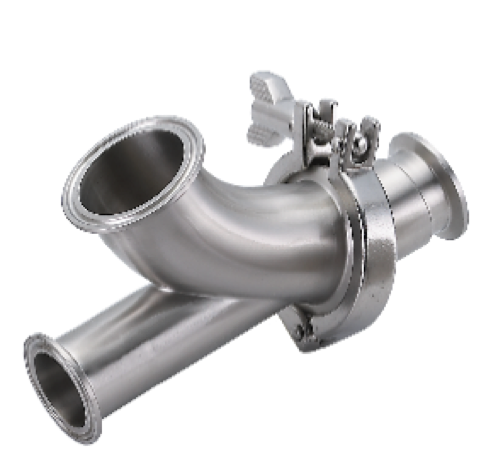

Y-Ball, Check Valve, Clamp End, 316L
|
|
When liquid flows through the valve, the ball is forced into the branch of the valve allowing full flow. When liquid stops, equalizing the pressure, the ball drops back into the seat, preventing backflow. Should reverse flow occurs, the differential pressure will cause the ball to seal firmly against the seat preventing leakage.
|
| | | Cracking pressure, in H20 | Sealing pressure, PSI | | | |
|---|
| Valve Size | Clamp Size | Vertical | Horizontal | Vertical | Horizontal | Cv | Wt (lb) | Price |
|---|
|
|---|
| 1 1/2 |
2 |
2 |
0.5 |
3.6 |
3.9 |
60 |
4.9 |
$788 |
| 2 |
2.5 |
2.5 |
0.5 |
2.6 |
3.7 |
80 |
6.6 |
$984 |
| 2 1/2 |
3 |
3 |
0.5 |
1.6 |
2.4 |
100 |
10.5 |
$1,294 |
| 3 |
4 |
3.8 |
0.5 |
1.9 |
2.6 |
140 |
17.5 |
$2,111 |
| Size | A | B | C | D | E | F |
|---|
|
|---|
| 1 1/2 |
7.5 |
3.3 |
1.36 |
1.87 |
1.98 |
2.51 |
| 2 |
8.5 |
3.9 |
1.86 |
2.33 |
2.51 |
3.04 |
| 2 1/2 |
10 |
4.5 |
2.37 |
2.87 |
3.04 |
3.57 |
| 3 |
11.5 |
5.3 |
2.87 |
3.83 |
3.57 |
4.68 |
