45° Male Elbows

45° Male Elbows

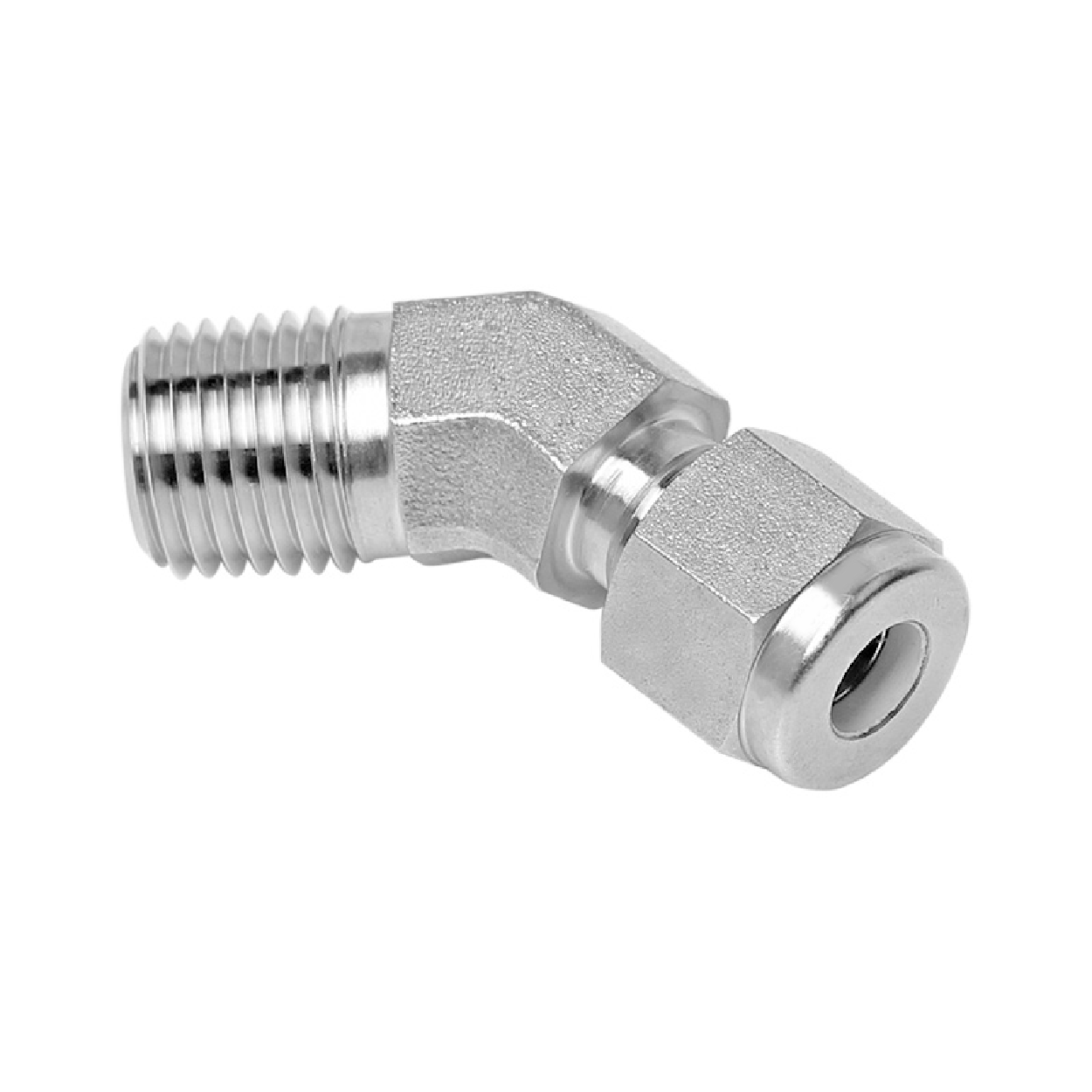

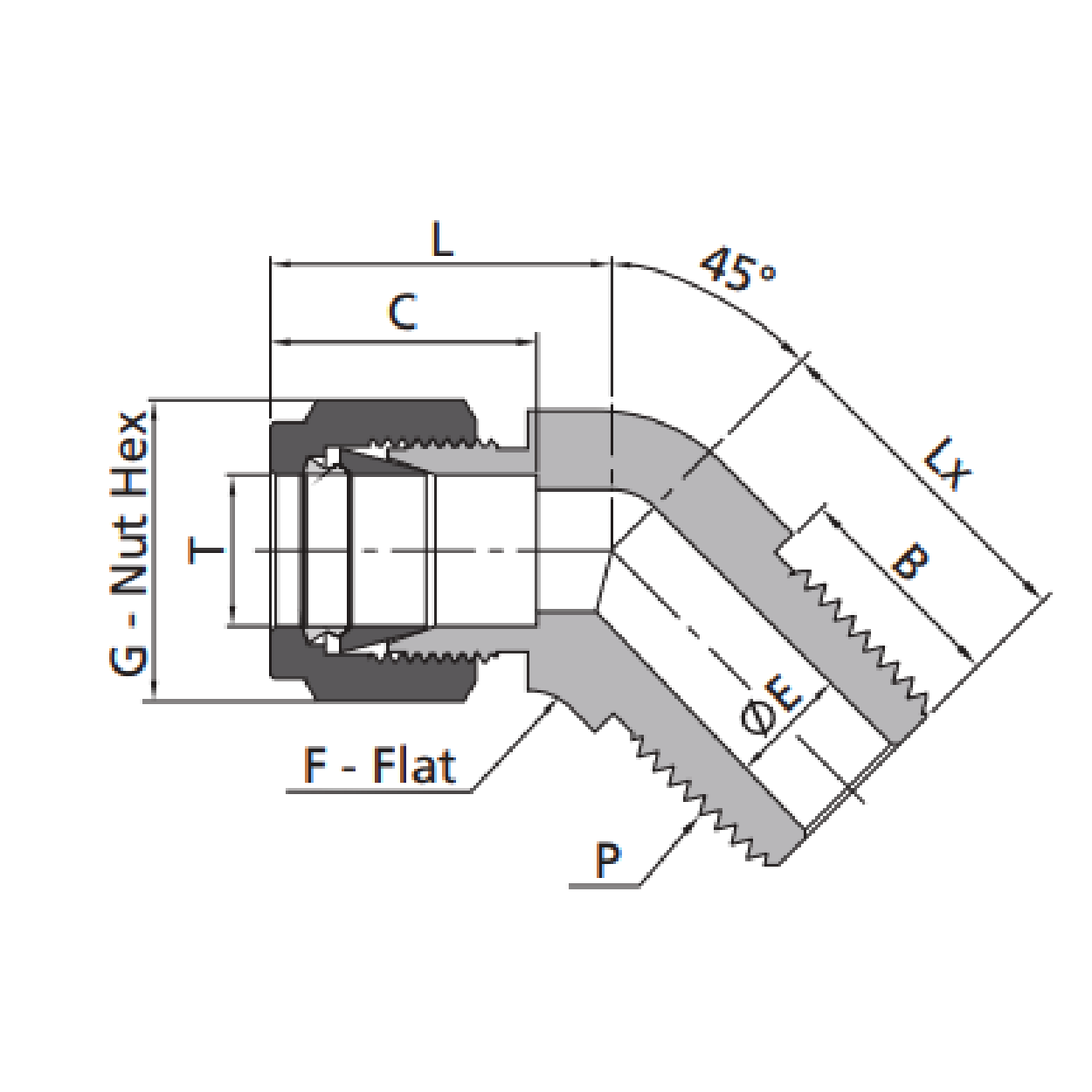

45 Male Elbow - Product 45 Male Elbow - Drawing
Fractional Tube Dimensions (inch) NPT Thread
T-Tube O.D. P-NPT Size Part Number L C G F E B Lx
1/16 1/16 SS-VM-FL1-NS1 0.82 0.34 0.31 0.44 0.05 0.38 0.66
1/8 1/8 SS-VM-FL2-NS2 0.82 0.50 0.44 0.44 0.09 0.38 0.66
3/16 1/8 SS-VM-FL3-NS1 0.85 0.54 0.50 0.44 0.12 0.38 0.58
1/4 1/8 SS-VM-FL4-NS2 0.97 0.60 0.56 0.50 0.19 0.38 0.65
1/4 1/4 SS-VM-FL4-NS4 0.97 0.60 0.56 0.50 0.19 0.56 0.83
5/16 1/8 SS-VM-FL5-NS2 0.94 0.64 0.63 0.56 0.19 0.38 0.66
3/8 1/8 SS-VM-FL6-NS2 1.10 0.66 0.69 0.63 0.19 0.38 0.72
3/8 1/4 SS-VM-FL6-NS4 1.10 0.66 0.69 0.63 0.28 0.56 0.90
3/8 3/8 SS-VM-FL6-NS6 1.15 0.66 0.69 0.81 0.28 0.56 0.95
1/2 3/8 SS-VM-FL8-NS6 1.26 0.90 0.87 0.81 0.38 0.56 0.95
5/8 1/2 SS-VM-FL10-NS8 1.20 0.96 1.00 0.94 0.47 0.56 1.17
3/4 3/4 SS-VM-FL12-NS12 1.34 0.96 1.13 1.06 0.62 0.75 1.22
7/8 3/4 SS-VM-FL14-NS12 1.59 1.02 1.25 1.25 0.62 0.75 1.27
1 1 SS-VM-FL16-NS16 1.59 1.23 1.50 1.37 0.88 0.94 1.49

Units: inch
