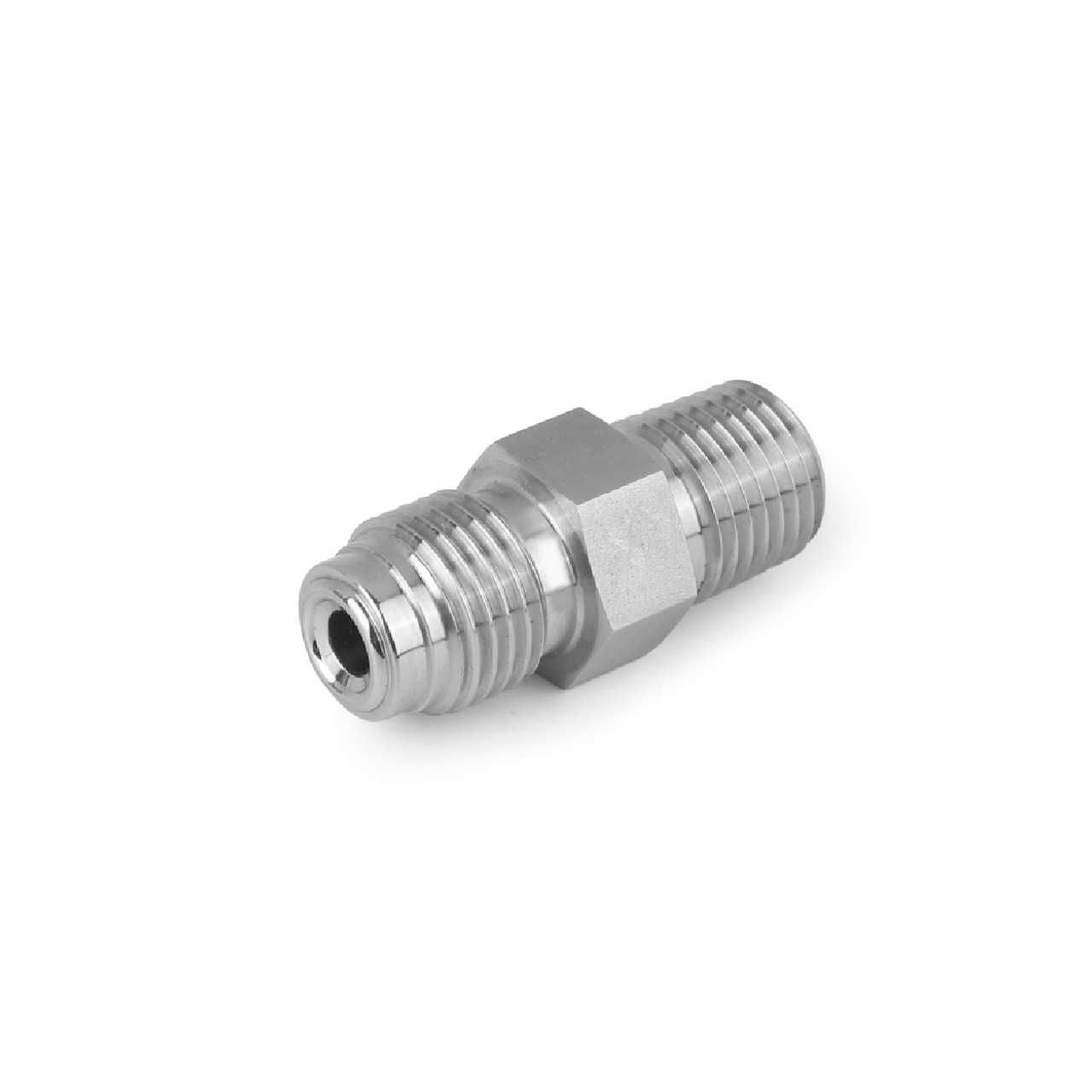

Body to Male NPT
| FR Body to Male NPT | Dimensions, in. (mm) | Working Pressure, psig (bar) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| FR Size (in.) | P-NPT Size | Basic Ordering Number | L | B | E | F | 6L | CU | NI |
| 1/8 | 1/16 | -CM-FR2-NS1 | 1.07 (27.2) | 0.38 (9.7) | 0.09 (2.3) | 3/8 (9.5) | 9000 (620) | 7200 (496) | 9000 (620) |
| 1/8 | 1/8 | -CM-FR2-NS2 | 1.07 (27.2) | 0.38 (9.7) | 0.09 (2.3) | 7/16 (11.1) | 9000 (620) | 7200 (496) | 9000 (620) |
| 1/4 | 1/8 | -CM-FR4-NS2 | 1.31 (33.3) | 0.38 (9.7) | 0.18 (4.6) | 5/8 (15.9) | 10000 (690) | 6400 (440) | 8000 (551) |
| 1/4 | 1/4 | -CM-FR4-NS4 | 1.49 (37.8) | 0.56 (14.2) | 0.18 (4.6) | 5/8 (15.9) | 10000 (690) | 6400 (440) | 8000 (551) |
| 1/2 | 1/4 | -CM-FR8-NS4 | 1.65 (41.9) | 0.56 (14.2) | 0.28 (7.1) | 15/16 (23.8) | 4300 (296) | 2800 (192) | 3500 (241) |
| 1/2 | 3/8 | -CM-FR8-NS6 | 1.65 (41.9) | 0.56 (14.2) | 0.38 (9.7) | 15/16 (23.8) | 4300 (296) | 2800 (192) | 3500 (241) |
| 1/2 | 1/2 | -CM-FR8-NS8 | 1.84 (46.7) | 0.75 (19.1) | 0.40 (10.2) | 15/16 (23.8) | 4300 (296) | 2800 (192) | 3500 (241) |
| 3/4 | 3/4 | -CM-FR12-NS12 | 2.19 (55.6) | 0.75 (19.1) | 0.62 (15.7) | 1 15/16 (33.3) | 3700 (254) | 2400 (165) | 3000 (206) |
| 1 | 1 | -CM-FR16-NS16 | 2.47 (62.7) | 0.94 (23.9) | 0.87 (22.1) | 1 5/8 (41.3) | 3000 (206) | 1900 (130) | 3000 (206) |
Units: inch
