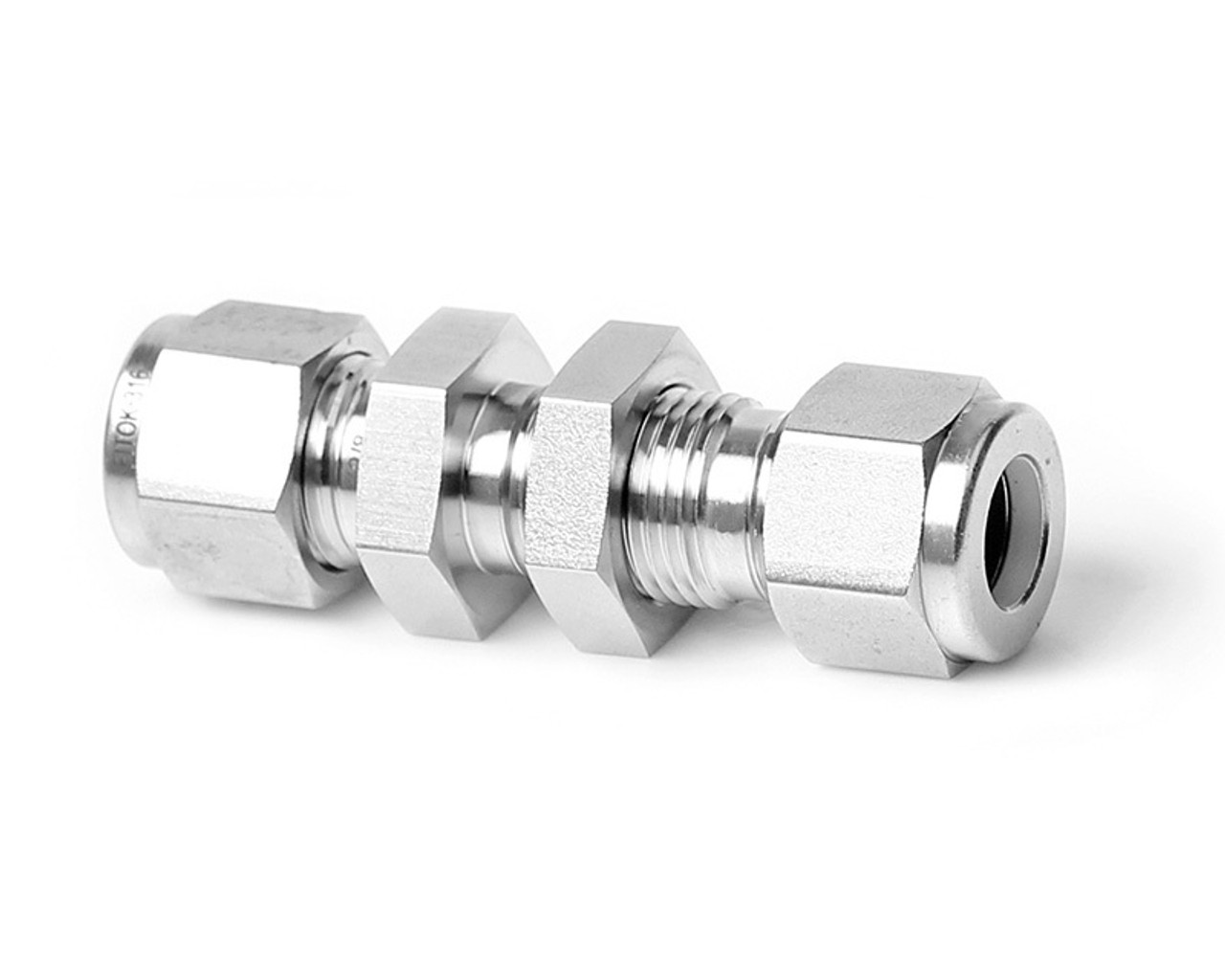

Bulkhead Reducing Unions
| Fractional Tube | Dimensions (inch) | Panel | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T-Tube O.D. | Tx-Tube O.D. | Basic Ordering Number | L | C | E | G | F | Cx | Gx | Panel Hole Size | Max. Panel Thickness |
| 1/4 | 1/8 | -BU-FL4-FL2 | 2.17 | 0.60 | 0.09 | 0.56 | 0.63 | 0.50 | 0.44 | 0.45 | 0.40 |
| 3/8 | 1/4 | -BU-FL6-FL4 | 2.39 | 0.66 | 0.19 | 0.69 | 0.75 | 0.60 | 0.56 | 0.58 | 0.44 |
| 1/2 | 1/4 | -BU-FL8-FL4 | 2.63 | 0.90 | 0.19 | 0.87 | 0.94 | 0.60 | 0.56 | 0.76 | 0.50 |
Units: inch
