Butterfly Valve


Specification:

  • Max. pressure: 140 psi
  • Max. temperature: 15⁰ F-200⁰ F
  • Max. vacuum: 0.4" Hg @ 68⁰ F
  • Valve Type: BFV
  • 100% tested before shipping

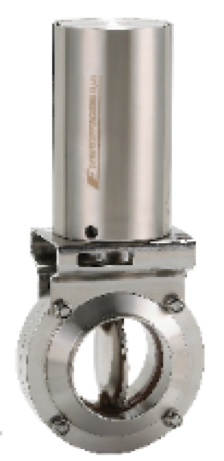

  • Manual, Pneumatic or Electric actuated

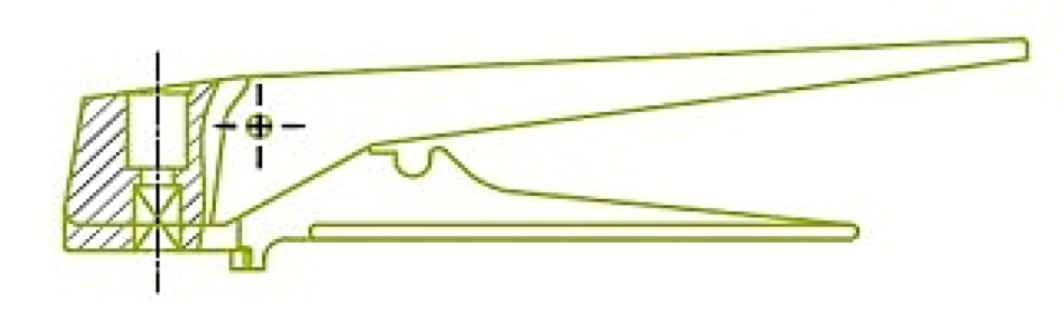

Trigger Handle = TG

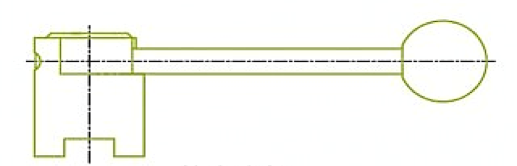

  Pull Handle = PL

Part Number System: Valve Type-Size-Gasket-Connection-Actuator-Boby Material
Example: Butterfly Valve, 1.00", Viton, Clamp, Trigger Handle, 316SS
PN: BFV-100-V-CL-TG-316

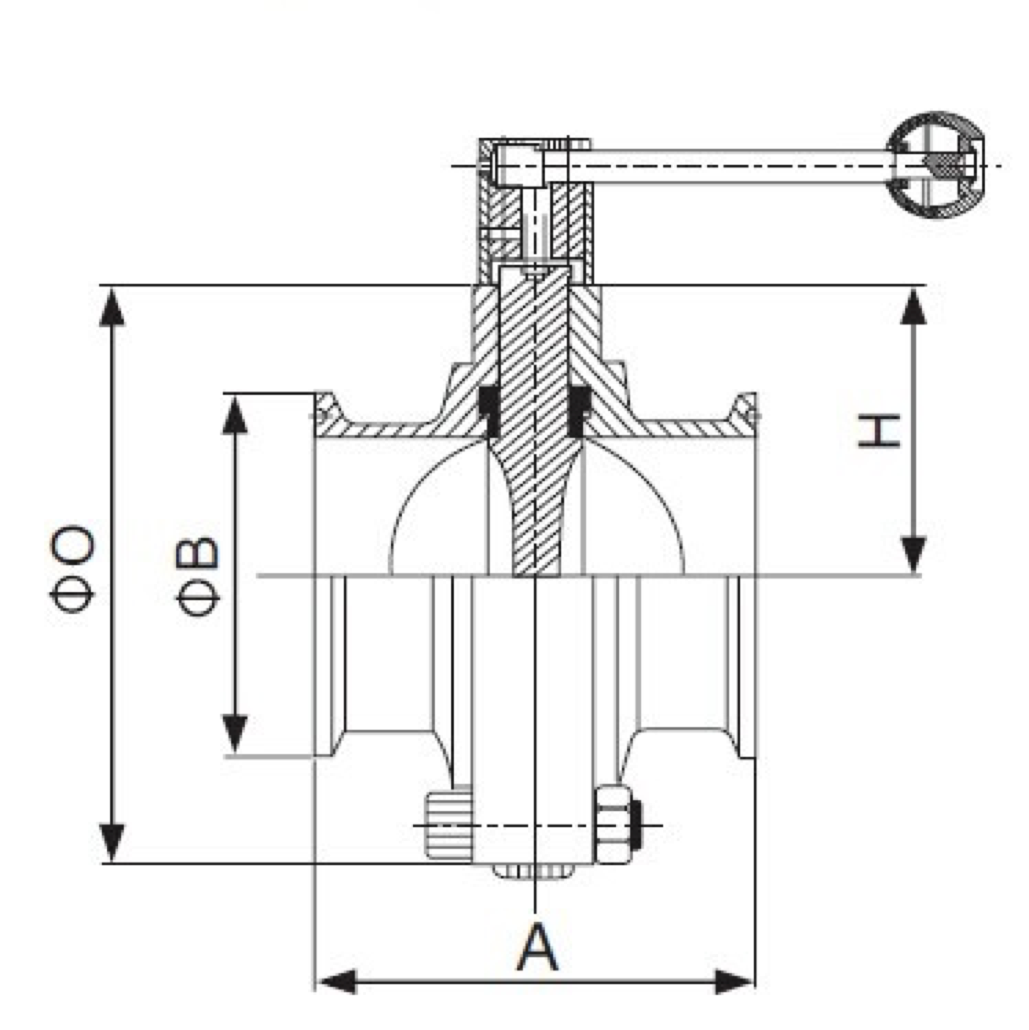

SizeA mm (in)B mm (in)O mm (in)H mm (in)Part NumberPrice
1.0" 68 (2.68) 50.5 (1.99) 78 (3.07) 39 (1.54) BFV-100-EP-CL-TG-316 $89.30
1.5" 72 (2.83) 50.5 (1.99) 80 (3.15) 40 (1.57) BFV-150-EP-CL-TG-316 $89.30
2.0" 74 (2.91) 64.0 (2.52) 100 (3.94) 50 (1.97) BFV-200-EP-CL-TG-316 $108.70
2.5" 80 (3.15) 77.5 (3.05) 117 (4.61) 58.5 (2.30) BFV-250-EP-CL-TG-316 $140.30
3.0" 80 (3.15) 91.0 (3.58) 129 (5.08) 64.5 (2.54) BFV-300-EP-CL-TG-316 $166.00
4.0" 90 (3.54) 119 (4.69) 160 (6.30) 80 (3.15) BFV-400-EP-CL-TG-316 $242.60
6.0" 120 (4.72) 167 (6.57) 225 (8.86) 112.5 (4.43) BFV-600-EP-CL-TG-316 Call





 Torque in-lbPSIFlowWt
Size Silicon (Si) EPDM (EP) Viton (V) psi Cv lb
1.0" 20 75 70 140 23 2
1.5" 40 130 125 140 80 3
2.0" 55 165 175 140 230 4
2.5" 70 210 220 110 264 4
3.0" 165 350 310 110 372 4
4.0" 350 540 450 85 800 9
6.0" 700 1550 n/a 60 1200 14

!
