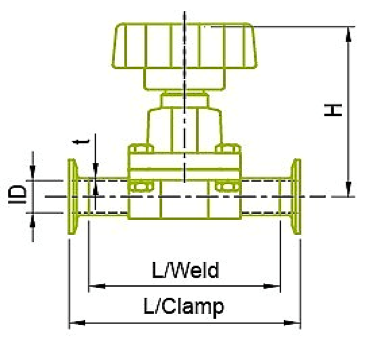

Valve Type: DV P/N: DV-100-CL-M-316

Diaphragm Valve, Manual

				Weld	Clamp
Size	ID mm	t mm	H mm	L mm	L mm
1/2"	9.5	1.65	75	83	108
3/4"	15.8	1.65	75	83	108
1"	22.1	1.65	116	120	145
1.5"	34.8	1.65	136	153	178

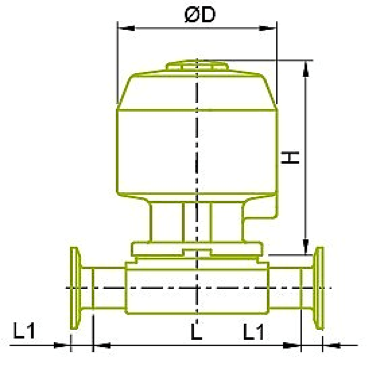

Valve Type: DV P/N: DV-100-CL-P-316

Diaphragm Valve, Pneumatic

<

Size	L mm	L1 mm	ØD mm	H mm
1/2"	83	12.5	60	77
3/4"	83	12.5	60	100
1.0"	120	12.5	90	130
1.5"	153	12.5	114	168

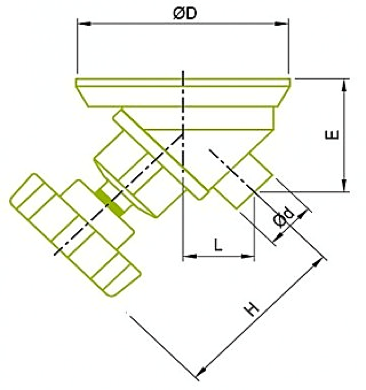

Valve Type: DVT P/N: DVT-100-WE-M-316

Diaphragm Valve, Tank Bottom, Manual

Size	ØD mm	Ød mm	E mm	L mm	H mm
1"	120	25.4	58	52	115
1.5"	160	38.1	65	68	135

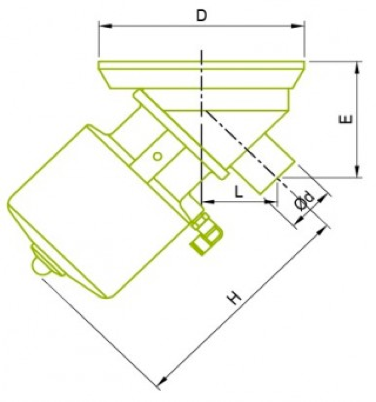

Valve Type: DVT P/N: DVT-100-WE-P-316

Diaphragm Valve, Tank Bottom, Pneumatic

Size	ØD mm	Ød mm	E mm	L mm	H mm
1"	120	25.4	58	52	143
1.5"	160	38.1	65	68	170
