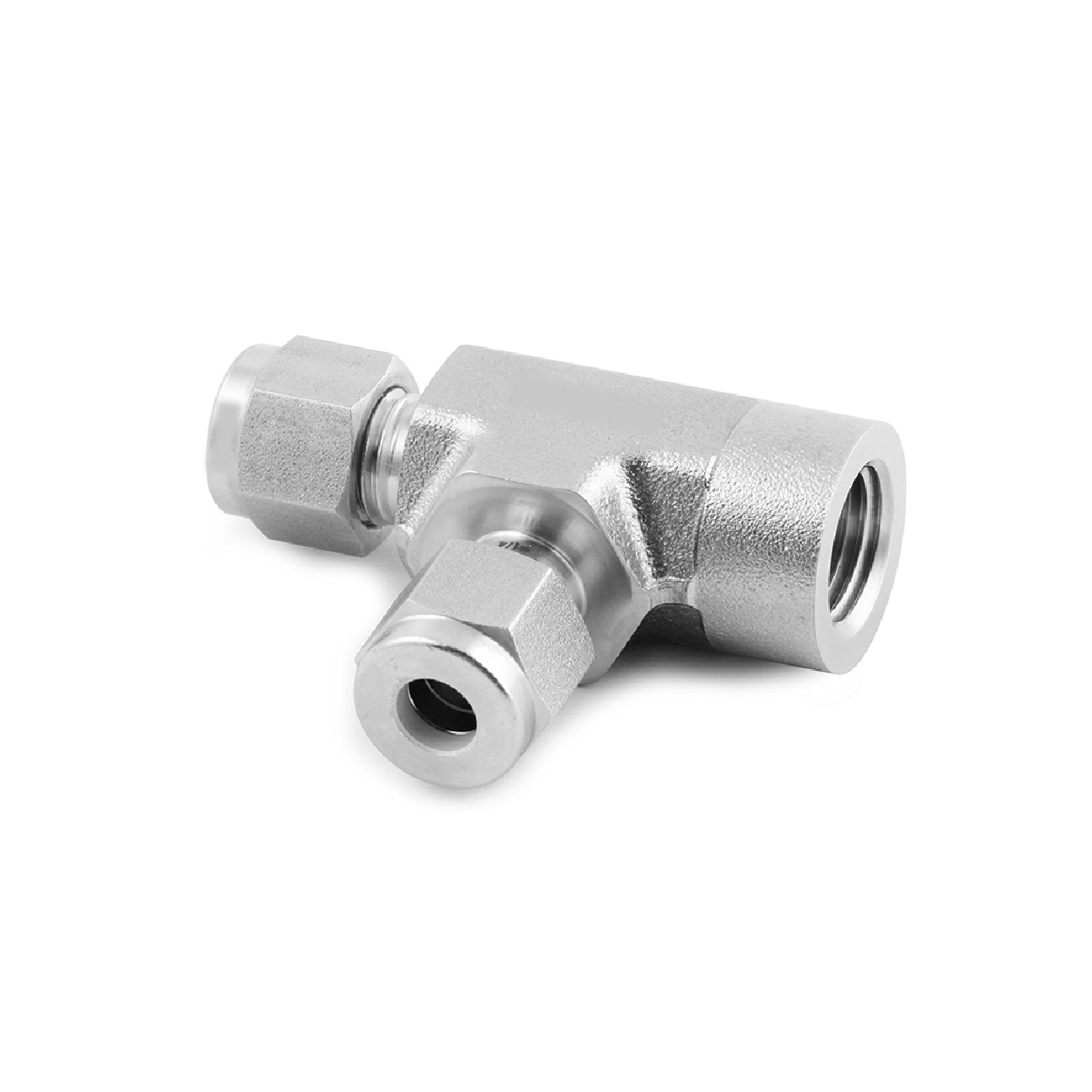

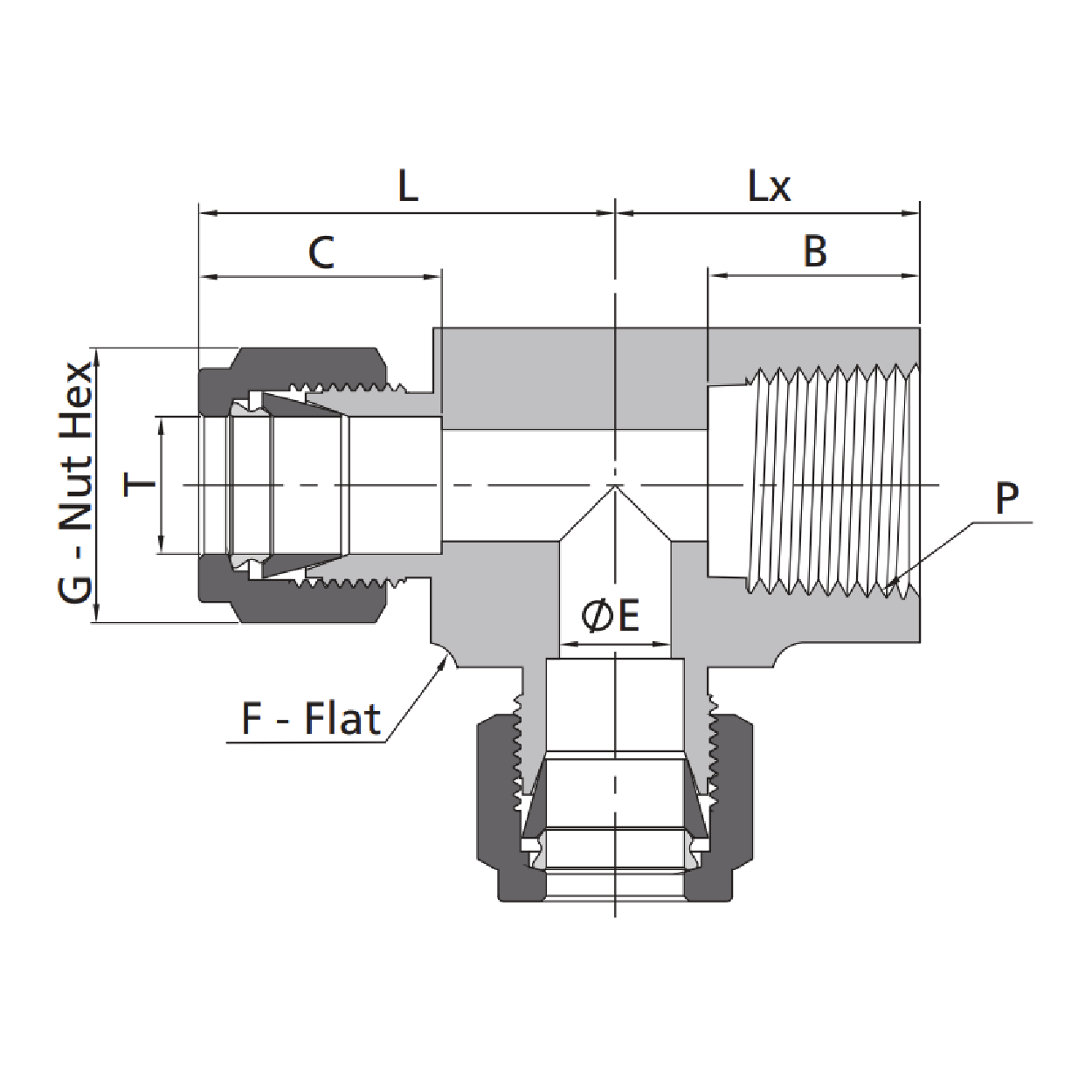

Female Run Tee - Product Female Run Tees- Drawing
Fractional Tube Dimensions (inch)
T-Tube O.D. P-NPT Size Basic Ordering Number L C G F E B Lx
1/8 1/8 -TFT-FL2-NS2 0.97 0.50 0.44 0.50 0.09 0.41 0.75
3/16 1/8 -TFT-FL3-NS2 1.01 0.54 0.50 0.50 0.12 0.41 0.75
1/4 1/8 -TFT-FL4-NS2 1.06 0.60 0.56 0.50 0.19 0.41 0.75
1/4 1/4 -TFT-FL4-NS4 1.17 0.60 0.56 0.69 0.19 0.59 0.88
5/16 1/8 -TFT-FL5-NS2 1.17 0.64 0.63 0.63 0.25 0.41 0.75
3/8 1/4 -TFT-FL6-NS4 1.23 0.66 0.69 0.69 0.28 0.59 0.88
1/2 1/4 -TFT-FL8-NS4 1.42 0.90 0.87 0.81 0.41 0.59 0.88
1/2 3/8 -TFT-FL8-NS6 1.42 0.90 0.87 0.81 0.41 0.59 0.88
1/2 1/2 -TFT-FL8-NS8 1.57 0.90 0.87 1.06 0.41 0.78 1.12
5/8 1/2 -TFT-FL10-NS8 1.57 0.96 1.00 1.06 0.50 0.78 1.12
3/4 3/4 -TFT-FL12-NS12 1.76 0.96 1.13 1.37 0.62 0.81 1.25
7/8 1/2 -TFT-FL14-NS8 1.76 1.02 1.25 1.37 0.72 0.81 1.25
7/8 3/4 -TFT-FL14-NS12 1.76 1.02 1.25 1.37 0.72 0.81 1.25
1 3/4 -TFT-FL16-NS12 1.93 1.23 1.50 1.37 0.88 0.81 1.25
1 1 -TFT-FL16-NS16 2.11 1.23 1.50 1.69 0.88 1.00 1.50

Units: inch
