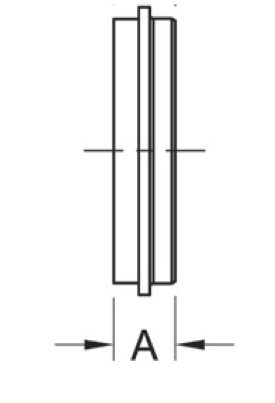

Fitting type: 16AJP P/N: 16AJP-100-316

Cap - Solid End Cap

Tube OD	A(in)
1	0.47
1 1/2	0.48
2	0.53
2 1/2	0.55
3	0.61
4	0.69

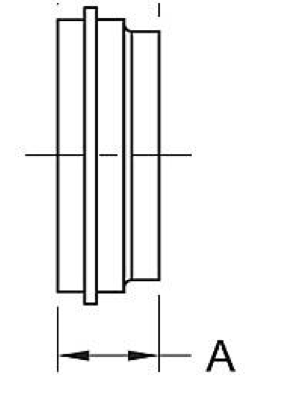

Fitting type: 14PRFJP P/N: 14PRFJP-100-316

Ferrule - Short Plain weld Ferrule

Tube OD	A(in)	ID(in)
1	0.69	0.87
1 1/2	0.72	1.37
2	0.72	1.87
2 1/2	0.84	2.37
3	0.91	2.87
4	1.22	3.83

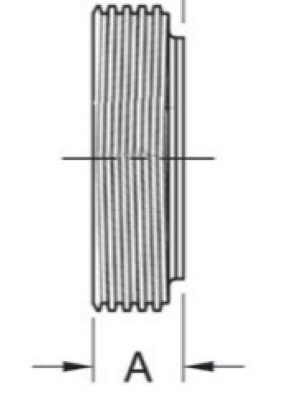

Fitting type: 15TRFJP P/N: 15TRFJP-100-316

Ferrule - Short Threaded weld Ferrule

Tube OD	A(in)	ID(in)
1	0.69	0.87
1 1/2	0.72	1.37
2	0.72	1.87
2 1/2	0.84	2.37
3	0.91	2.87
4	1.22	3.83

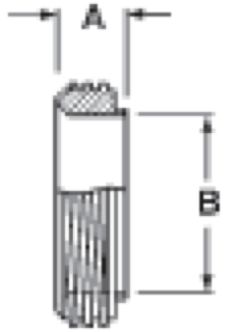

Fitting type: 13H P/N: 13H-

Ferrule - Short Threaded weld Ferrule

Tube OD	A(in)	B(in)
1	0.91	1.81
1 1/2	0.97	2.41
2	1.06	3.00
2 1/2	1.19	3.59
3	1.28	4.19
4	1.50	5.44

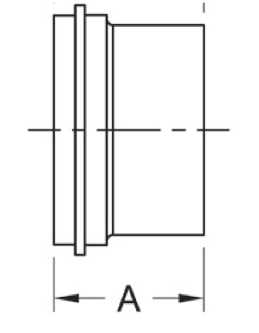

Fitting type: L14AJP P/N: L14AJP-100-316

Ferrule - Long Plain weld Ferrule

Size	A(in)	ID(in)
1	1.38	0.87
1 1/2	1.50	1.37
2	1.50	1.87
2 1/2	1.75	2.37
3	1.75	2.87
4	1.75	3.83

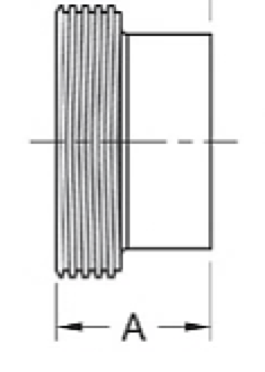

Fitting type: L15AJP P/N: L15AJP-100-316

Ferrule - Long Threaded weld Ferrule

Size	A(in)	ID(in)
1	1.38	0.87
1 1/2	1.50	1.37
2	1.50	1.87
2 1/2	1.75	2.37
3	1.75	2.87
