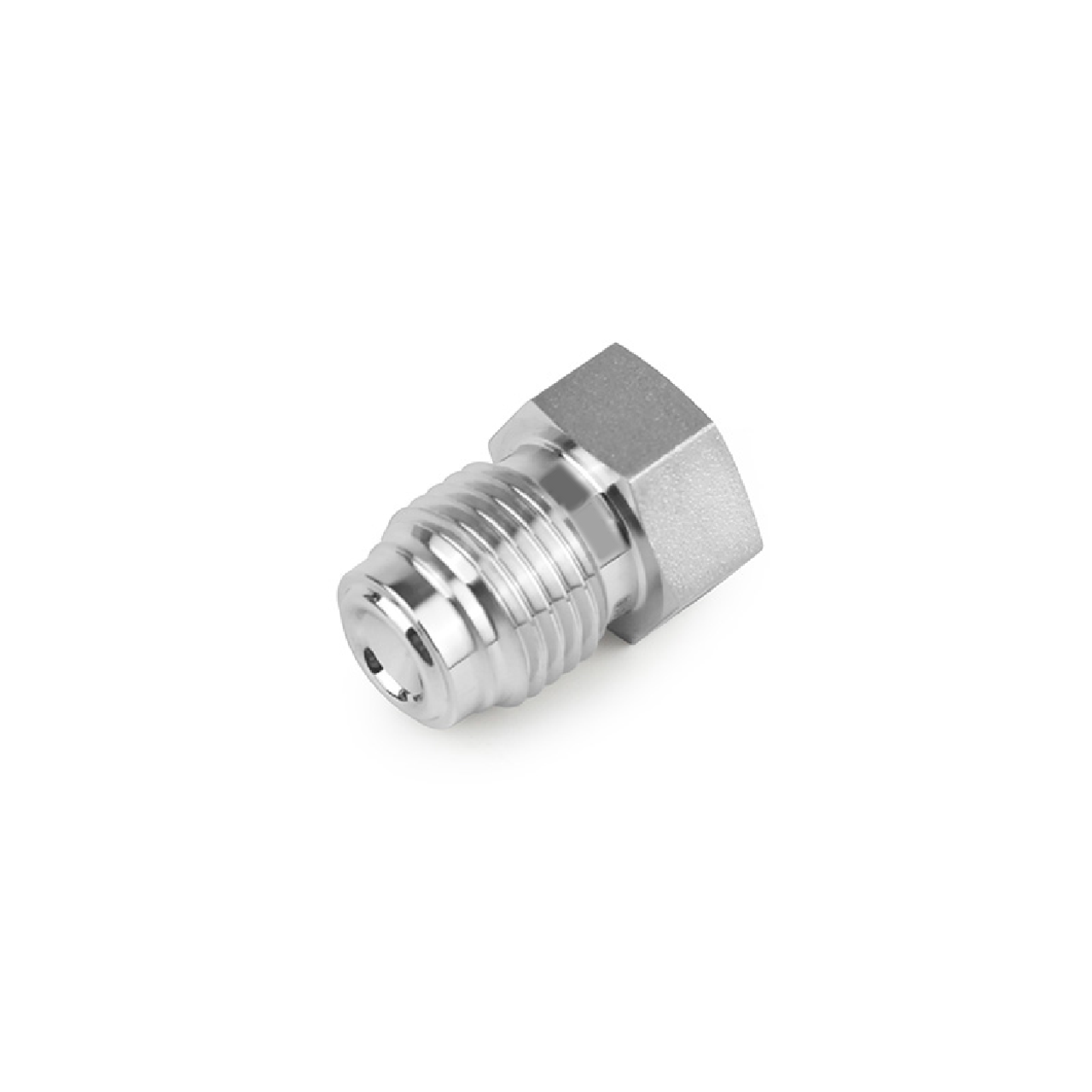

Plugs

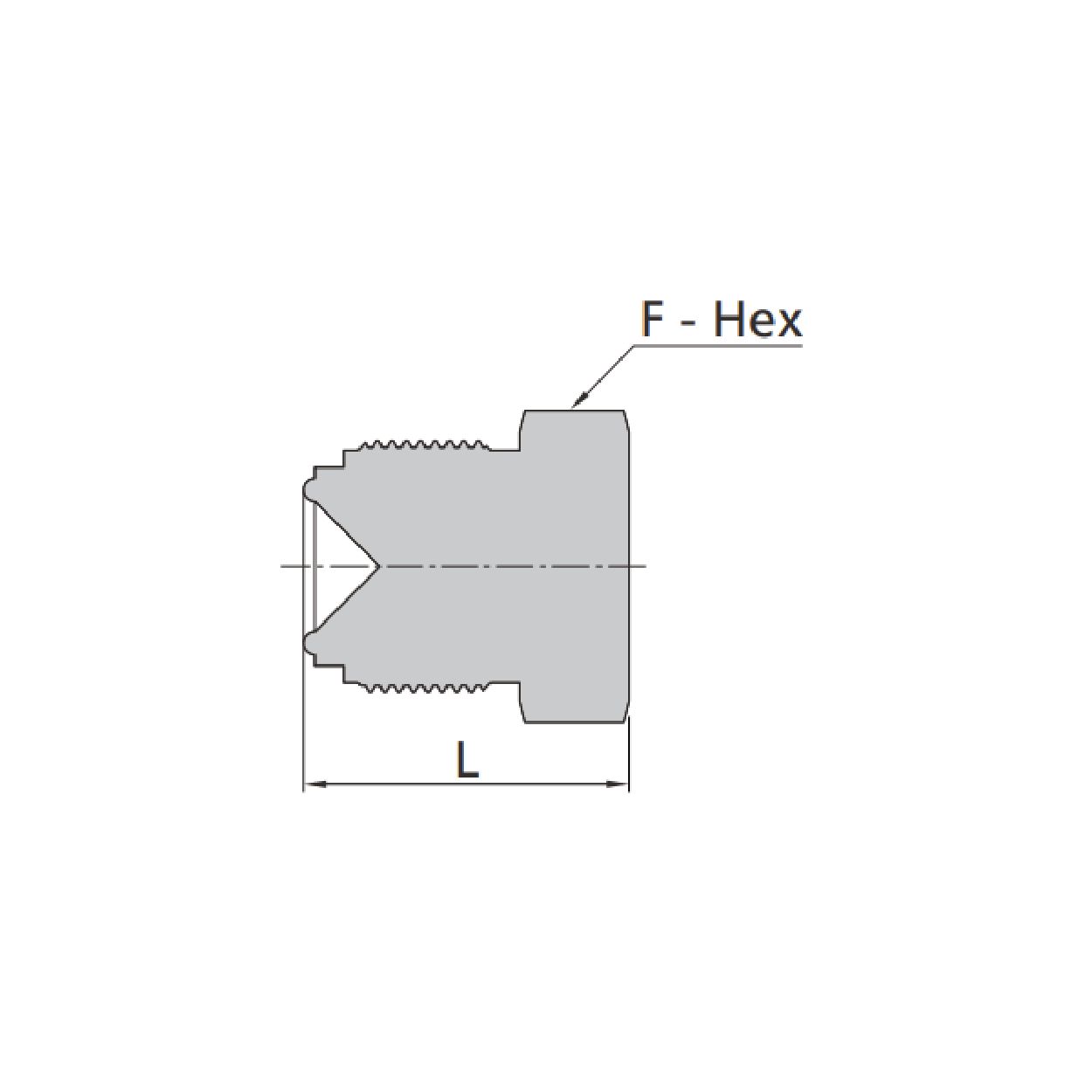

Plugs - Product Plugs - Drawing
Plug Dimensions, in. (mm)
FR Size (in.) Basic Ordering Number L F
1/8 -PG-FR2 0.68 (17.3) 3/8 (9.5)
1/4 -PG-FR4 0.92 (23.4) 5/8 (15.9)
1/2 -PG-FR8 1.08 (27.4) 15/16 (23.8)
3/4 -PG-FR12 1.43 (36.3) 1 5/16 (33.3)
1 -PG-FR16 1.52 (38.6) 1 5/8 (41.3)

Units: inch
