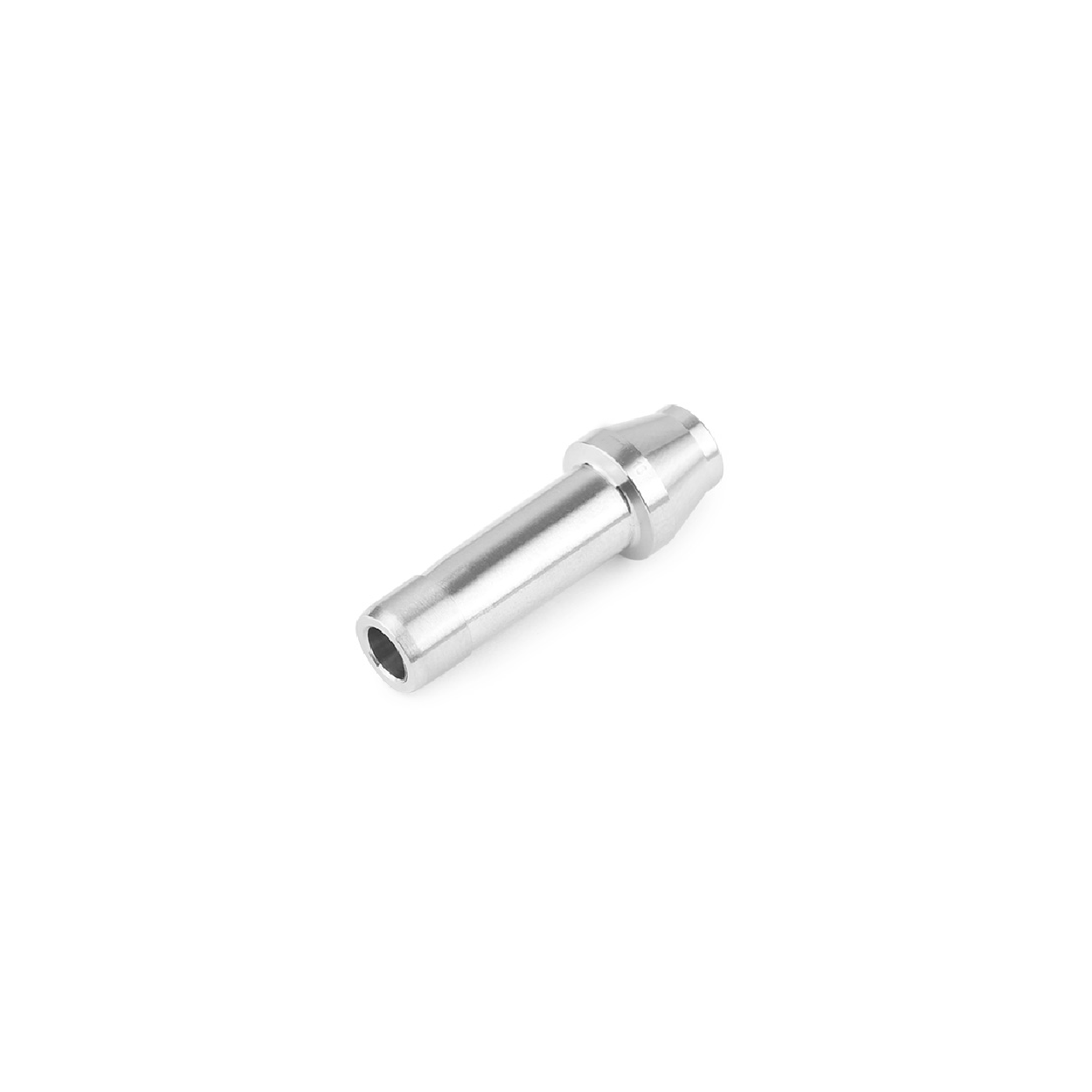

Port Connectors

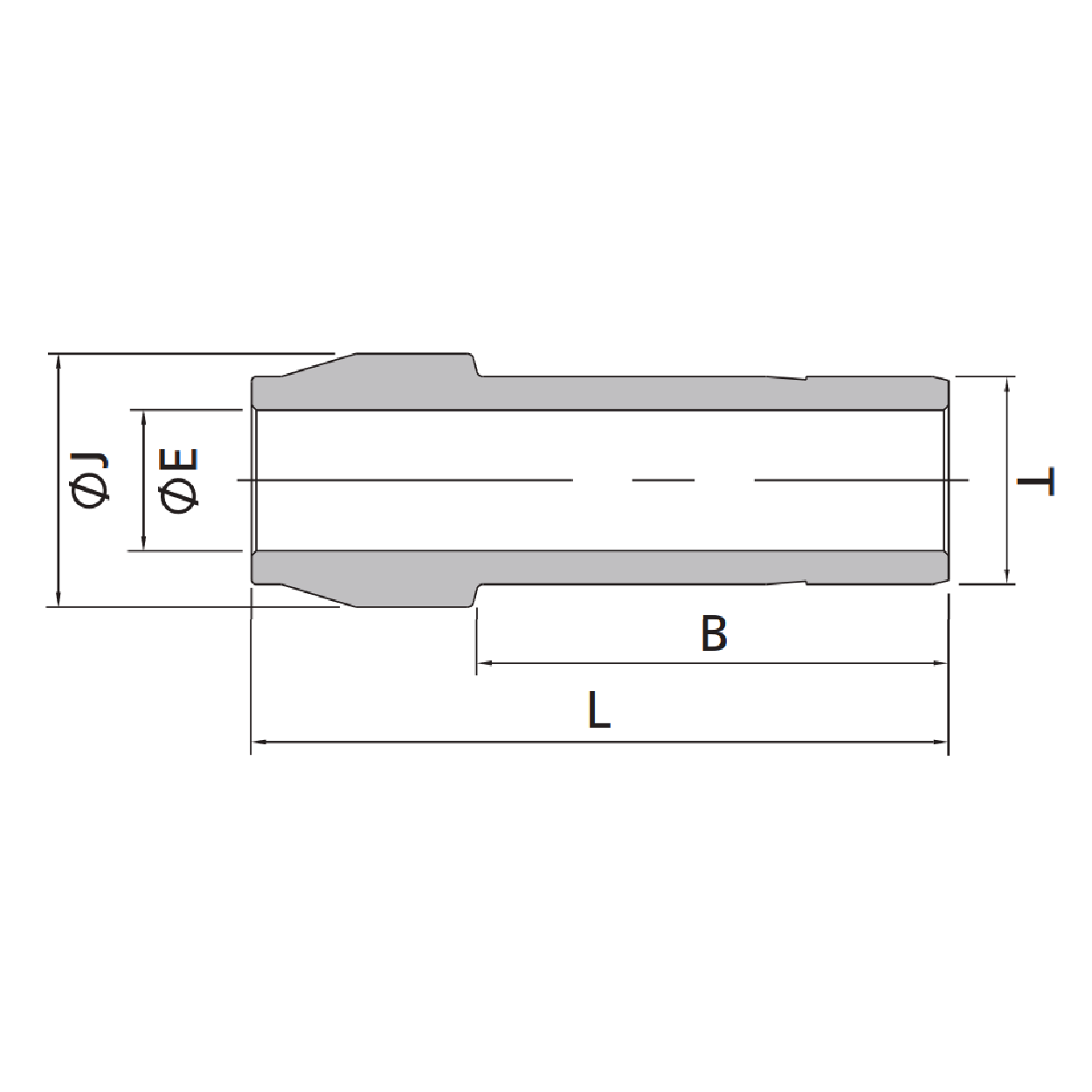

| Fractional Tube | Dimensions (inch) | ||||
|---|---|---|---|---|---|
| T-Tube O.D. | Part Number | L | B | E | J |
| 1/16 | SS-P-FL1 | 0.63 | 0.44 | 0.03 | 0.13 |
| 1/8 | SS-P-FL2 | 0.97 | 0.65 | 0.08 | 0.24 |
| 1/4 | SS-P-FL4 | 1.06 | 0.75 | 0.17 | 0.36 |
| 5/16 | SS-P-FL5 | 1.11 | 0.80 | 0.22 | 0.43 |
| 3/8 | SS-P-FL6 | 1.12 | 0.81 | 0.27 | 0.48 |
| 1/2 | SS-P-FL8 | 1.68 | 1.13 | 0.37 | 0.61 |
| 5/8 | SS-P-FL10 | 1.64 | 1.16 | 0.47 | 0.74 |
| 3/4 | SS-P-FL12 | 1.65 | 1.13 | 0.58 | 0.87 |
| 1 | SS-P-FL16 | 2.12 | 1.43 | 0.80 | 1.11 |
| 1 1/4 | SS-P-FL20 | 2.87 | 2.07 | 1.02 | 1.54 |
| 1 1/2 | SS-P-FL24 | 3.48 | 2.50 | 1.24 | 1.85 |
Units: inch
