Relief Valve

Bleed out air bubbles in the line; usually on the suction side of pump where vacuum can form.

Install valve upstream of pump, on top of the inlet tube. Stainless Body with polypropylene ball is standard.

Features:

Ball and gasket are replaceable

Valve seals both for pressure and vacuum

Options: PTFE ball or other materials

Specification:

Max Temperature: 212 F

Max. pressure: 145 psi

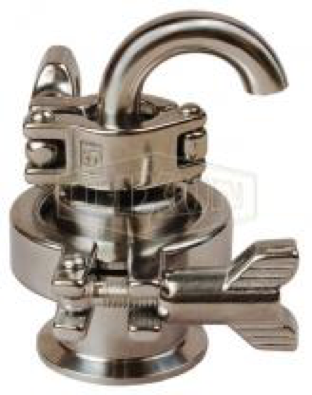

Air Relief with 180 Elbow
  • Valve Type: RVE
  • P/N: RVE-150-PTFE-CL-304

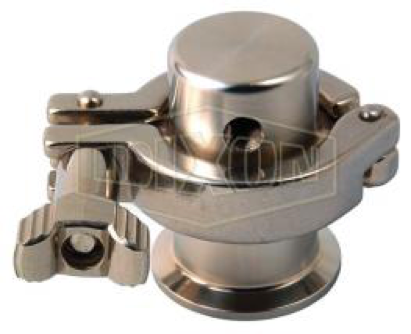

Air Relief with tapped blind end
  • Valve Type: RVT
  • P/N: RVT-150-PTFE-CL-304

!
