Double silicon sealed. Seat ensures a leak-proof shut-off

Features:

         Max. Temperature: 300 F

         Max. pressure: 200 psi

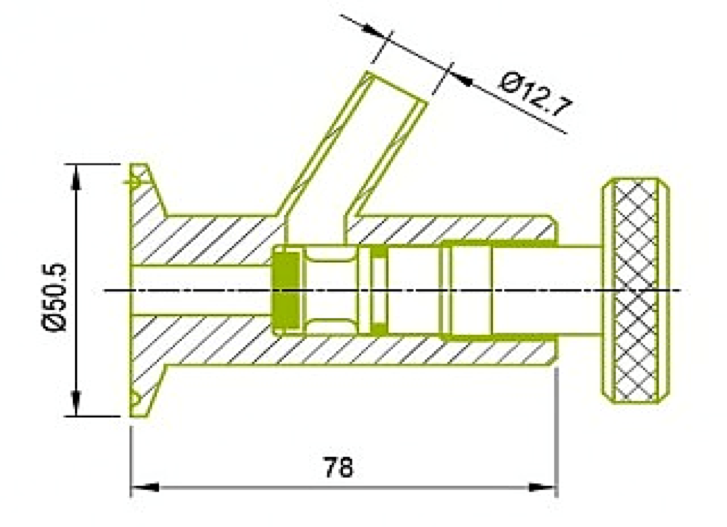

Sample Valve, Clamp End

Valve Type: SV P/N: SV-100-PTFE-CL-304 Size: 1.0" WT: 1.0 LB

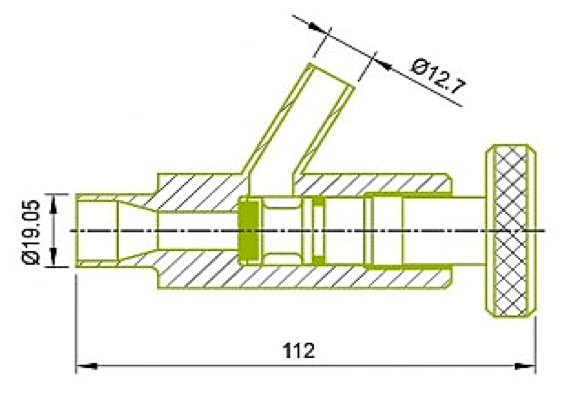

Sample Valve, Weld end

Valve Type: SV P/N: SV-100-Si-WE-304 Size: 1.0" WT: 1.0 LB

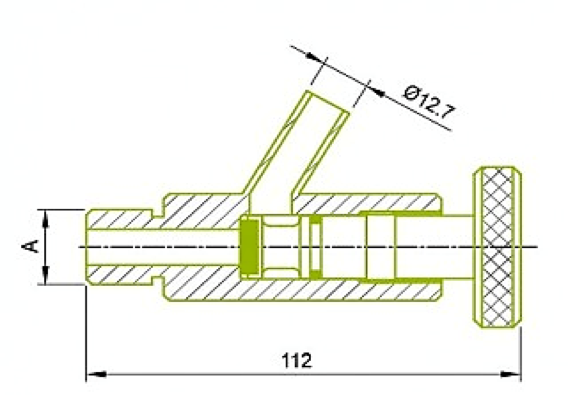

Sample Valve, Male end

Valve Type: SV P/N: SV-025-ptfe-NPT-304 Size: 1.0"

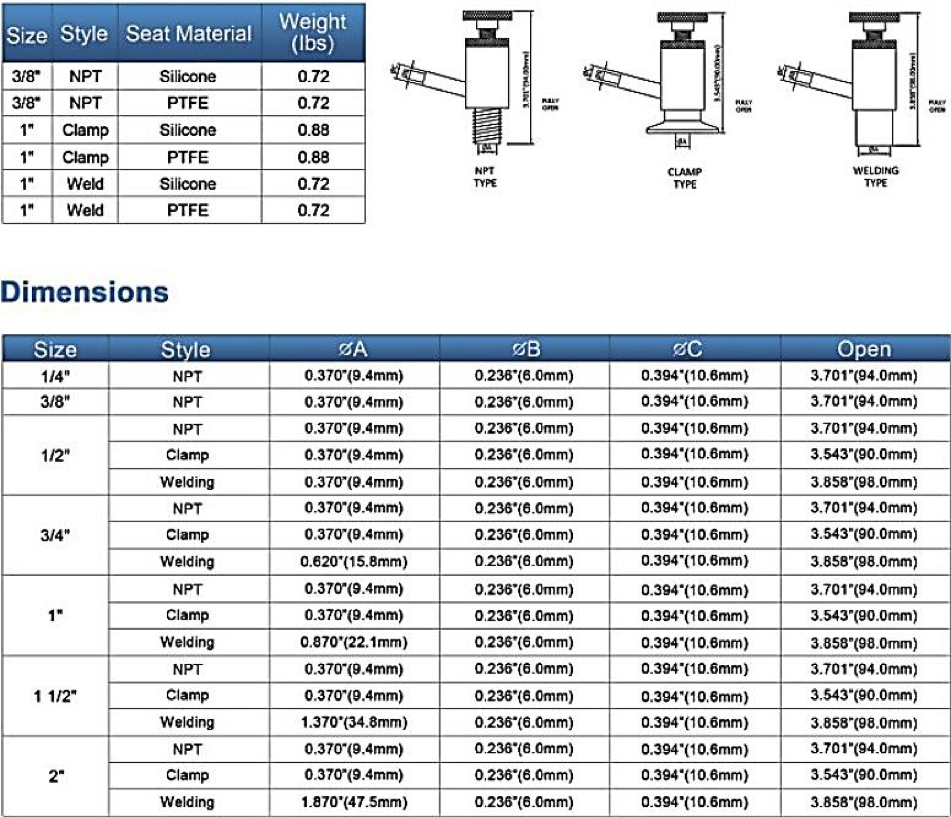

Size	A
1/4	1/4" NPT
1/4	3/8" NPT
3/8	1/4" NPT
3/8	1/2" NPT
1/2	1/2" NPT
1	3/8" NPT
