Ball Valve

  • Low cost, not serviceable
  • Applicable for clean environment
  • Valve Type: BV2W2
  • P/N: BV2W2-100-V-CL-M-316

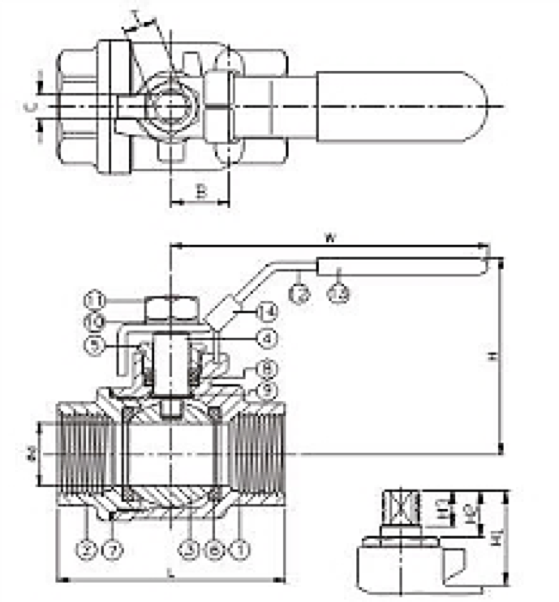

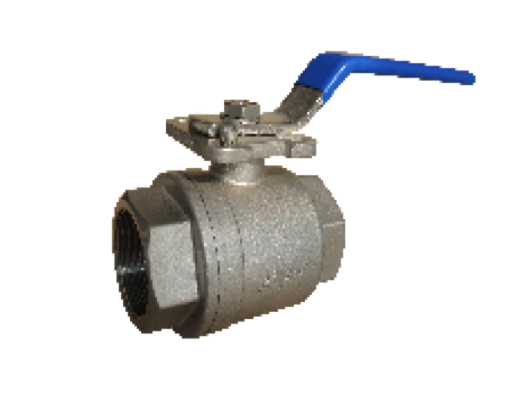

2-Way, 2-Piece, Manual Ball Valve
SizeID mmW mmH mmL mm
1/4" 12.5 106 48 52
3/8" 12.5 106 48 52
1/2" 15 106 54 63
3/4" 20 132 61 75
1" 25 152 71 88
1 1/4" 32 152 75 101
1 1/2" 38 193 91 112
2" 50 193 100 124
2 1/2" 65 263 142 164
3" 80 263 142 198

30 & 60 degree

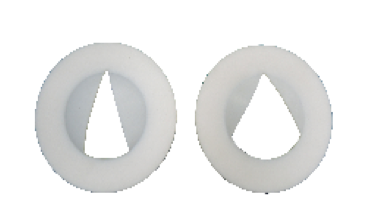

V-shaped port
  • Easy replacement of ball or seat
  • Ball is made of virgin PTFE. Lower friction than Stainless and lasts longer
  • V-shape port for high precision flow control is available
  • Available in clamped and welded body style
  • Available in Encapsulated and Non-encapsulated style
  • Valve Type: BV2W
  • P/N: BV2W3-100-V-CL-M-316

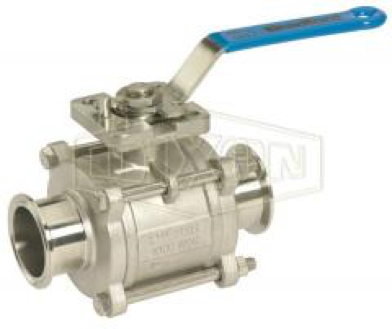

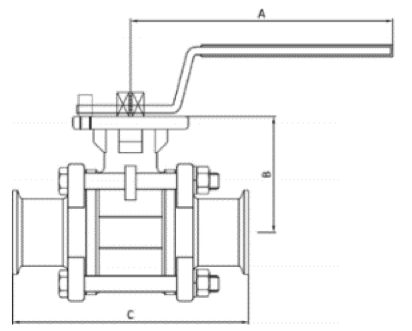

2-Way, 3 piece, Ball Valve, Manual
    clampWeld tubeTorqueTorqueFlowwt
SizeISO-5211A inB inC inC inin-lbin-lbCvlbsPrice
1/2" F03 4.1 2.3 4.6 4.6 55 105 5 1.4 $121
3/4" F03 4.1 2.5 4.7 4.7 71 116 14 1.8 $132
1" F04 5 2.8 4.9 4.9 101 336 30 2.6 $195
1-1/2" F05 6.1 3.5 5.6 5.6 221 420 80 4.6 $331
2" F05 7.6 3.9 6.4 6.4 345 473 150 8.5 $498
2-1/2" F07 7.6 4.4 7.8 7.8 683 788 176 17.8 $878
3" F07 10.9 4.9 9 9 830 1155 320 28.2 $1,337
4" F10 13.2 6.6 9.6 9.6 1323 1680 650 41.4 $2,430

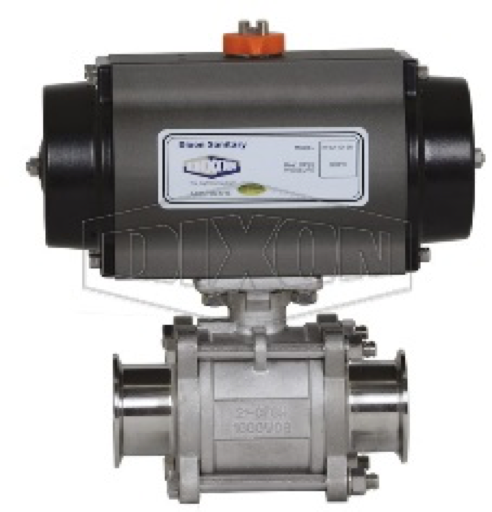

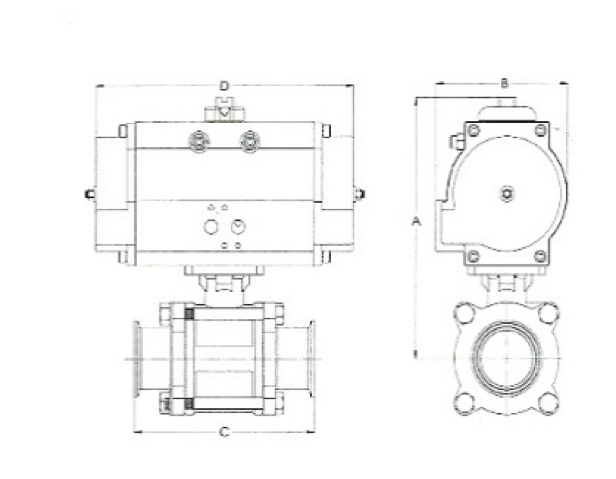

2-Way, 3 piece, Ball Valve, Pneumatic

Features
  • Compact design for areas with tight space restrictions
  • Full-port valve design offers lower pressure drop and a less turbulent flow
  • Balanced encapsulated valve construction minimizes cold-flow of seats
  • Precision stainless steel balls reduce torque and friction losses while extending the seat life of the valve
  • Actuator is tested to one million cycles and it features bi-directional stops for ±5º travel adjustment and visual position indication
  • 80 PSI plant air is required

Construction
  • Valve has Virgin PTFE seats, a blow-out proof stainless steel stem and live-loaded stem packing
  • ID polish is Ra 32 minimum
  • Rack and Pinion actuator has a hard anodized aluminum body, nickel plated anti-blowout pinion, Buna-N O-rings and NAMUR mounting.

Available Options
  • A wide variety of options are available: modulating, extra switches, transmitters, potentiometer, etc.

Safety notes
  • Even though there are torque safety factors built into our automated ball valve packages, actual service conditions must also be considered when selecting the proper product for the appropriate application
  • Severe service conditions such as dirty water, dirty air, all slurries, raw sewage water, oils, and other viscous fluids can have a dramatic affect in raising the torque requirements of ball valves as much as 75% and therefore larger actuators may be required. Please consult Dixon when dealing with these types of applications.
P/N: BV2W3-100-V-CL-SPR-304

Spring Return: -SPR

SizeABCD
1/2" 5.26 3.21 4.33 6.84
3/4" 5.68 3.21 4.69 6.84
1" 6.00 3.21 4.89 6.84
1-1/2" 7.37 3.74 5.64 7.44
2" 8.64 4.66 6.38 9.28
2-1/2" 10.21 5.48 7.76 13.25
3" 10.54 5.48 9.13 13.25
4" 13.83 8.00 9.56 18.00
P/N: BV2W3-100-V-CL-DBA-304

Spring Return: -DBA

SizeABCD
1/2" 4.93 2.90 4.33 4.73
3/4" 5.23 2.90 4.69 4.73
1" 5.98 3.23 4.89 5.58
1-1/2" 7.36 3.74 5.64 5.78
2" 7.72 3.74 6.38 5.78
2-1/2" 9.41 4.66 7.76 7.25
3" 10.54 5.48 9.13 10.63
4" 10.54 5.48 9.56 10.63
  • Valve Type: BV3W
  • P/N: BV3W-100-V-CL-M-316

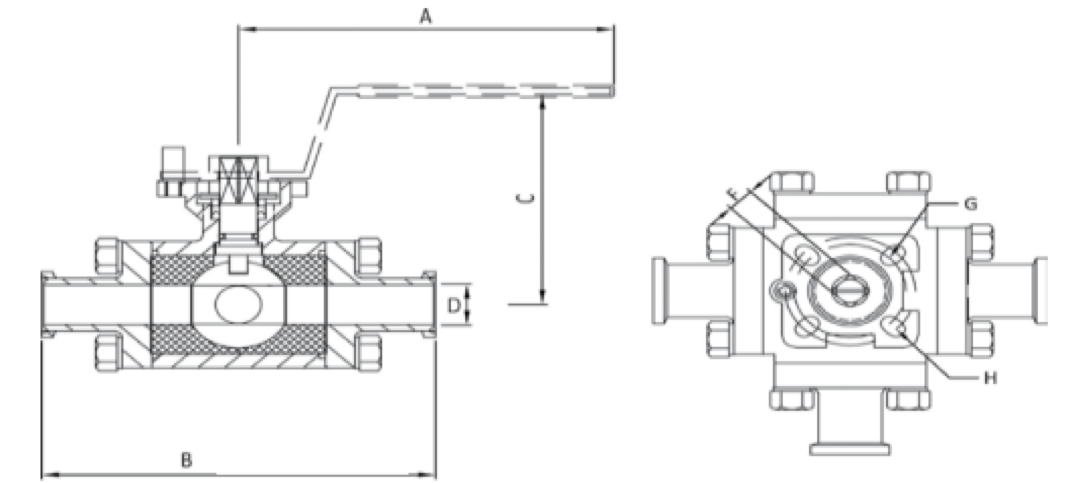

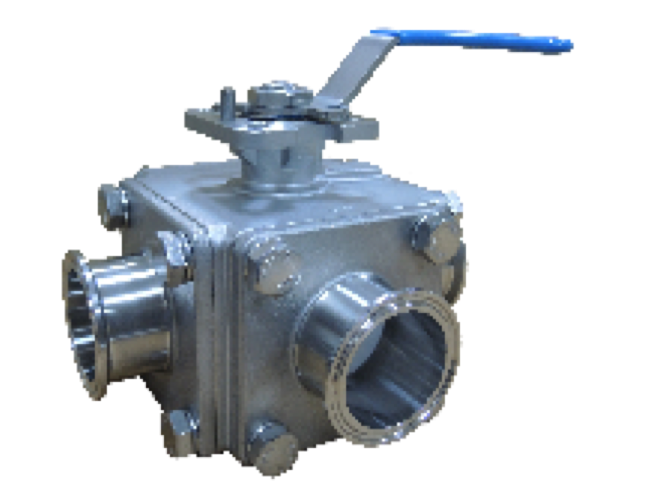

3-Way, Ball Valve, Manual
      L PortT PortFlowWT
Size5211ABCDin-lbin-lbCvlbs
1/2" F03/F04 4.76 4.65 3.07 0.37 62 50 5 4
3/4" F03/F04 4.76 5.00 3.23 0.62 75 60 14 4
1" F04/F05 5.39 6.00 3.54 0.87 100 80 30 7
1-1/2" F05/F07 7.17 6.89 4.33 1.38 262 210 80 13
2" F05/F07 7.17 7.87 4.52 1.87 535 425 150 22
2-1/2" F07/F10 14.57 9.37 4.25 2.37 1250 1000 176 34
3" F10/F12 15.75 10.63 5.28 2.87 1625 1300 320 56
4" F10/F12 15.75 11.00 6.80 3.84 1875 1500 650 85
  • Valve Type: BV3W
  • P/N: BV3W-100-V-CL-M-316

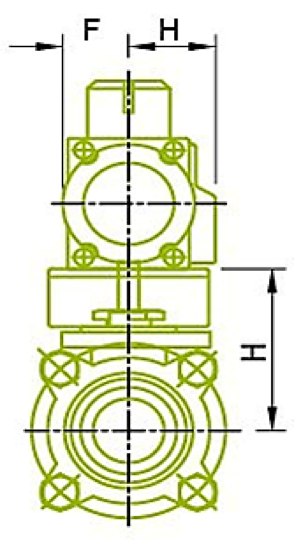

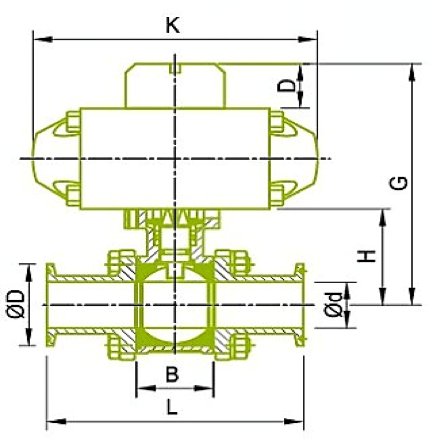

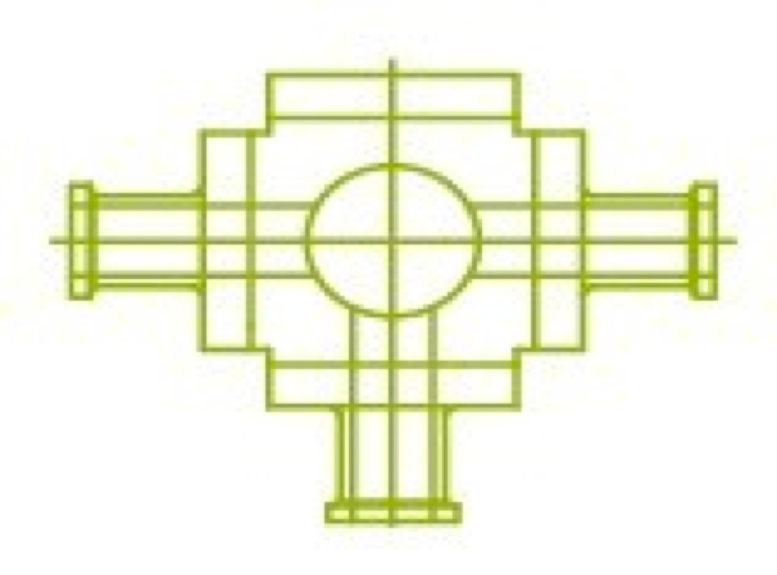

3-Way, Ball Valve, Pneumatic
    L PortT PortFlowWT
SizeISO-5211LmmØdmmin-lbin-lbCvlbs
1/2" F03/F04 110 9.5 62 50 5 4
3/4" F03/F04 119 15.8 75 60 14 4
1" F04/F05 124.2 22.2 100 80 30 7
1-1/2" F05/F07 143.2 35 262 210 80 13
2" F05/F07 162 47.6 535 425 150 22
2-1/2" F07/F10 197 60.3 1250 1000 176 34
3" F07/F10 229 73 1625 1300 320 56
4" F10/F12 243 97.4 1875 1500 650 85

!
