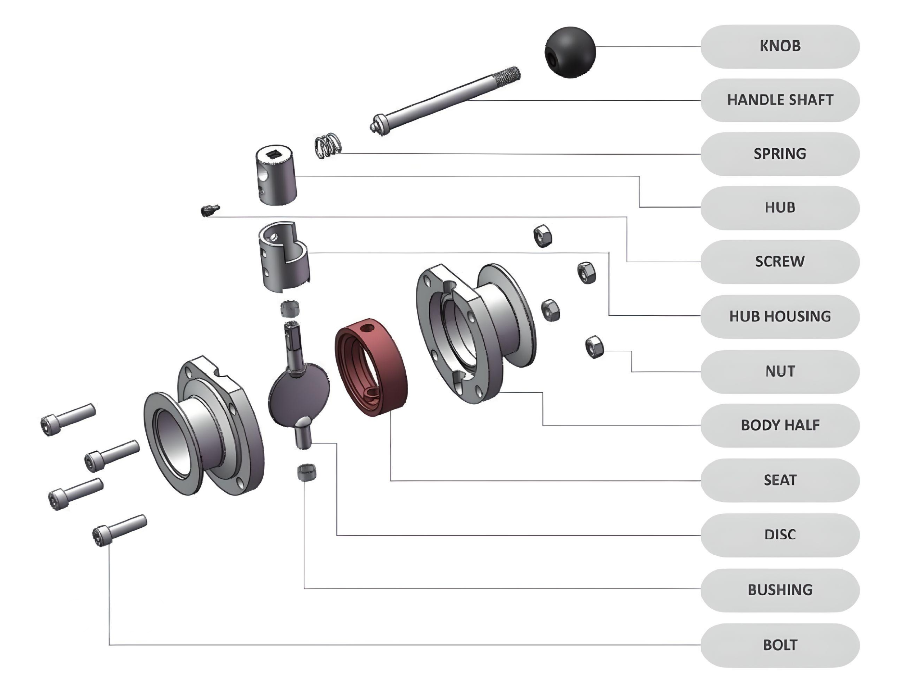

Click for exploded view
- Vacuum range: 1 x 10-8 Torr
- Body and disk material: 316L Stainless Steel
- Seat material: Silicon
- Op. Temperature: -55℃ to 225℃

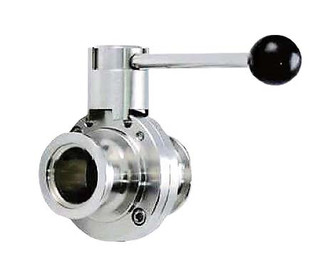

Manual Butterfly Valve

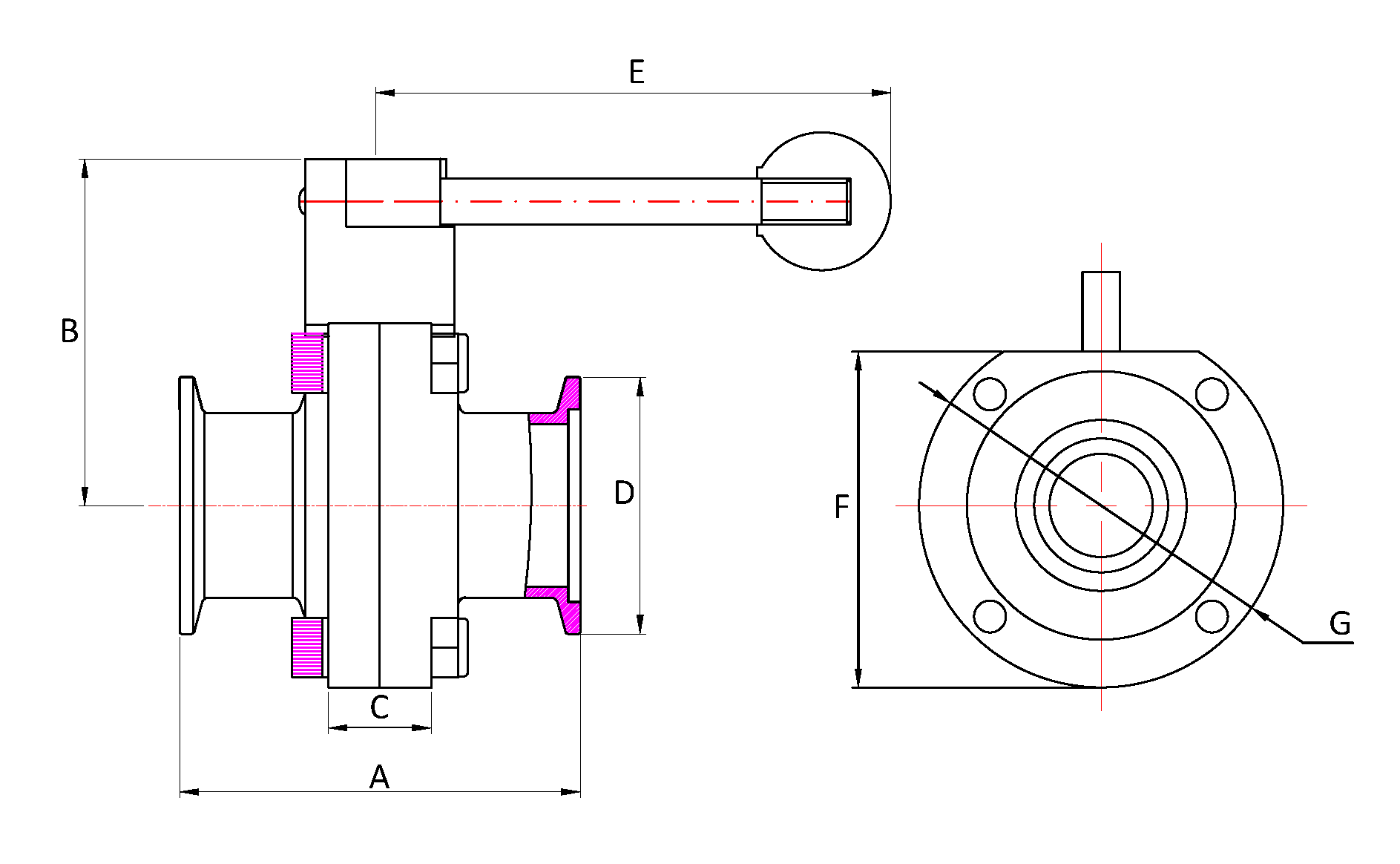

| NOM. Size |
ISO Ref |
A |
B |
C |
D |
E |
F |
G |
| 3/4" |
KF16 |
2.87 |
2.64 |
0.87 |
1.18 |
4.61 |
2.83 |
3.07 |
| 1" |
KF25 |
2.87 |
2.64 |
0.87 |
1.57 |
4.61 |
2.83 |
3.07 |
| 1-1/2" |
KF40 |
3.38 |
2.64 |
0.87 |
2.17 |
4.61 |
2.83 |
3.07 |
| 2" |
KF50 |
3.57 |
2.99 |
0.87 |
2.95 |
4.49 |
-- |
3.90 |
* Weld end port option available
* Seat available in FKM and EPDM
* Subject to change without notice

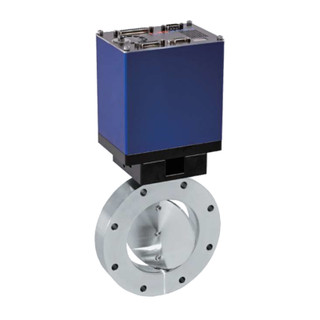

| Throttling Butterfly Valve |
Quick action with a quarter turn to go from fully open to fully close with positive lock. Butterfly valve functions both as shut-off and throttling. All wetted area are made of stainless steel. The knob is made of aluminum.
- Vacuum range: 1 x 10-8 mbar to 1.2 bar
- Op. temperature: +10℃ to +150℃
- Closing/Opening time: 0.3s
- Leak Test: 1 x 10-9 mbar l/s
- Life: 2 million (Unheated and under clean condition)
- Seal: Viton (Kalrez available)
Features
- VAT Compatible
- Low particle generation
- Any mounting position
- Wetted Materials: Body, Plate – SS 304 and Alum 6061, Shaft – SS 316L, Plate Screw – SS304
- Power input: +24 VDC (±10%) @ 0.5V pk-pk max.
- Power consumption: 80 W max
- Sensor power supply: Input +24VDC/1500 mA max. Output ± 15 VDC/ 667 mA max
- Sensor input: Singal input: 0-10 VDC / Ri>100 kΩ ADC Resolution: 0.16 mV Sampling time: 1 ms
- Digital inputs: ±24 VDC max
- Digital outputs: Input voltage: 70 VDC or 70 V peak max. Input current: 0.5 ADC or 0.5 A peak max. Breaking Capacity: 10 W max
- Ambient temperature: 0 ℃ to +50 ℃ max. (<35℃ recommended)
- Pressure control accuracy: 5 mV or 0.1% of setpoint, whichever is greater
- Position resolution capability: 20000
- Utilizable valve torque: 2.5 Nm
Throttling Butterfly Valve
| NOM. Size |
ISO Ref |
A |
B |
C |
D |
Conductance |
Min. controllable conductance |
Max. differential pressure |
| 1.5" |
KF40 |
80 |
89.2 |
54.9 |
41.3 |
80 l/s |
0.25 l/s |
1,000 mbar |
| 2.0" |
KF50 |
90 |
95.5 |
74.9 |
52.3 |
150 l/s |
0.30 l/s |
1,000 mbar |
| 2.5" |
ISO63 |
130 |
100 |
70 |
63 |
360 l/s |
0.45 l/s |
1,000 mbar |
| 3.0" |
ISO80 |
145 |
108.1 |
83 |
80 |
850 l/s |
0.65 l/s |
1,000 mbar |
| 4.0" |
ISO100 |
165 |
118.6 |
102 |
100 |
1,400 l/s |
0.85 l/s |
800 mbar |
| 6.0" |
ISO160 |
225 |
149.7 |
153 |
150 |
3,800 l/s |
1.70 l/s |
300 mbar |
| 8.0" |
ISO200 |
285 |
180.3 |
213 |
200 |
7,800 l/s |
2.80 l/s |
150 mbar |
| 10.0" |
ISO250 |
335 |
205.6 |
261 |
250 |
15,00 l/s |
5.00 l/s |
100 mbar |
* Subject to change without notice
