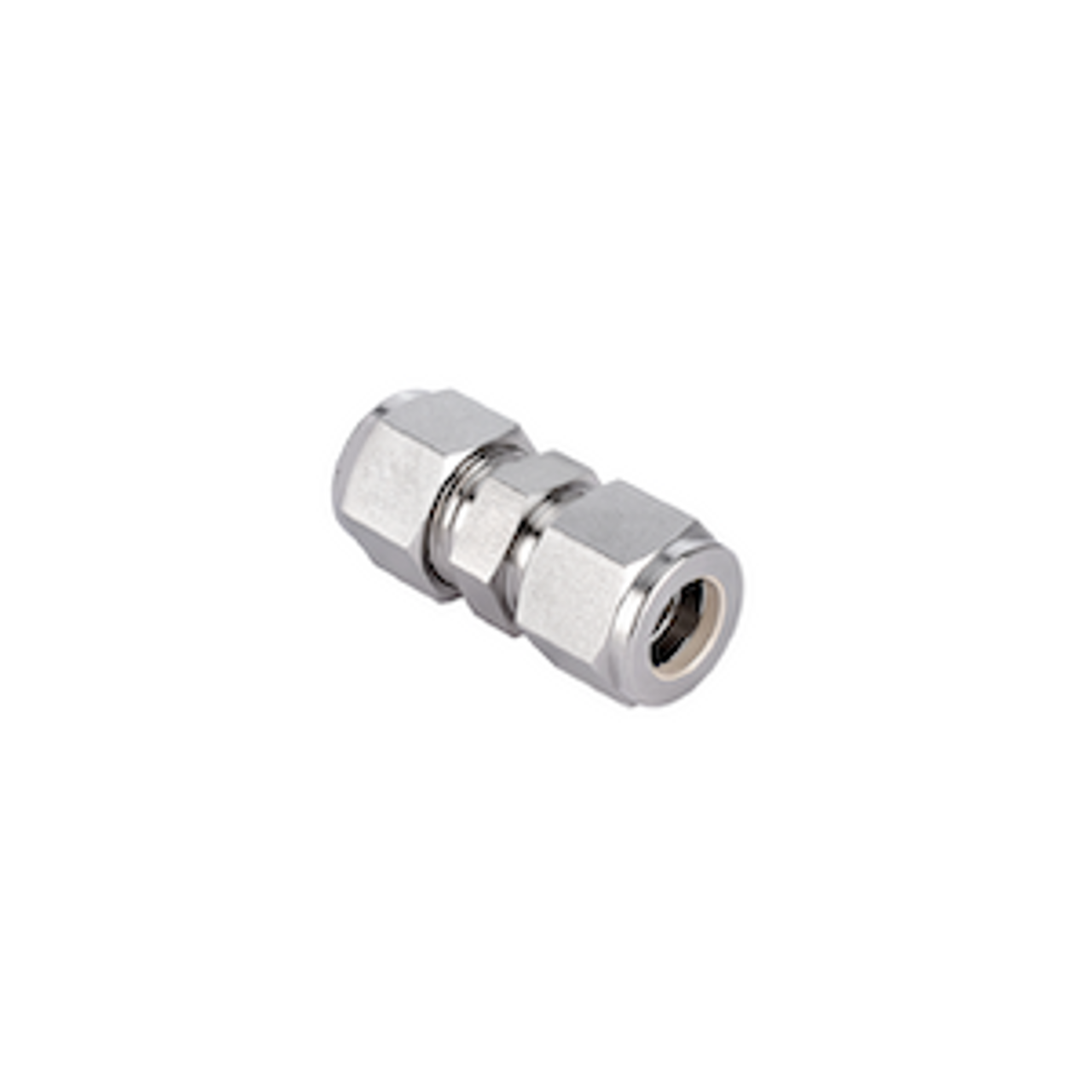

Unions
| Fractional Tube | Dimensions (inch) | |||||
|---|---|---|---|---|---|---|
| T-Tube O.D. | Ordering Number | L | C | G | F | E |
| 1/16 | SS-U-FL1 | 0.99 | 0.34 | 0.31 | 0.31 | 0.05 |
| 1/8 | SS-U-FL2 | 1.40 | 0.50 | 0.44 | 0.44 | 0.09 |
| 3/16 | SS-U-FL3 | 1.47 | 0.54 | 0.50 | 0.50 | 0.12 |
| 1/4 | SS-U-FL4 | 1.61 | 0.60 | 0.56 | 0.50 | 0.19 |
| 5/16 | SS-U-FL5 | 1.69 | 0.64 | 0.63 | 0.56 | 0.25 |
| 3/8 | SS-U-FL6 | 1.77 | 0.66 | 0.69 | 0.63 | 0.28 |
| 1/2 | SS-U-FL8 | 2.02 | 0.90 | 0.87 | 0.81 | 0.41 |
| 5/8 | SS-U-FL10 | 2.05 | 0.96 | 1.00 | 0.94 | 0.50 |
| 3/4 | SS-U-FL12 | 2.11 | 0.96 | 1.13 | 1.06 | 0.62 |
| 7/8 | SS-U-FL14 | 2.19 | 1.02 | 1.25 | 1.19 | 0.72 |
| 1 | SS-U-FL16 | 2.55 | 1.23 | 1.50 | 1.37 | 0.88 |
| 1 1/8 | SS-U-FL18 | 3.47 | 1.44 | 1.75 | 1.63 | 0.97 |
| 1 1/4 | SS-U-FL20 | 3.63 | 1.62 | 1.87 | 1.75 | 1.09 |
| 1 1/2 | SS-U-FL24 | 4.25 | 1.97 | 2.25 | 2.13 | 1.34 |
Units: inch
