Vacuum Chambers
Vacuum Chambers

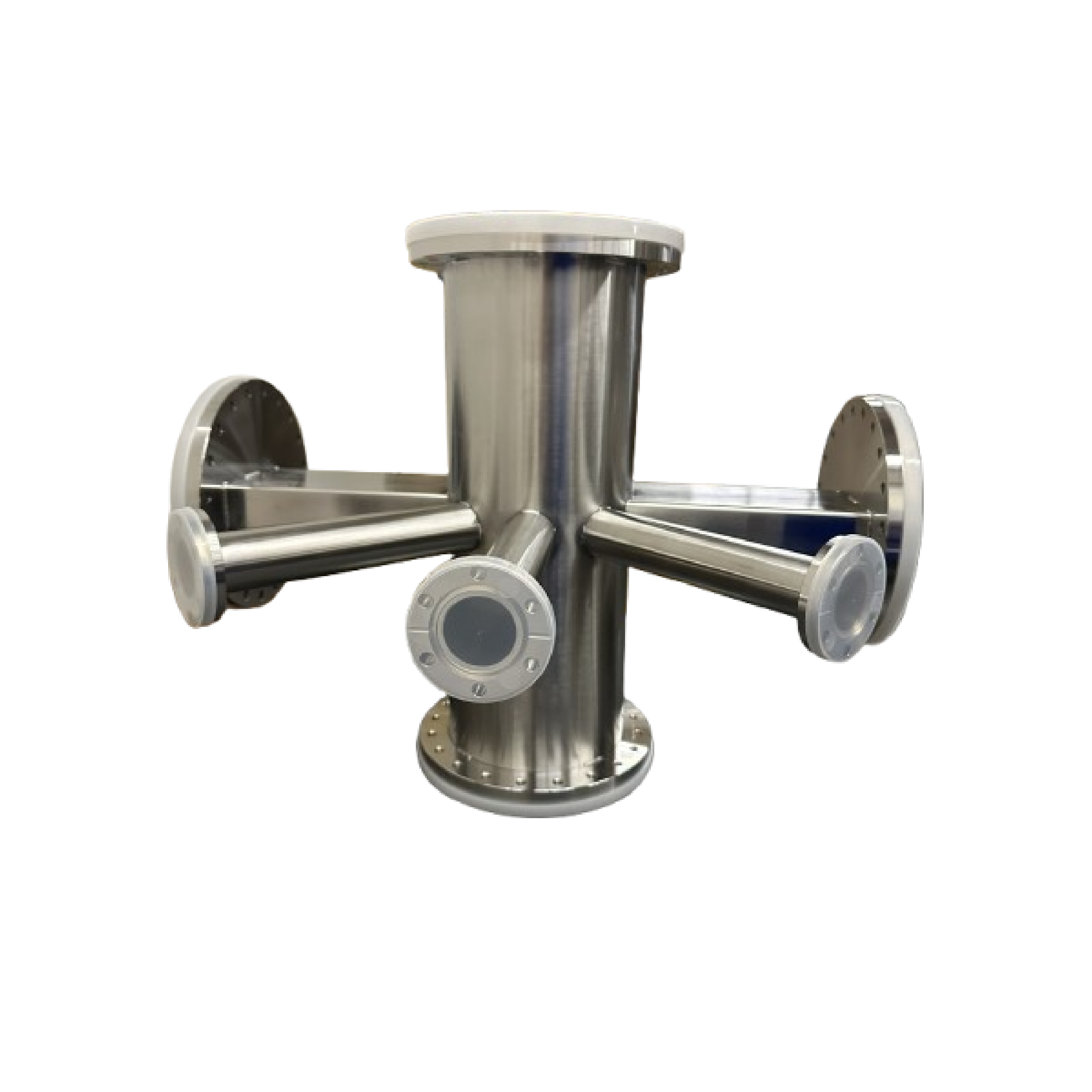

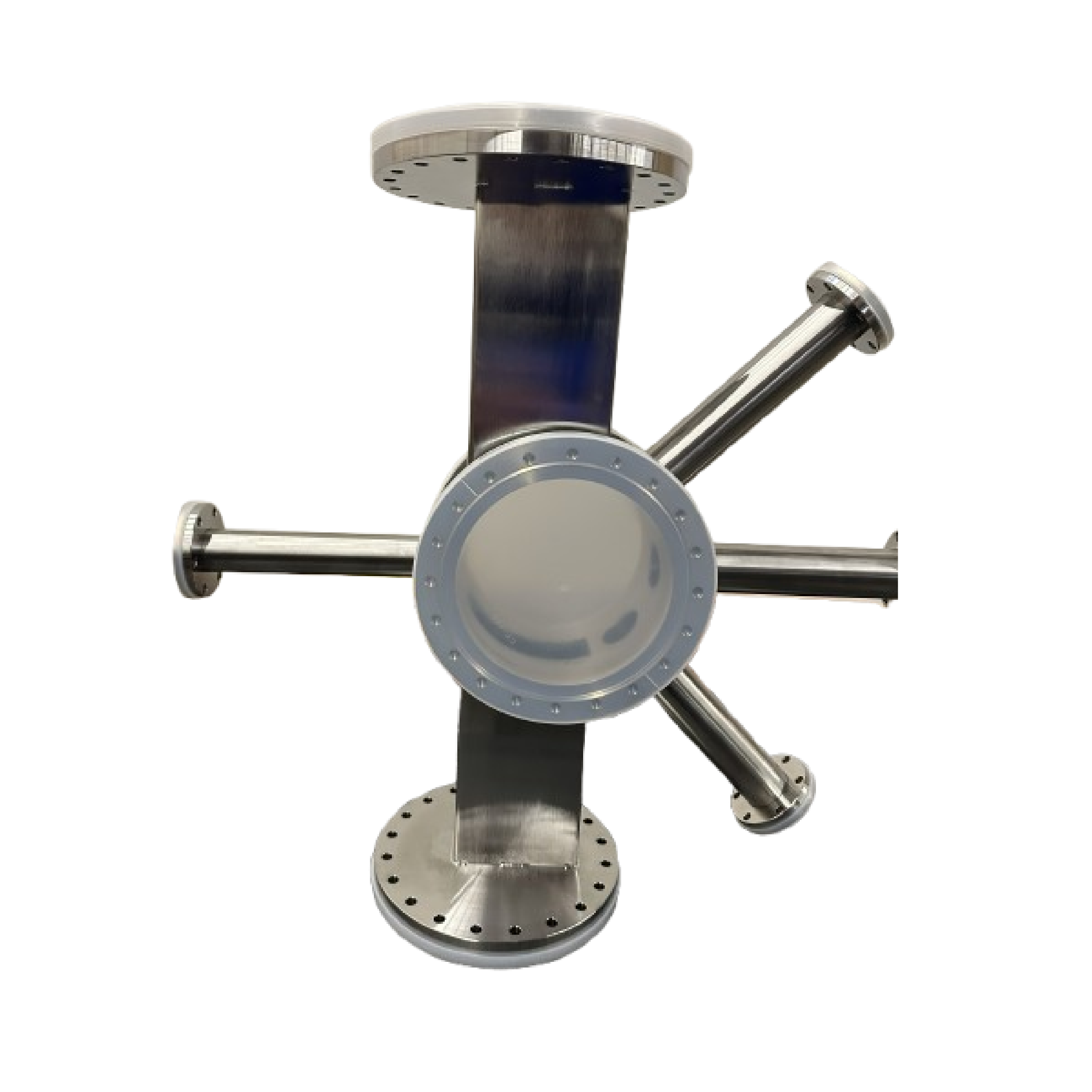

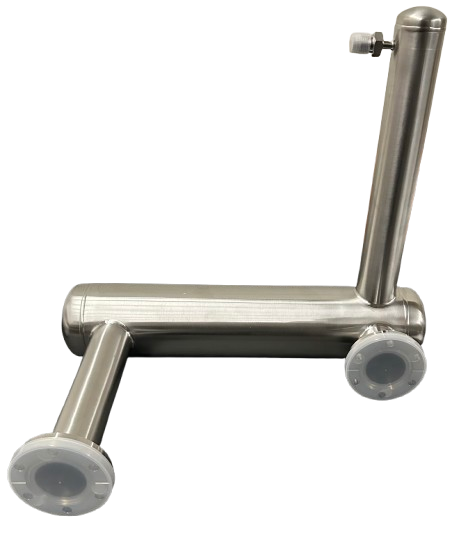

Custom Build-to-Print Chamber
Chambers come in many shapes and sizes consist of Bell Jar, Rectangular, and Cylindrical configurations. Available in Stainless Steel, supplied with electropolished surface finish with mounting bosses and can be ordered with support frame. Additionally, seamless integration with feedthrough options is provided for applications. Please refer to this page for the feedthrough selection.
- Vacuum range: 1 x 10-9 Torr
- Leak test: 1 x 10-9 atm cc/sec of He
Standard Chamber
These chambers are robust, economical, and made of Stainless Steel with an electropolished surface finish. They can be customized with different ports and accessories to meet specific requirements.
Box Chamber
Material: 304 SS
Sturdy hinged door providing quick and easy access
| Size | Port | Cost |
|---|---|---|
| 12" | Up to 5 ports: KF16, KF25, KF40, ISO100, ISO160 | $5512.24 |
| 16" | $8206.73 | |
| 20" | $11623.96 | |
| 24" | $14868.32 |
6-Way Cube Chamber
Material: 304 SS
Compact and versatile
| Size | Thread | Cost |
|---|---|---|
| 6" | 5/16-24 | $2,436 |
| 12" | 5/16-24 | P.O.R |
| 18" | 5/16-24 | P.O.R |
| 24" | 5/16-24 | P.O.R |
