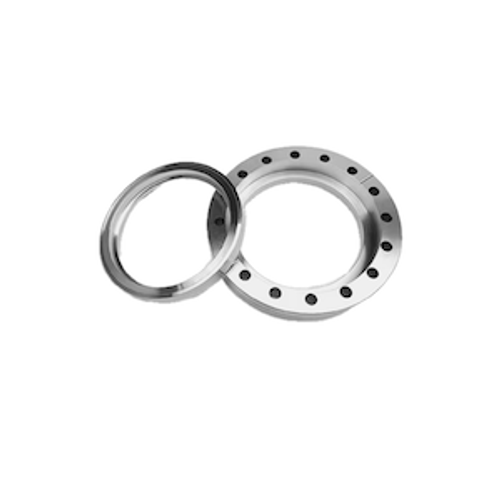

CF Bored Flange, Rotatable, Tapped

CF Bored Flange, Rotatable, Tapped
bored flange rotatable tapped drawing
  • Application: Ultra High Vacuum
  • Material: SS304
  • Sizes: CF1.33" ~ CF14.00"
  • Vacuum Range: 760 Torr ~ 1x10-13  Torr
PRODUCT NUMBER A B C D PRICE QUANTITY ORDER DOWNLOAD
CF1.33-025-RT 1.33 0.25 0.13 0.30
$17.20
CF1.33-038-RT 1.33 0.38 0.26 0.30
$17.20
CF1.33-050-RT 1.33 0.50 0.50 0.30
$17.20
CF1.33-075-RT 1.33 0.76 0.63 0.30
$17.20
CF2.12-025-RT 2.12 0.25 0.13 0.45
$22.80
CF2.12-050-RT 2.12 0.50 0.50 0.45
$22.80
CF2.12-075-RT 2.12 0.76 0.63 0.45
$22.80
CF2.12-100-RT 2.12 1.02 0.94 0.45
$22.80
CF2.75-025-RT 2.75 0.25 0.13 0.50
$26.60
CF2.75-050-RT 2.75 0.50 0.50 0.50
$26.60
CF2.75-075-RT 2.75 0.76 0.63 0.50
$26.60
CF2.75-100-RT 2.75 1.02 0.94 0.50
$26.60
CF2.75-125-RT 2.75 1.61 1.25 0.50
$26.60
CF2.75-150-RT 2.75 1.61 1.50 0.50
$26.60
CF3.38-150-RT 3.38 1.52 1.44 0.63
$47.50
CF3.38-200-RT 3.38 1.02 1.94 0.63
$47.50
CF4.50-150-RT 4.50 1.52 1.44 0.71
$68.40
CF4.50-200-RT 4.50 2.02 1.94 0.71
$68.40
CF4.50-250-RT 4.50 2.52 2.44 0.71
$75.05
CF4.62-300-RT 4.62 3.02 2.94 0.69
$75.05
CF6.00-400-RT 6.00 4.02 3.94 0.79
$108.30
CF6.75-500-RT 6.75 5.02 4.88 0.84
$164.00
CF8.00-600-RT 8.00 6.02 5.92 0.87
$172.90
CF10.00-800-RT 10.00 8.02 7.89 0.98
$410.00
CF12.00-1000-RT 12.00 10.02 9.88 1.02
$675.00
!
