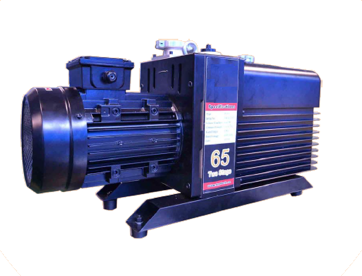

Vane Pump
Typical Vane pump is used for Vacuum smelting, packaging, distilling, refrigeration, freeze dryer, and air conditioning. High performance “Cruiser” can be used in metrology and surface analysis.
Pump features a gas ballast. Build to vigorous performance standards. “Cruiser” series is the top of the line for both quality and durability with affordable price. 100% tested before shipment.
- Characteristics:
- 2 stage direct drive motor for any voltage (see specification)
- Gas ballast to keep oil clean and remove moisture and other vapor from condensing
- Anti-suck back valve to prevent oil back-streaming
- Single phase motor is equipped with thermal protection for safety
- Large, easy-to-see sight glass ensures proper oil level
- 18 months warranty for operating under clean environment
- Optional trap and oil mist eliminator
- Extremely quiet. Virtually vibration free
- Larger oil capacity keeps the pump cooler and reduce thermal degradation
- Application:
- SEM (Scanning electron microscope)
- Vacuum oven & furnace
- Thin-film coating
- Vacuum Brazing
- Metrology and analytical
- Medical instrument
- Backing for Turbo pump

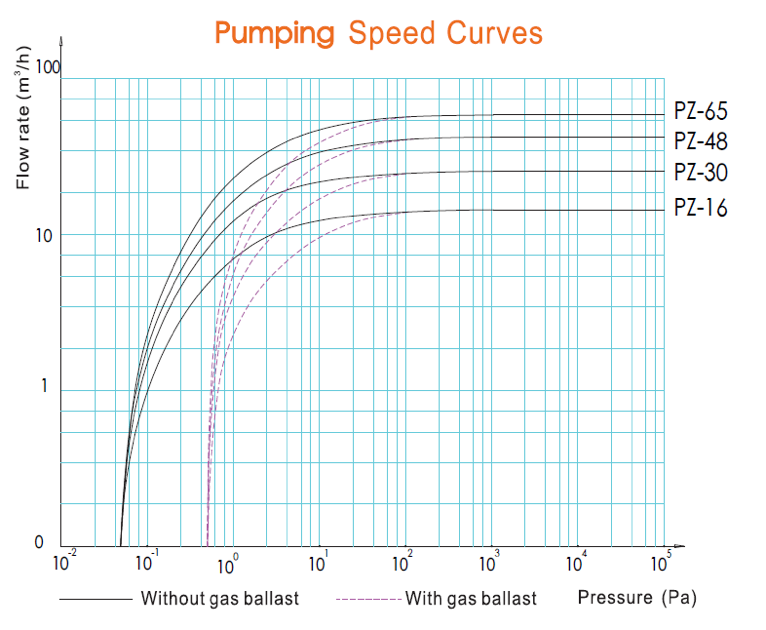

| Specification | Ult. Pressure | Pump speed | Inlet dia | Outlet dia | Power | RPM | Oil | Max. H2O | Gas ballast | Dimension | Wt. |
| Torr | cfm (l/m) | mm | mm | kw (HP) | 50/60 HZ | Liter | VP. Torr | I/II, oz/hr | Inch | Kg | |
| VP2-4 | 3 x10-4 | 2.9 (78) | KF16 | KF16 | 1440/1700 | ||||||
| VP2- 8 | 3 x10-4 | 5.5 (156) | KF16 | KF16 | 1440/1700 | 15 | 64 | ||||
| VP2-16 | 3 x10-4 | 11.3 (320) | KF25 | KF25 | 0.74/0.55 | 1440/1700 |
0.9-.5 |
17 | 71/106 | 30 | |
| VP2-24 | 3 x10-4 | 16.7 (474) | KF25 | KF25 | 1440/1700 | ||||||
| VP2-30 | 3 x10-4 | 21.2 (600) | KF25 | KF40 | 1.1 | 1440/1700 | 1.3-2.0 | 17 | 71/113 | 43 | |
| PZ 48 | 3 x10-4 | 33.9 (960) | KF40 | KF40 | 1.5 | 1440/1700 | 3.3-4.5 | 15 | 92/124 | 62 |
Accessories:
- Trap – minimize back streaming of oil vapor to vacuum chamber during power failure
- Oil Mist Eliminator – keep oil mist off the exhaust port and recirculate back to reservoir
- Angle valve – to keep pump at high vacuum when chamber is vented for service
