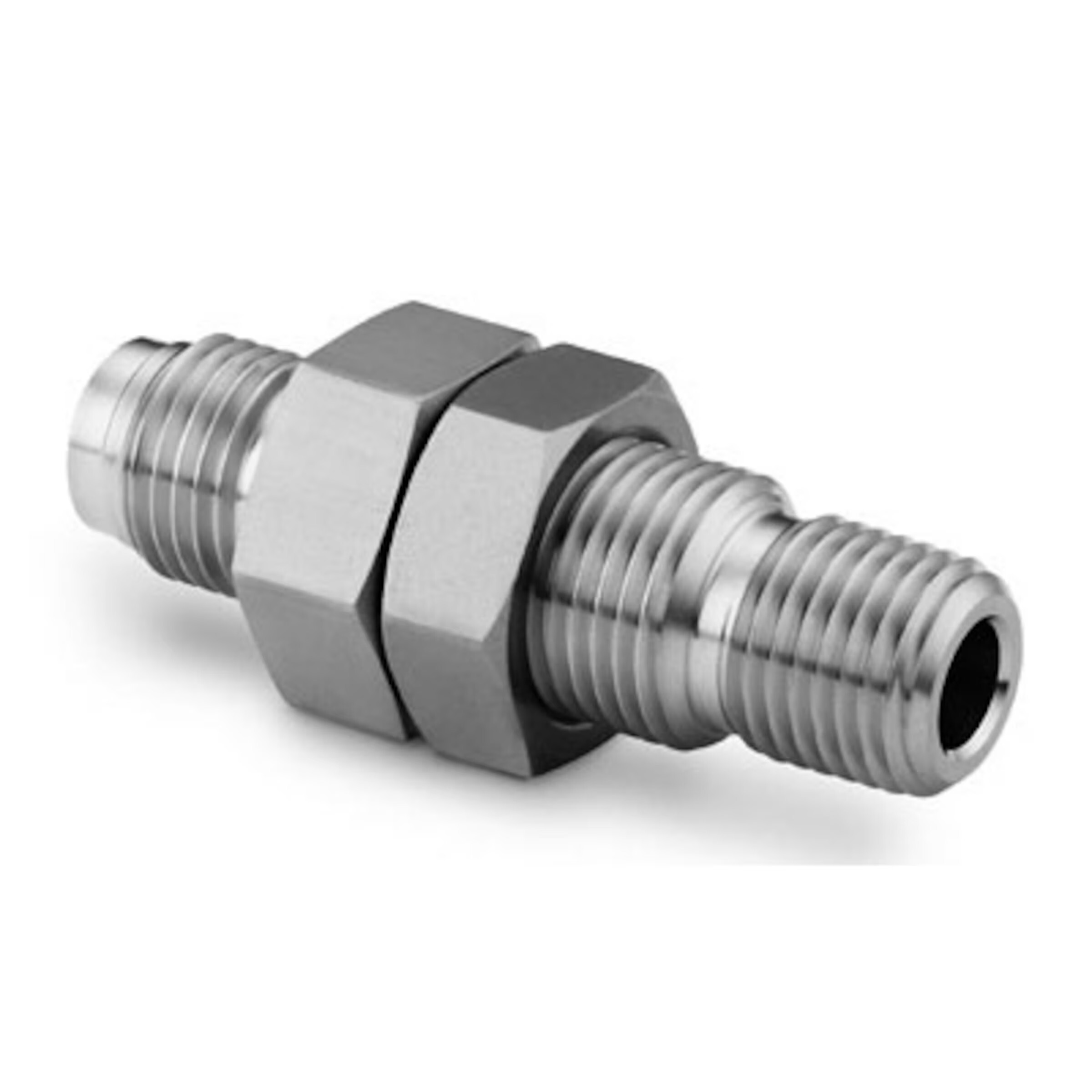

Body to Bulkhead Male Connector
| FR Body to Bulkhead Male Connector | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FR Size (in.) |
P-NPT Size |
Part Number | Dimensions, in. (mm) | Panel Hole Size in. (mm) |
Max. Panel Thickness in. (mm) |
Working Pressure, psig (bar) | ||||||
| L | Lx | E | F | Fx | 6L | CU | NI | |||||
| 1/4 | 1/4 | SS-CMB-FR4-NS4 | 2.21 (56.1) | 1.24 (31.5) | 0.28 (7.1) | 13/16 (20.6) | 13/16 (20.6) | 21/32 (16.7) | 0.38 (9.7) | 8000 (551) | 6400 (440) | 8000 (551) |
| 1/2 | 1/4 | SS-CMB-FR8-NS4 | 2.34 (59.4) | 1.24 (31.5) | 0.28 (7.1) | 15/16 (23.8) | 13/16 (20.6) | 21/32 (16.7) | 0.38 (9.7) | 4370 (301) | 2800 (192) | 3500 (241) |
Units: inch (mm) / psig (bar)
Note: Integral FR fittings must remain stationary during installation and should be used in conjunction with rotating nuts and glands.
