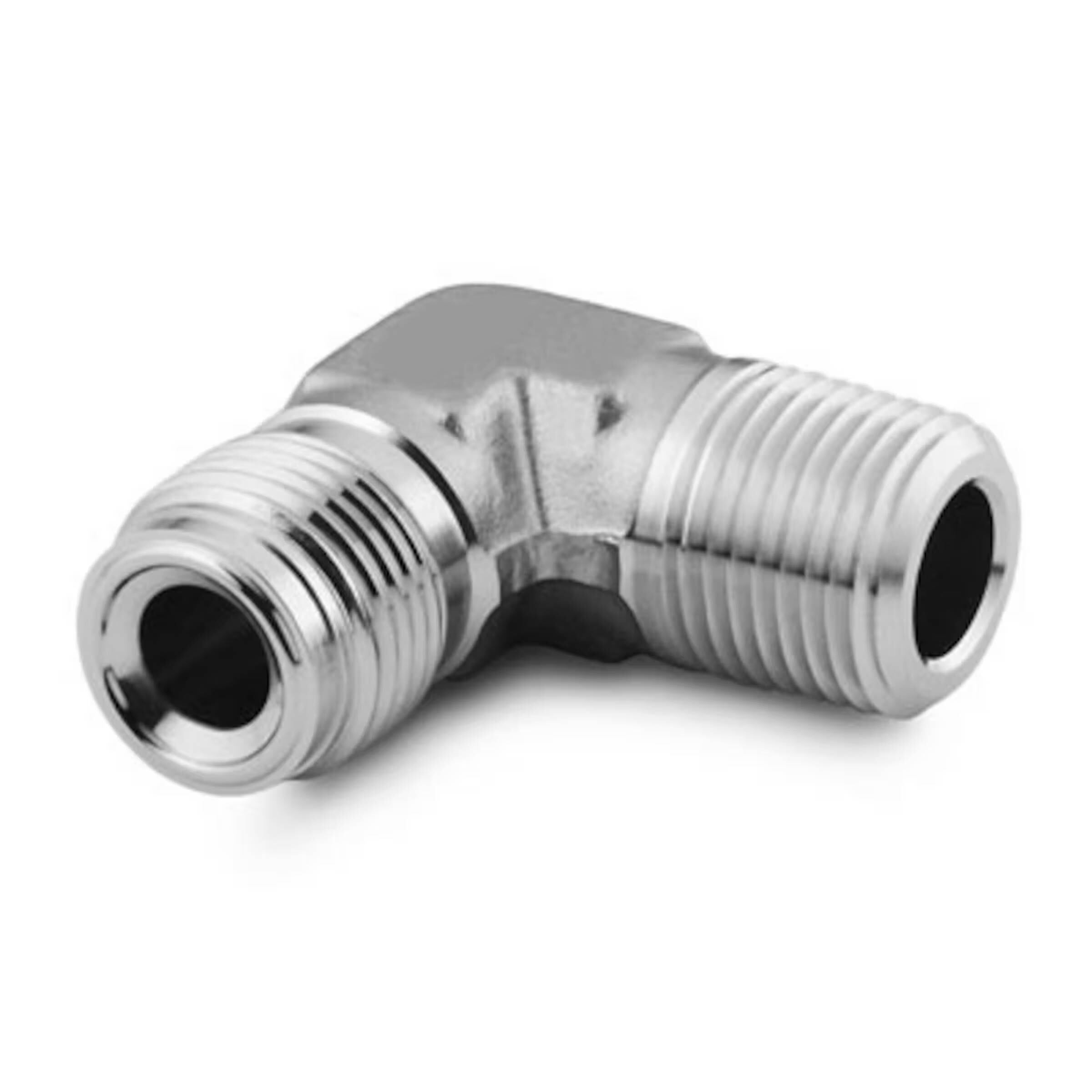

Body to Male NPT Elbow
| FR Body to Male NPT Elbow | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| FR Size (in.) |
P-NPT Size |
Part Number | Dimensions, in. (mm) | Working Pressure, psig (bar) | ||||||
| L | Lx | B | E | F | 6L | CU | NI | |||
| 1/4 | 1/8 | SS-LM-FR4-NS2 | 1.07 (27.2) | 0.87 (22.1) | 0.38 (9.6) | 0.18 (4.6) | 1/2 (12.7) | 10000 (690) | 6400 (440) | 8000 (551) |
| 1/4 | 1/4 | SS-LM-FR4-NS4 | 1.07 (27.2) | 1.05 (26.7) | 0.56 (14.2) | 0.18 (4.6) | 1/2 (12.7) | 8000 (551) | 8000 (551) | 8000 (551) |
| 1/2 | 3/8 | SS-LM-FR8-NS6 | 1.45 (36.8) | 1.26 (32.0) | 0.56 (14.2) | 0.40 (10.2) | 13/16 (20.6) | 4300 (296) | 2800 (192) | 3500 (241) |
| 1/2 | 1/2 | SS-LM-FR8-NS8 | 1.45 (36.8) | 1.45 (36.8) | 0.75 (19.1) | 0.40 (10.2) | 13/16 (20.6) | 4300 (296) | 2800 (192) | 3500 (241) |
Units: inch (mm) / psig (bar)
Note: Integral FR fittings must remain stationary during installation and should be used in conjunction with rotating nuts and glands.
