Gland to Tube Port

purchase-order Order Request Form
fr-gland-to-tube-port Male Connector - Drawing

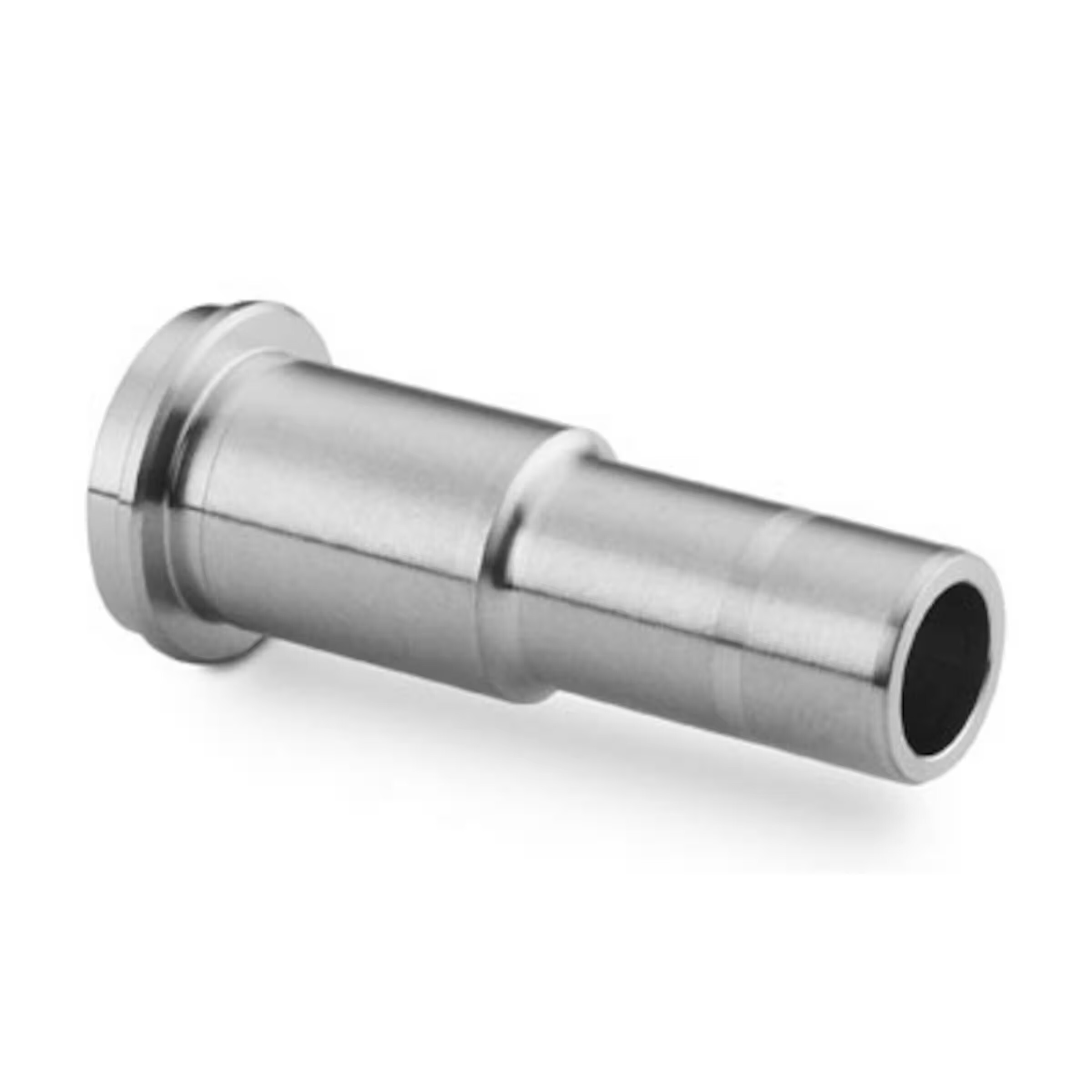

FR Gland to Tube Port
FR Size
(in.)		 T-Tube O.D.
(in.)		 Part Number Dimensions, in. (mm) Working Pressure, psig (bar)
L B E 6L CU NI
1/4 1/4 SS-G-FR4-FT4 1.62 (41.0) 0.64 (16.2) 0.17 (4.3) 10000 (690) 6400 (440) 8000 (551)
1/2 3/8 SS-G-FR8-FT6 1.81 (46.0) 0.70 (17.8) 0.27 (6.9) 4300 (296) 2800 (192) 3500 (241)
1/2 1/2 SS-G-FR8-FT8 1.94 (49.3) 0.96 (24.4) 0.37 (9.4) 4300 (296) 2800 (192) 3500 (241)

Units: inch (mm) / psig (bar), 316L VIM VAR also available.

Send us any part number for better price. Fast RFQ response guaranteed.
Call us: (510) 498-8518
Email: sales@vacproducts.com

!
