Body to Tube Fitting

purchase-order Order Request Form

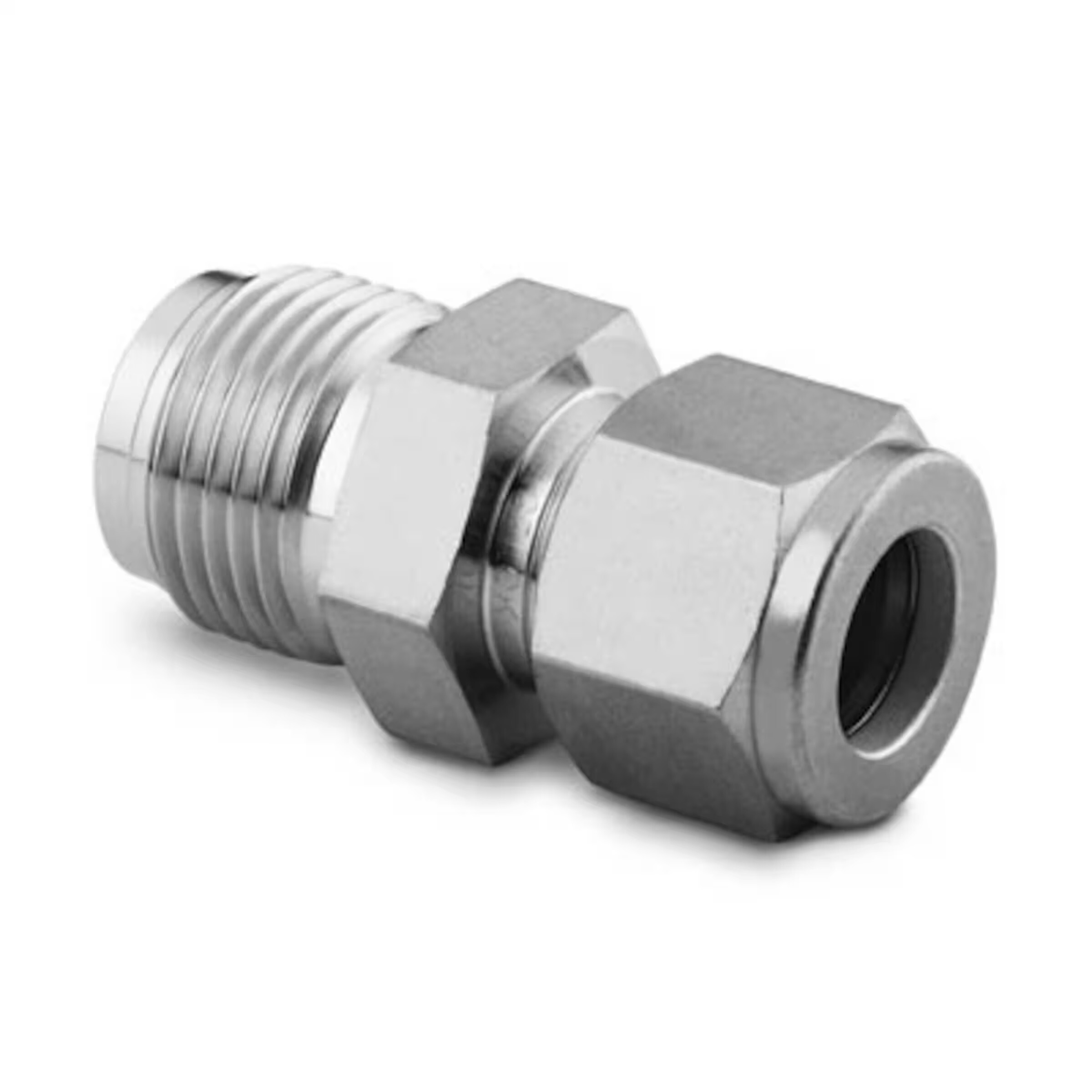

Body to Tube Fitting Body to Tube Fitting - Drawing
FR Body to Tube Fitting
FR Size
(in.)		 T-Tube
O.D.
(in.)		 Part Number Dimensions, in. (mm) Working Pressure, psig (bar)
L1 C E F 6L CU NI
1/4 1/8 SS-U-FR4-FL2 1.53 (38.9) 0.50 (12.7) 0.09 (2.3) 5/8 (15.9) 10000 (690) 6400 (440) 8000 (551)
1/4 1/4 SS-U-FR4-FL4 1.62 (41.1) 0.60 (15.2) 0.18 (4.6) 5/8 (15.9) 10000 (690) 6400 (440) 8000 (551)
1/2 3/8 SS-U-FR8-FL6 1.84 (46.7) 0.66 (16.8) 0.28 (7.1) 15/16 (23.8) 4300 (296) 2800 (192) 3500 (241)
1/2 1/2 SS-U-FR8-FL8 1.95 (49.5) 0.90 (22.9) 0.40 (10.2) 15/16 (23.8) 4300 (296) 2800 (192) 3500 (241)

Units: inch (mm) / psig (bar)

1 Dimension L is with FITOK nuts finger-tight.

Note: Integral FR fittings must remain stationary during installation and should be used in conjunction with rotating nuts and glands.
