Process Cooling Water(PCW) Sticks
Water Sticks
Water sticks are used to control cooling water for critical process equipment. Temperature is a critical element in Semiconductor processes, maintaining optimal process temp is vital for successful production. Our water sticks offer low pressure drop and accurate flow. Length of end
connection can be customized.
Features & Benefits

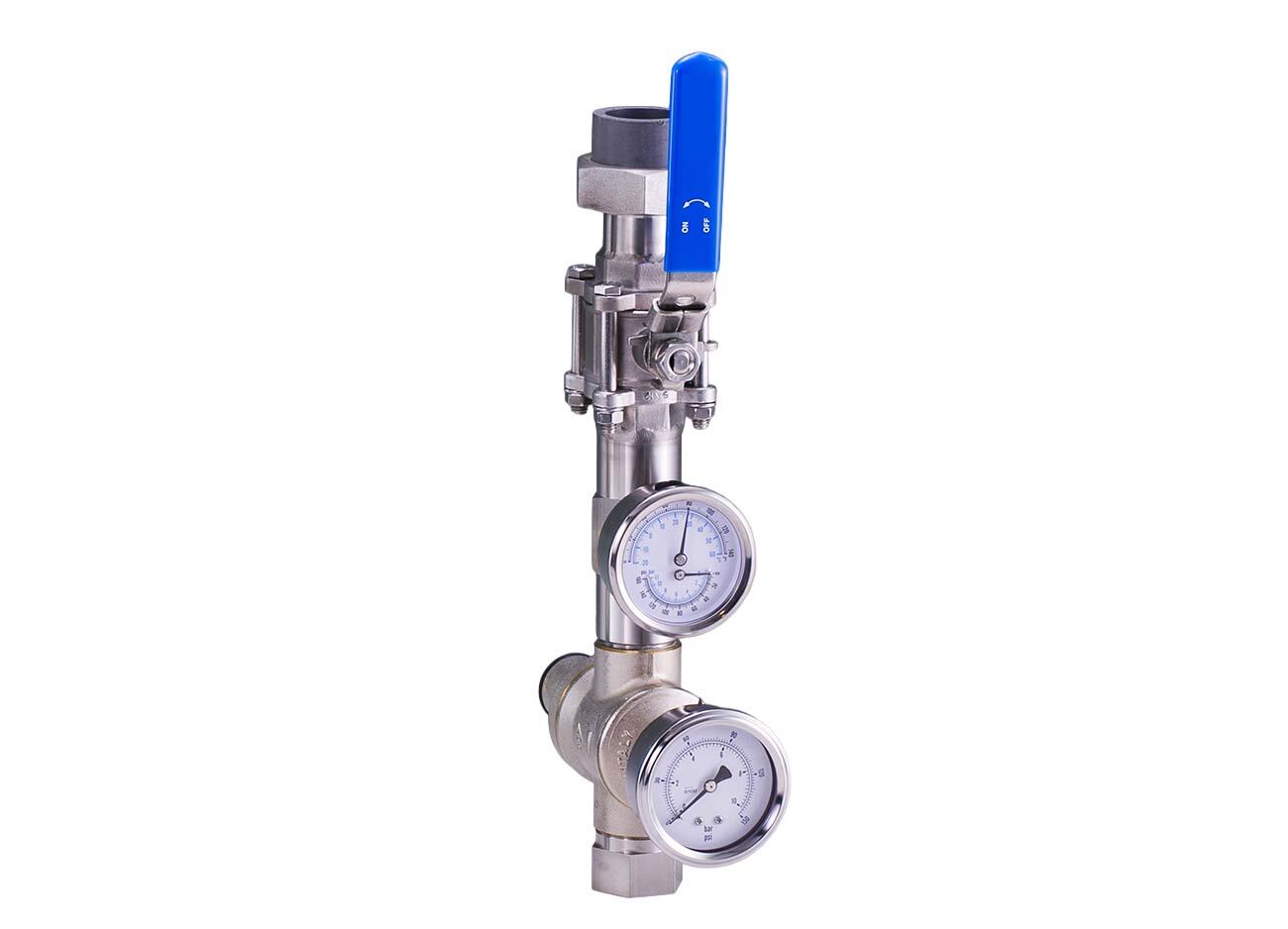

• Supply sticks: Ball Valve and Pressure Regulator for precise pressure control and shutoff
• Return sticks: high-efficiency globe valve for precise flow control and flowmeters with GPM and LPM scales.
• 100% hydrostatically leak tested
• Customize length and any end-connection flexibility
• Size: 1/2” - 2”
• End Connections: NPT/FNPT, Hose Barb, Compression, Union, PVC/CPVC

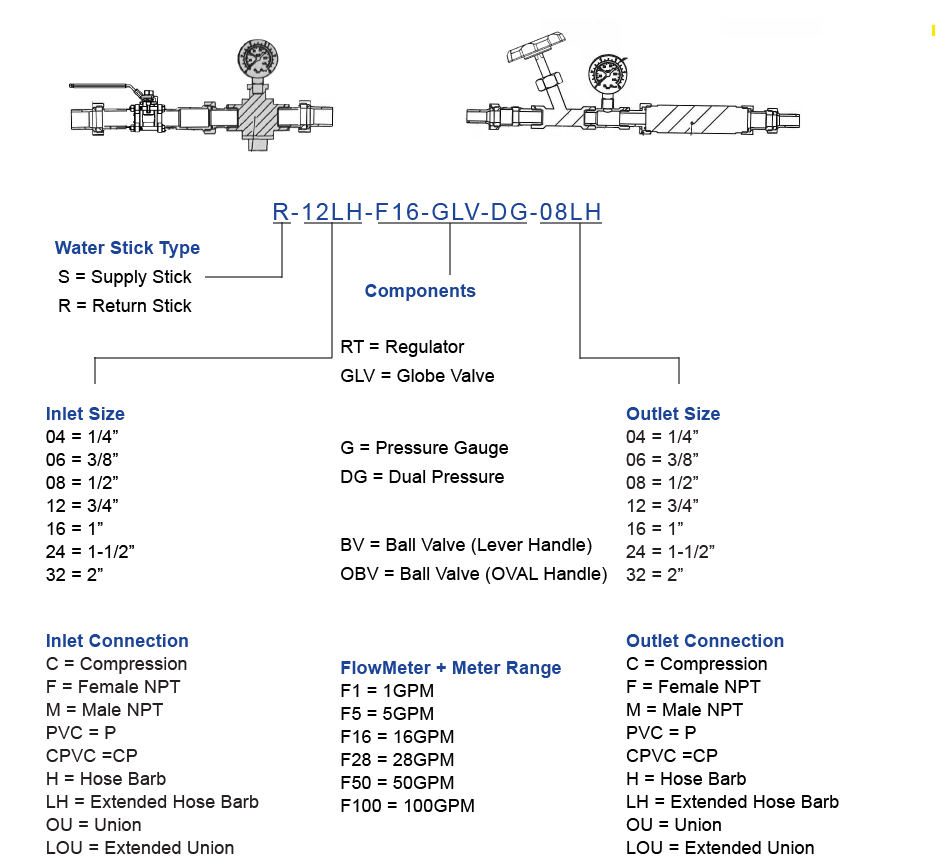

Ordering Information
