Reducing Tees

purchase-order Order Request Form

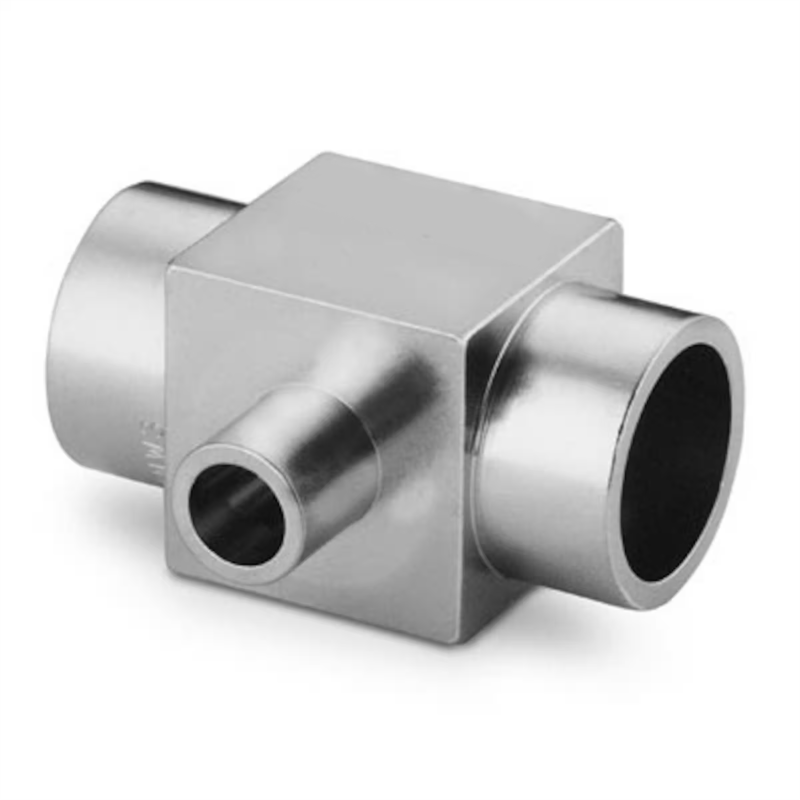

REDUCING UNION TEE REDUCING Union Tees DWG
Fractional
T-Tube
O.D.
(in.)		 t-Wall
Thickness
(in.)		 Tx-Tube
O.D.
(in.)		 tx-Wall
Thickness
(in.)		 Basic
Ordering
Number		 Dimensions, in. (mm) Working Pressure
psig (bar)
L B F
3/8 0.035 1/4 0.035 6LV-WT1-TB6-TB6-TB4 0.47 (11.9) 0.25 (6.4) 7/16 (11.1) 3300 (227)
1/2 0.049 1/4 0.035 6LV-WT1-TB8-TB8-TB4 0.53 (13.5) 0.25 (6.4) 9/16 (14.3) 3700 (254)
1/2 0.049 3/8 0.035 6LV-WT1-TB8-TB8-TB6 0.53 (13.5) 0.25 (6.4) 9/16 (14.3) 3300 (227)

Units: inch (mm) / psig (bar)
