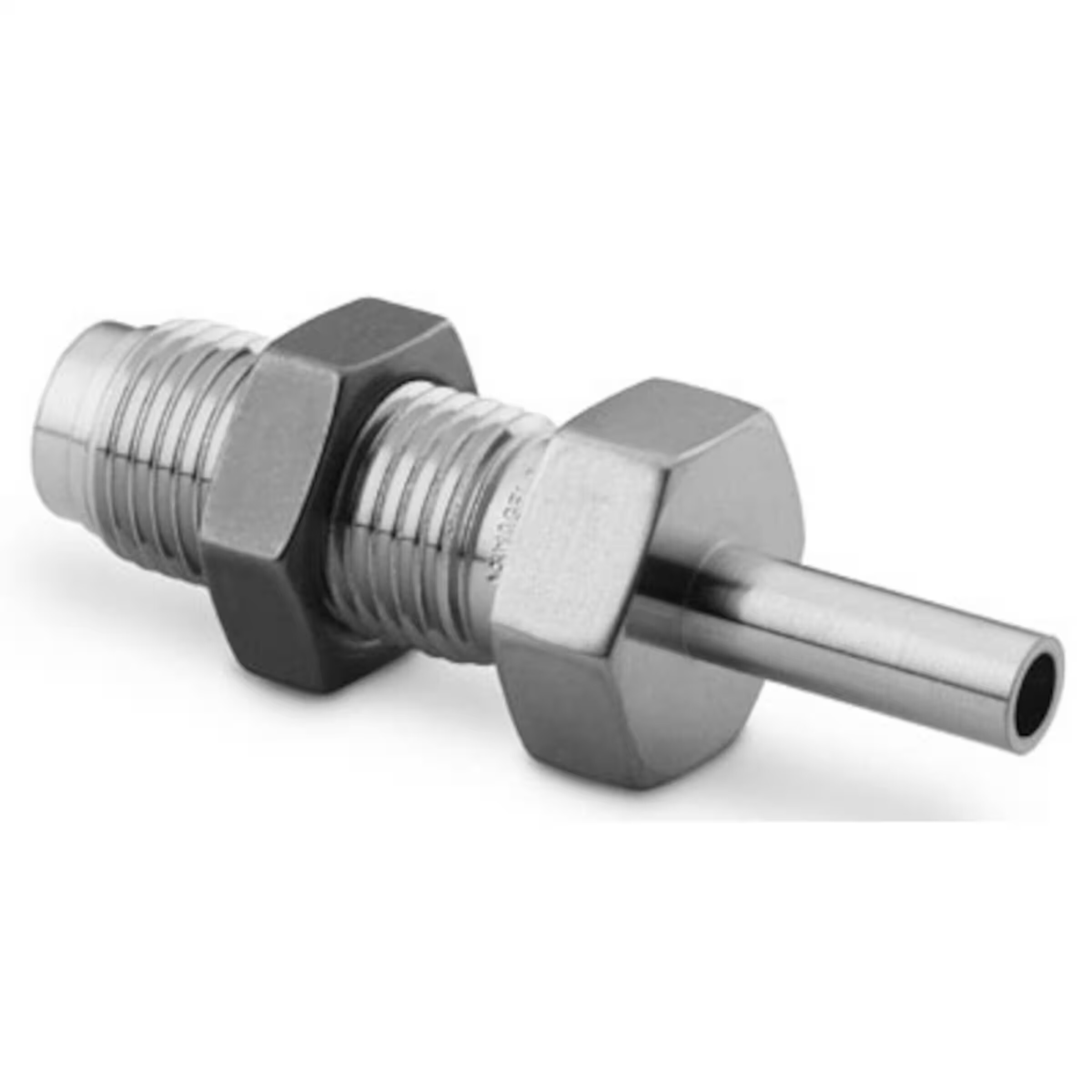

Bulkhead Body to Tube Butt Weld
| FR Bulkhead Body to Tube Butt Weld | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FR Size (in.) |
T-Tube O.D. (in.) |
T-Tube Wall Thickness (in.) |
Basic Ordering Number |
Dimensions, in. (mm) | Panel Hole Drill Size in. (mm) |
Max. Panel Thickness in. (mm) |
Working Pressure, psig (bar) | |||||||
| L | Lx | B | E | E1 | F | 6L | CU | NI | ||||||
| 1/4 | 1/4 | 0.035 | SS-BW-FR4-TB4-1.95 | 1.95 (49.5) | 0.99 (25.1) | 0.75 (19.1) | 0.18 (4.6) | 0.22 (5.6) | 0.75 (19.1) | 19/32 (15.1) | 0.13 (3.3) | 5100 (351) | 5100 (351) | 5100 (351) |
| 1/4 | 1/4 | 0.035 | SS-BW-FR4-TB4 | 2.36 (59.9) | 1.30 (33.0) | 0.75 (19.1) | 0.18 (4.6) | 0.22 (5.6) | 0.75 (19.1) | 19/32 (15.1) | 0.44 (11.2) | 5100 (351) | 5100 (351) | 5100 (351) |
Units: inch (mm) / psig (bar)
Note: Integral FR fittings must remain stationary during installation and should be used in conjunction with rotating nuts and glands.
